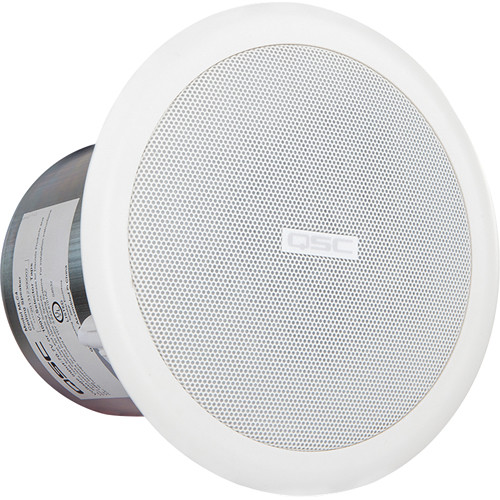

Q-SYS AC-C4T 4in Compact In-Ceiling Speaker (Pair)

Features of the 4in Compact In-Ceiling Speaker:

• High quality 4” full-range transducer provides exceptional clarity through the critical voice range.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low-saturation 70V/100V transformers with 8-ohm bypass.

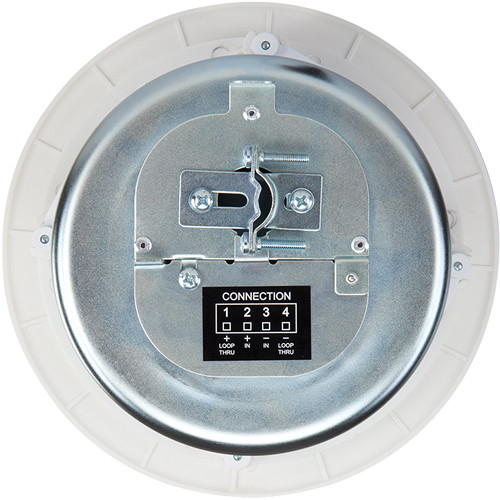

• 4-pole Euroblock connector for easy system wiring.
• Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
• White (RAL 9010) with UV inhibitors to match complementing QSC product families.
• Complete EASE, CAD, and BIM information available online

Specifications:

• Effective frequency range: 70 Hz to 16 kHz
• Rated noise power / voltage: 16 watts / 11.3 volts (rms)
• Broad-band sensitivity: 89 dB SPL
• Coverage angle (-6 dB): 140° (500 Hz to 5 kHz)
• Maximum continuous SPL: 101 dB
• Maximum peak SPL: 107 dB
• Rated impedance: 8 ohms
• Transformer taps:
• 70 V 16, 8, 4, 2, 1 watts and 8-ohm bypass
• 100V 16, 8, 4, 2, watts and 8-ohm bypass

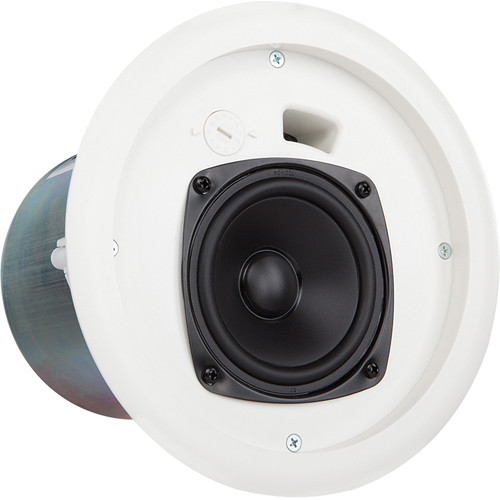

• Transducer: 4″ Polypropylene cone with butyl rubber surround
• Input connector type: Euroblock connector with parallel output terminals
• Baffle material: Painted ABS polymer
• Grille material: Powder coated steel
• Back can material: Galvanized steel
• Testing: Listed UL1480, UL2043 safe for use in air handling space
• Net weight: 4.9 lb / 2.22 kg
• Product dimensions: 8.4″ × 7.9” (214 × 201 mm)
• Cut-out Dimensions: 7.31″ (185.67mm)
• Ceiling Capture Thickness: 0.25″ to 1.5″ (6.35 to 38.1mm)
• Shipping weight: 15.1 lb / 6.86 kg
• Shipping dimensions: 10.75″ × 24″ × 10.5″ (273.1 × 609.6 × 266.7 mm)
• Included accessories: Rails and C-ring for ceiling tile installation
