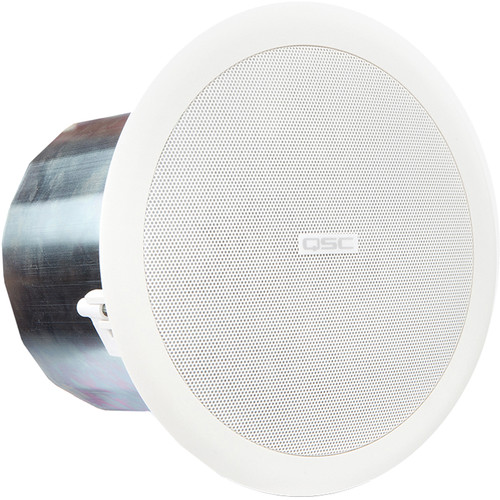

Q-SYS AC-C6T 6in Compact In-Ceiling Speaker (Pair)

Features of the 6in Compact In-Ceiling Speaker:

• High quality 6” 2-way system provides exceptional clarity through the critical voice range.
• Low-saturation 70V/100V transformers with 8-ohm bypass.

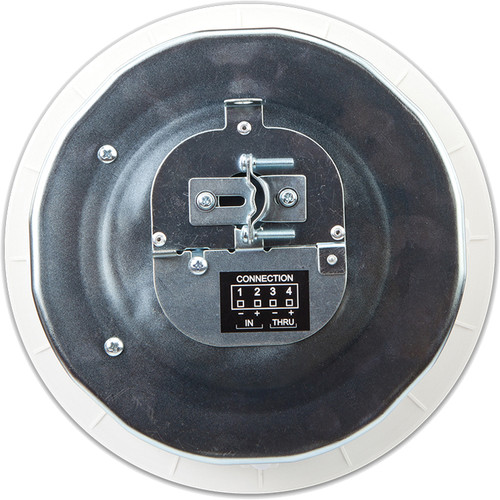

• 4-pole Euroblock connector for easy system wiring.
• Advanced voicing filter sets using QSC Intrinsic Correction™ are available through either Q-SYS processing or CXD amplifier platforms.
• White (RAL 9010) with UV inhibitors to match complementing QSC product families.
• Complete EASE, CAD, and BIM information available online.

Specifications:

• Effective frequency range: 65 Hz to 20 kHz
• Rated noise power / voltage: 30 watts / 15.5 volts (rms)
• Broad-band sensitivity: 89 dB SPL
• Coverage angle (-6 dB): 110° (500 Hz to 5 kHz)
• Maximum continuous SPL: 104 dB
• Maximum peak SPL: 110 dB
• Rated impedance: 8 ohms
• Transformer taps:
• 70 V: 30, 15, 7.5, 3.7, 1.9 watts and 8-ohm bypass
• 100V: 30, 15, 7.5, 3.8, watts and 8-ohm bypass

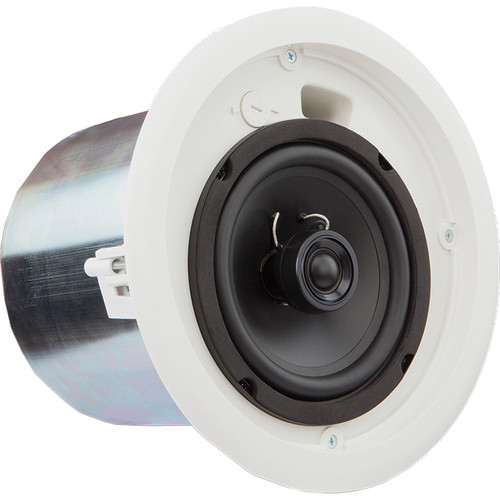

• HF Transducer: .86″ silk dome tweeter, coaxially mounted
• LF Transducer: 6″ Polypropylene cone with butyl rubber surround
• Input connector type: Euroblock connector with parallel output terminals
• Baffle material: Painted ABS polymer
• Grille material: Powder coated steel
• Back can material: Galvanized steel
• Testing: Listed UL1480, UL2043 safe for use in air handling space
• Net weight: 7.6 lb / 3.5 kg
• Product dimensions: 10.24″ × 8.4” (260 × 213 mm)
• Cut-out Dimensions: 9″ (229 mm)
• Ceiling Capture Thickness: 0.25″ to 1.5″ (6.35 to 38.1mm)
• Shipping weight: 21 lb / 9.5 kg pair packed
• Shipping dimensions: 24.5″ × 12.5″ × 12.8″ (622 × 318 × 324 mm)
• Included accessories: Rails and C-ring for ceiling tile installation
