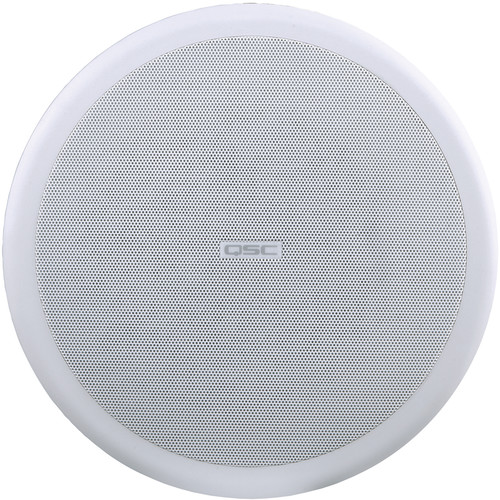

Q-SYS AC-C8T 8in Compact In-Ceiling Speaker (Pair)

The white AcousticCoverage Series QSC AC-C8T is a pair of transformer-equipped 8โ€ณ ceiling loudspeakers voiced to deliver enhanced clarity in the vocal range, making them suitable for 70/100V or 8-ohm operation in a variety of paging, A/V conferencing, and background music applications.

$771.00
UPC: 684284067319UPC: 684284067319 Brand:

Features of the 8in Compact In-Ceiling Speaker:

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 52 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Advanced voicing via QSC Intrinsic Correctionโ„ข, applied using the Q-SYS networking platform or CXD Series Amplifiers.
  • White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
  • Complete EASE, CF2, CAD, & BIM information available online.

Specifications:

  • Effective frequency range: 52 Hz โ€“ 20 kHz
  • Rated noise power / voltage: 80 watts / 25.3 volts (rms)
  • Broad-band sensitivity: 89 dB SPL
  • Coverage angle (-6 dB): 100ยฐ (500 Hz to 5 kHz)
  • Maximum continuous SPL: 108 dB
  • Maximum peak SPL: 114 dB
  • Rated impedance: 8 ohms
  • Transformer taps:
  • 70 V: 60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
  • 100V: 60, 30, 15, 7.5 watts and 8-ohm bypass
  • HF Transducer: 22 mm [.86 in] silk dome tweeter, coaxially mounted
  • LF Transducer: 210 mm [8 in] Polypropylene cone with butyl rubber surround
  • Input connector type: Euroblock connector with parallel output terminals
  • Baffle material: Painted ABS polymer
  • Grille material: Painted steel
  • Back can material: Plated steel
  • Testing: Listed UL1480, UL2043 safe for use in air handling space
  • Net weight: 5.2 kg [11.5 lb]
  • Product dimensions: ร˜316 x 288 mm [ร˜12.4 x 11.3 in]
  • Cut-out Dimensions: ร˜285 mm [ร˜11.2 in]
  • Ceiling Capture Thickness: 6 โ€“ 38 mm [0.25 โ€“ 1.5 in]
  • Shipping weight: 13.3 kg [29.3 lb] (pair packed)
  • Shipping dimensions: 743 x 381 x 381 mm [29.3 x 15 x 15 in]
  • Included accessories: Rails & C-ring for ceiling tile installation
