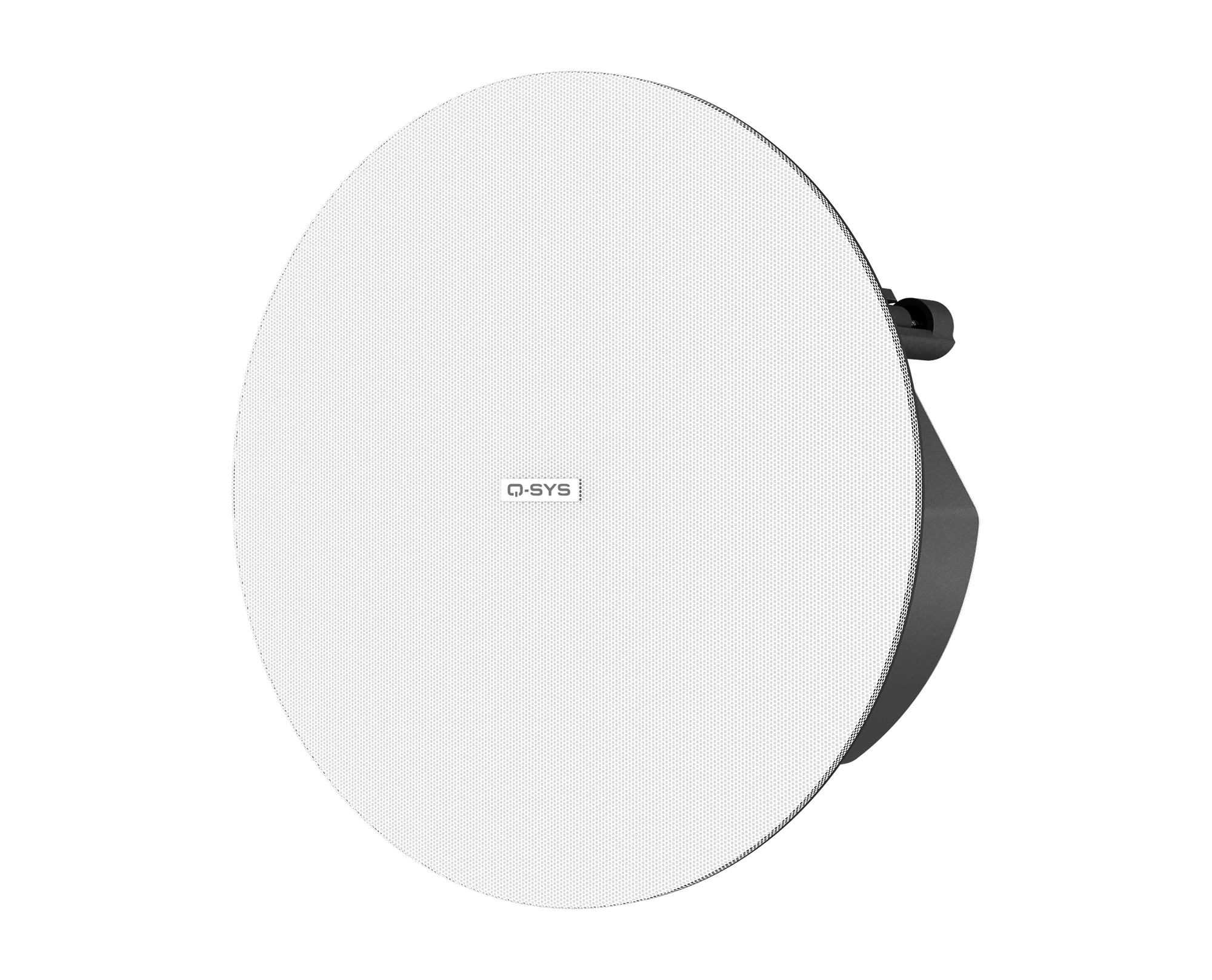

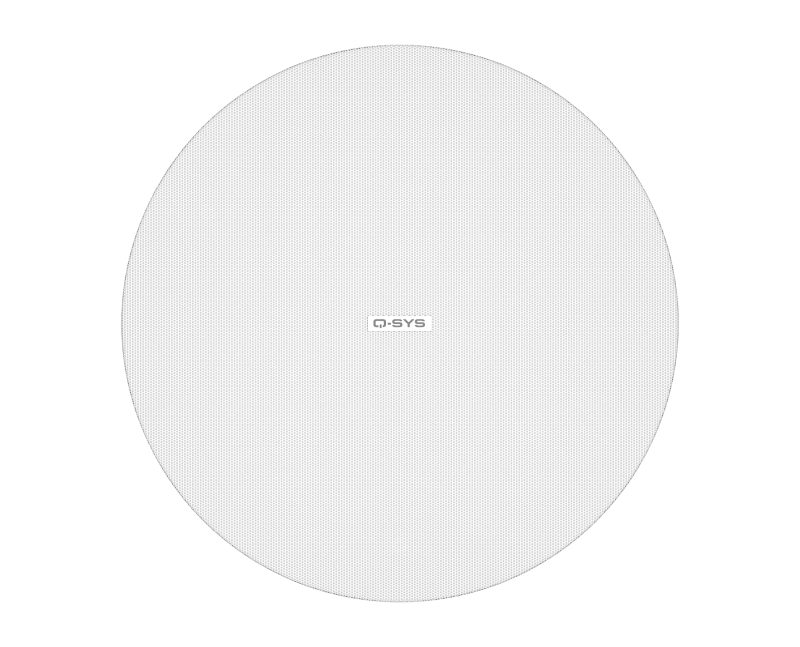

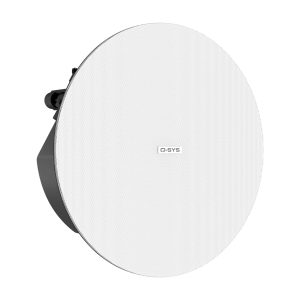

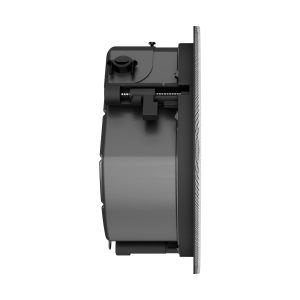

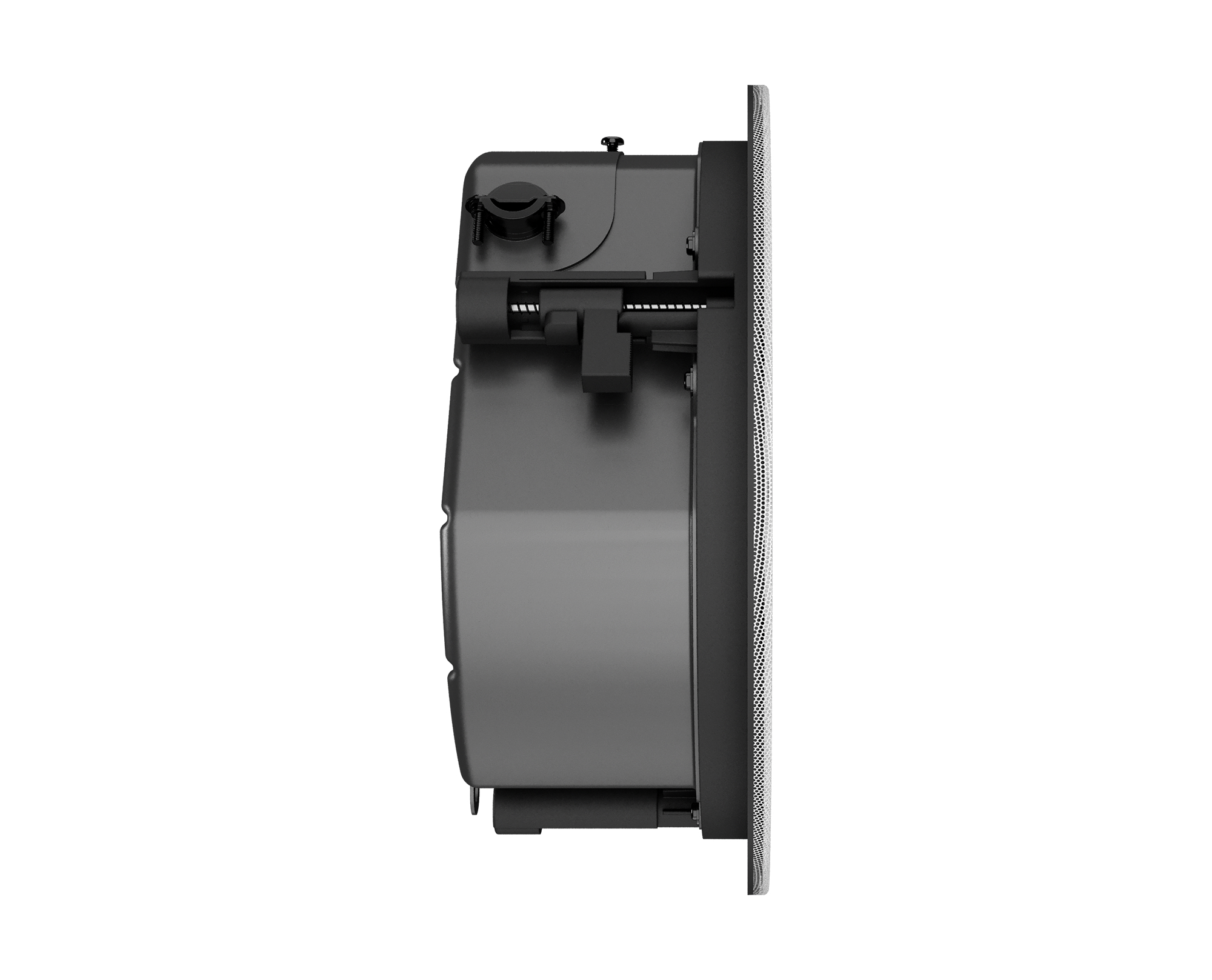

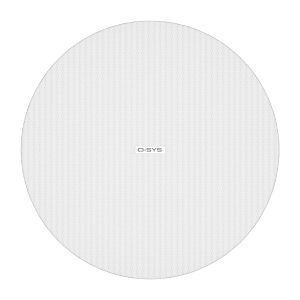

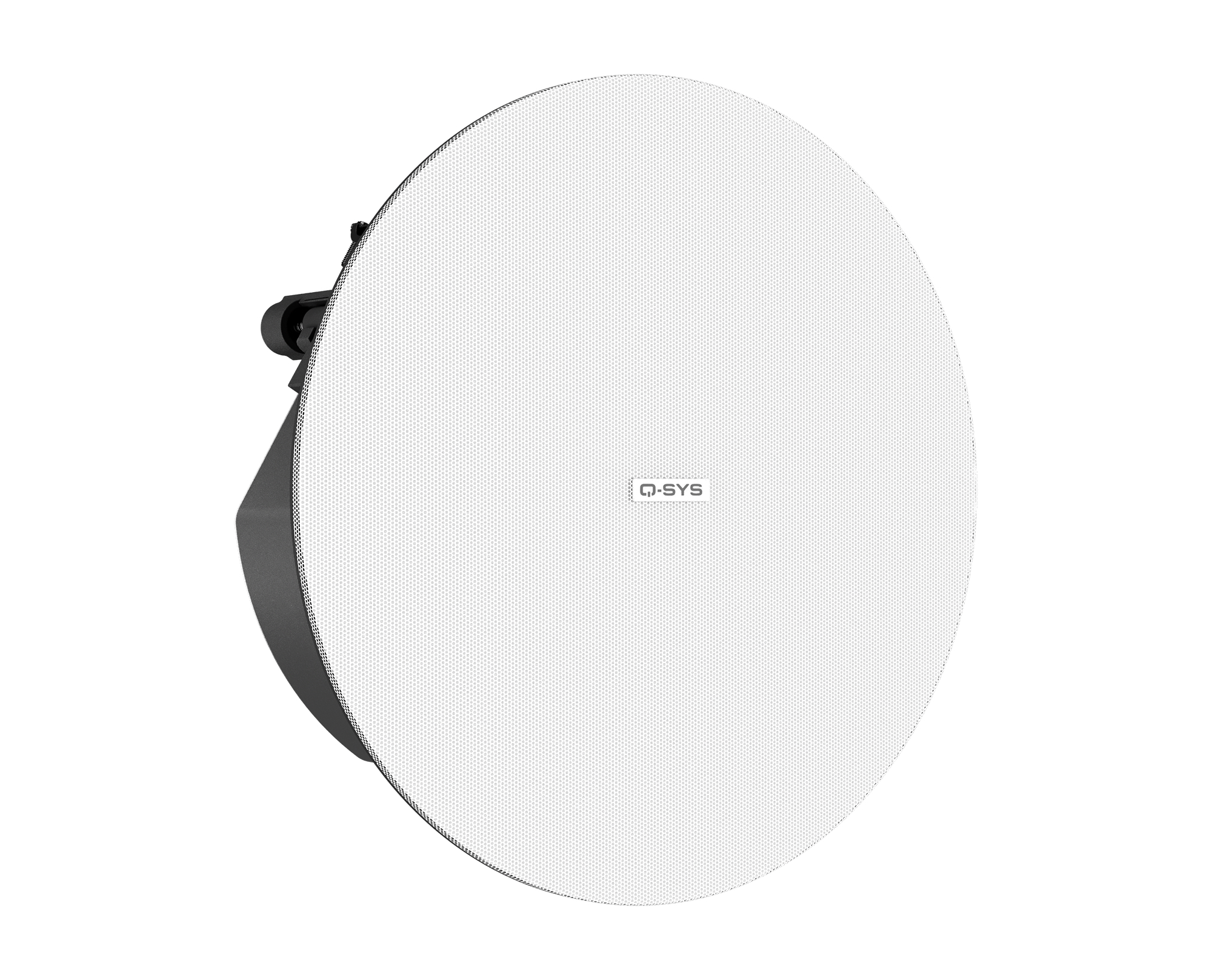

Q-SYS AcousticDesign 4.5″ Low Profile Ceiling Speaker w/ Zero Bezel – Pair

Features of the 4.5″ Low Profile Ceiling Speaker:

• Zero bezel design for the needs of modern applications
• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area
• Snap-fit magnetic grille
• 3x double stepped, long travel dog-ear blind mount system
• Intrinsic Correction voicings available via the Q-SYS Platform including CX-Q amplifiers
• Blemish-free removable logo
• Removable conduit cover plate, also available as accessory for pre-install wiring
• UL1480 and UL2043 certified
• Available in white (RAL 9003), with black grille accessory sold separately
• Complete EASE, CF2, CAD, & BIM information available online

Specifications:

• Effective frequency range – 70 Hz – 20 kHz
• Rated noise power / voltage – 30 watts / 22 volts (rms)
• Sensitivity [dB] – 87
• Sensitivity at 4m, 100V maximum tap – TBD

​

• Rated coverage (-6 dB) – 150° conical DMT
• Directivity factor (Q) – 4.5
• Directivity index (DI) [dB] – 6.5
• Maximum continuous SPL [dB] – 102
• Maximum peak SPL [dB] – 108
• Nominal impedance [ohms] – 16
• Recommended amplifier – 60 watts
• Transformer taps / impedance
• 16Ω (in bypass setting)
• 3.75W (70V); 7.5W (100V) Tap: 1333Ω
• 7.5W (70V); 15W (100V) Tap: 667Ω
• 15W (70V); 30W (100V) Tap: 333Ω
• 30W (70V); N/A (100V) Tap: 167Ω
• LF transducer – 114 mm [4.5-inch] weather resistant paper cone woofer
• HF transducer – 19 mm [0.75-inch] aluminum dome tweeter
• Input connector type – Euroblock connector with parallel output
• Enclosure material – ABS baffle on powder coated steel back can
• Grille material – Powder coated steel
• Ingress protection – IP-34
• Operating environment – Designed for indoor use
• Operating temperature range – -20 to 50° C [-4 to 122° F]
• Cutout dimension – Ø 245 mm [Ø 9.65-inch]
• Net weight – 3 kg [6.6 lb]
• Product dimensions (Diameter x Height) – Ø 280 x 100 mm [Ø 11.02 x 3.93-inch]
• Included accessories – C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille
