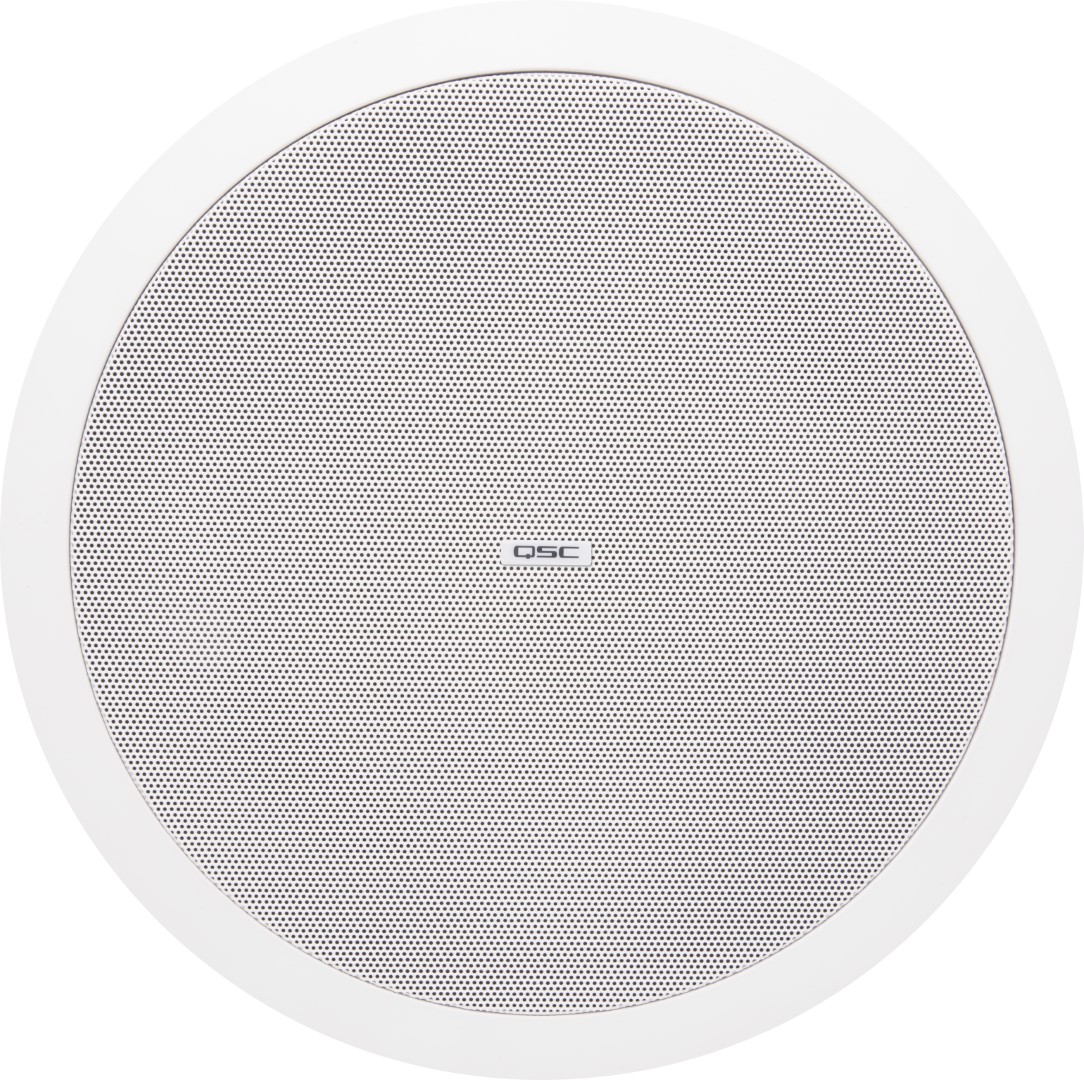

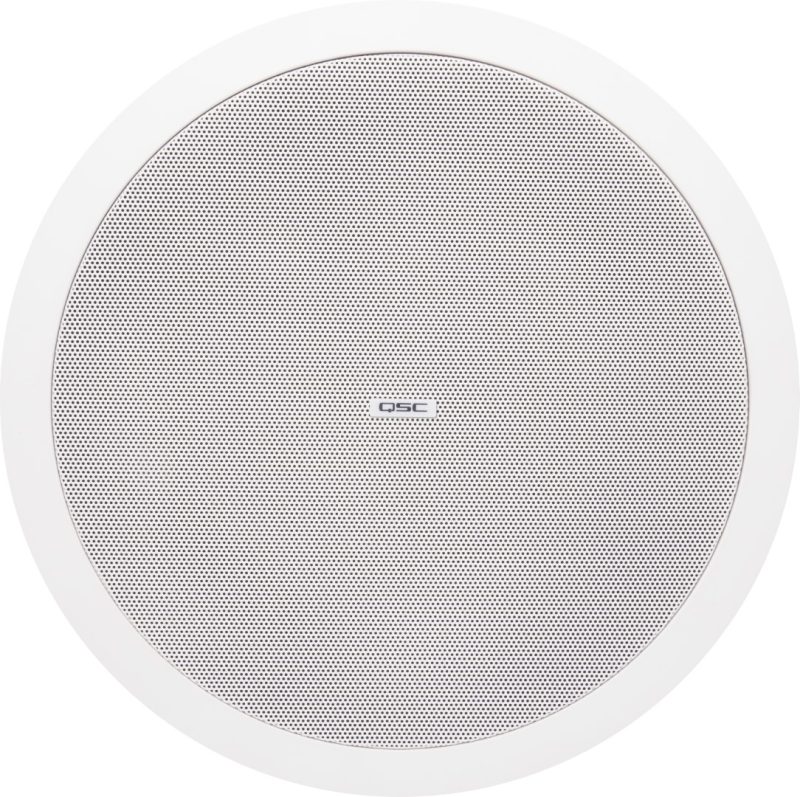

Q-SYS AD-C.SUB 6.5in Ceiling Subwoofer (Each) – White

Features of the 6.5in Ceiling Subwoofer:

• Inverted aluminum dome dust cap
• Dual voice-coil for improved thermal dissipation and higher output
• Low saturation and low-loss 70 / 100 V transformers with 4 Ω bypass
• 4x built-in high-pass filtered outputs
• Snap-fit magnetic grills
• Locking 4-pole Euroblock connectors
• Removable conduit cover plate
• 4x double stepped, long travel dog-ear blind mount system
• Intrinsic Correction™ voicings available via MP-M Series mixers and Q-SYS Platform, including the CXD-Q Series amplifiers
• Available in black (RAL 9011) or white (RAL 9010)
• UL1480 and UL2043 certified

Specifications:

• LF transducer 6.5-inch (165 mm) dual voice-coil weather treated paper cone woofer
• HF transducer N/A
• Effective frequency range 45 Hz – 150 Hz
• Rated noise power / voltage 100 W / 20 V (rms)
• Sensitivity [dB] (rated @ 1 W, 1 m) 86
• Coverage (‐6 dB) Omni
• Maximum SPL [dB] (continuous / peak) 100 / 106
• Recommended amplifier 100 W
• Transformer taps / impedance
• Bypass: 4 Ω
• 100 W (70 V); NA (100 V) Tap: 50 Ω
• 50 W (70 V); 100 W (100 V) Tap: 100 Ω
• 25 W (70 V); 50 W (100 V) Tap: 200 Ω
• 12.5 W (70 V); 25 W (100 V) Tap: 400 Ω
• Connectors:
• Mono input: 4-pole Euroblock with thru output
• Hi-pass mono output: 2x 4-pole Euroblock for 4x satellites
• Enclosure material ABS baffle on powder coated steel back can
• Grill material Powder coated steel
• Ingress protection IP-34
• Operating environment Designed for indoor use
• Operating temperature range -4 to 122° F (-20 to 50° C)
• Net weight 19.2 lb (8.7 kg)
• Product dimensions (Ø x H) Ø 13.4 x 10-inch (Ø 340 x 254 mm)
• Included accessories C-ring and tile rails, rail screws, 3x Euroblock connector, cut-out template, grill
• Safety agency:
• UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, CE compliant.
• Baffle meets UL94-V0 and UL94-5VB flamibility rating; in accordance with IEC60849 / EN60849 systems.
