Q-SYS Axon C1 Wall Controller

NEW

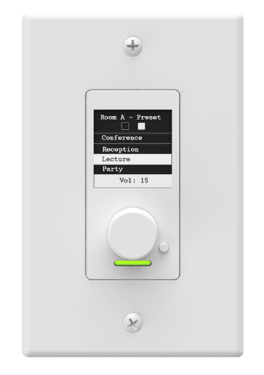

Q-SYS Axon C1 Wall Controller

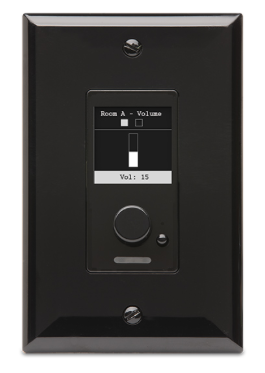

Q-SYS Axon C1 Wall Controller - Image 2

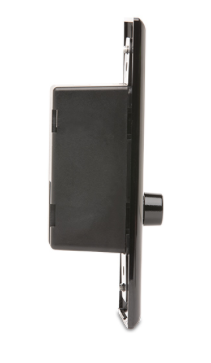

Q-SYS Axon C1 Wall Controller - Image 3
  1. Q-SYS Axon C1 Wall Controller
  2. Q-SYS Axon C1 Wall Controller - Image 2
  3. Q-SYS Axon C1 Wall Controller - Image 3

The Axon C1 is an assignable IP-based control solution for networked AV systems. It features a single-gang, Decora-style in-wall design with an OLED display and rotary encoder, providing simple control of volume, mute, and preset recall.

$1,313.00
Tags: Category: SKU: AXON-C1
Brand:

Features of the Wall Controller:

  • Ethernet-based control solution for Q-SYS and other third-party AV products supporting UDP, TCP/IP control
  • Available Q-SYS Extension for control mapping – no programming required
  • Menu customization with unIFY Control Panel software
  • High-contrast OLED display provides easy-to-read menus and status
  • Intuitive controls facilitate simple user experience over assigned AV system functions
  • Assignable LED light bar provides optional feedback for zone level and system state
  • Includes black and white inserts and decora wall plates

Specifications:

  • Description: Single-gang networked audio controller
  • Display: High-contrast OLED
  • Control Interface: Rotary encoder with push-button functionality
  • Network Connectivity: 10/100 Mbps Ethernet, IEEE 802.3af PoE
  • Mounting: Single-gang, Decora-style in-wall mount
  • Dimensions (H x W x D): 4.1 x 1.8 x 1.4 inches (104 x 46 x 36 mm)
  • Weight: 0.3 lbs (0.14 kg)
  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Compliance: FCC Part 15 Class A, CE, RoHS
