Q-SYS Axon D2i Dante & AES67 Analog Input Wallplate w/ PoE

Features of the Input Wallplate:

• Two balanced mic/line inputs on 3-pin XLR connectors with combination ¼” TRS connectors
• +48 V phantom power for condenser microphones
• Integrated Axiom port for connecting Axiom wallplates, including RS-232 control pass-through
• Power over Ethernet (PoE) compliant with IEEE 802.3af
• Available Q-SYS Extension for simplified integration without programming
• Dante Domain Manager ready

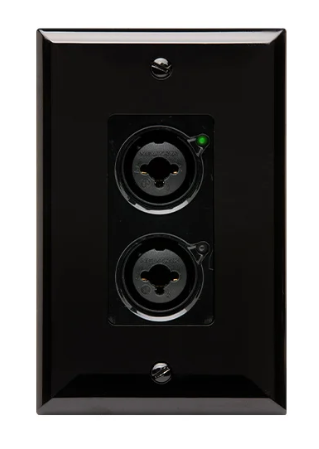

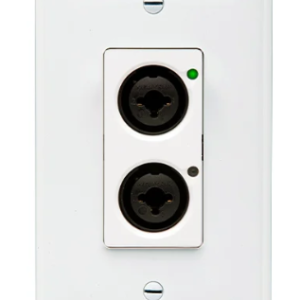

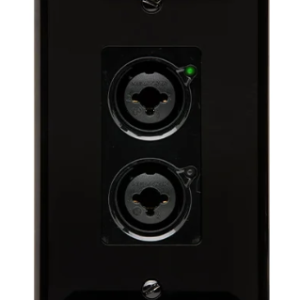

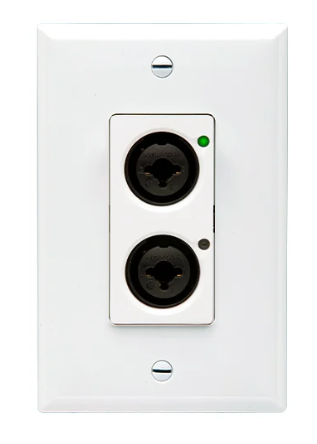

• Includes both black and white Decora faceplates and fascia inserts

Specifications:

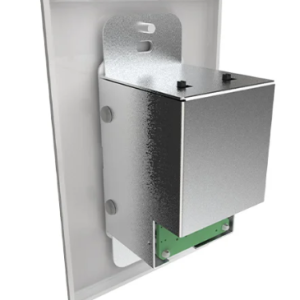

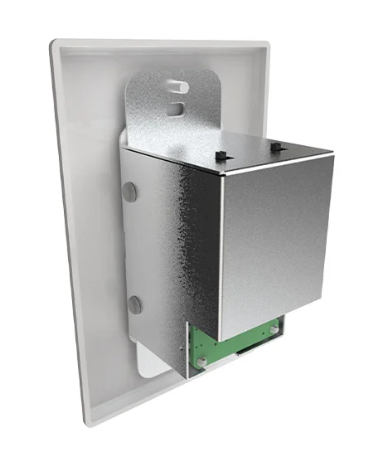

• Description Single-gang Dante/AES67 network audio I/O wallplate
• Audio Inputs: Two balanced mic/line inputs on combination XLR/TRS connectors
• Gain: XLR (mic level): -8 dB to +34 dB, 1 dB steps; TRS (line level): fixed 16 dB pad accommodating up to +24 dBu input levels
• Frequency Response: 20 Hz to 20 kHz, ±1 dB at all attenuation settings
• Phantom Power: +48 V DC, software selectable
• Axiom Port: Supports analog audio, RS-232 control, and 24 V DC power; connector: 8P8C
• Network: RJ-45 connector; 100 Mbps Ethernet; supports Dante and AES67 protocols
• Power: Power over Ethernet (PoE), IEEE 802.3af Class 0
• Dimensions (H x W x D): 4.1 x 1.8 x 1.4 inches (104 x 46 x 36 mm)
• Weight: 0.3 lbs (0.14 kg)
• Operating Temperature: 32° to 104° F (0° to 40° C)
• Compliance: FCC Part 15 Class A, CE, RoHS
