Q-SYS AXPIO 2-Channel Analog Expander for Axiom Wallplates

Features of the 2-Channel Analog Expander:

• Two balanced line-level Flex I/O ports supporting 2×0, 1×1, or 0x2 audio extension configurations
• Supports up to +24 dBu analog audio signal levels on inputs and outputs
• RS-232 port for control system integration, extending control to supported Axiom products
• Compact design suitable for rack shelves or flat surface mounting
• LED indicator for power status monitoring

Specifications:

• Description: Analog audio input/output extender with RS-232 control

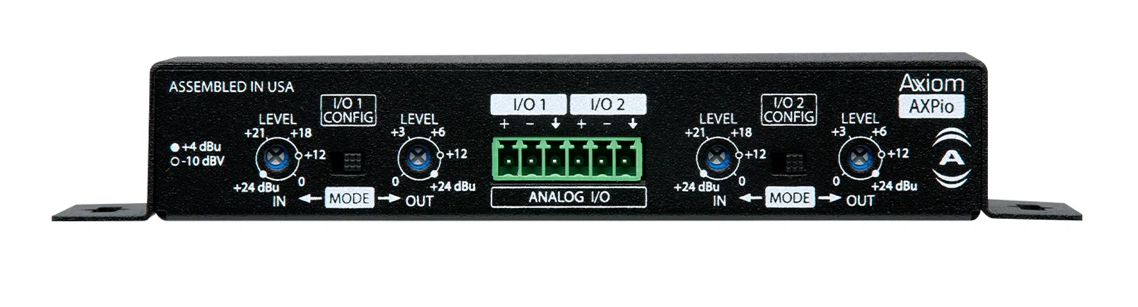

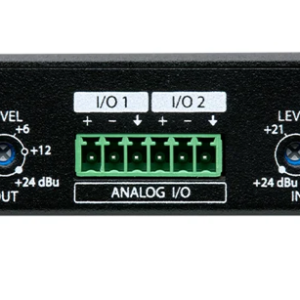

• Audio Inputs/Outputs: Two balanced line-level Flex I/O on 3.81 mm depluggable terminal block connectors
• Input Gain: -4 dB to +20 dB
• Output Gain: 0 dB to +24 dBu
• Maximum Input Level: +24 dBu
• Maximum Output Level: +24 dBu

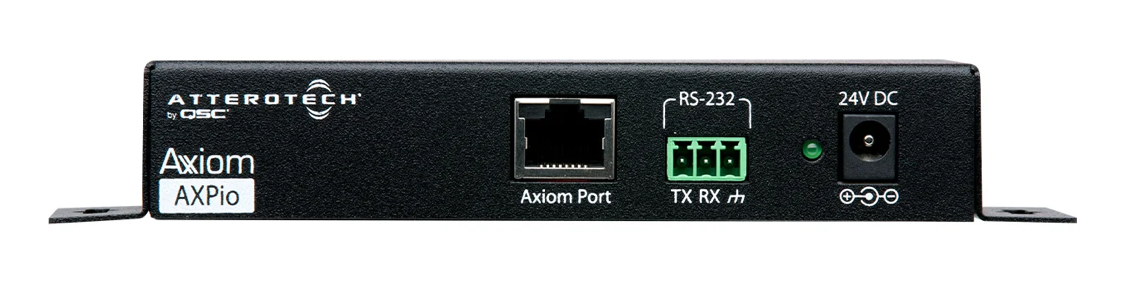

• Axiom Port: Supports analog audio, RS-232 control, and 24 V DC power via 8P8C connector
• Power Requirements: +24 VDC @ 100 mA
• Dimensions (H x W x D): 2 x 10 x 5 inches (51 x 254 x 127 mm)
• Weight: 0.8 lbs (0.4 kg)
