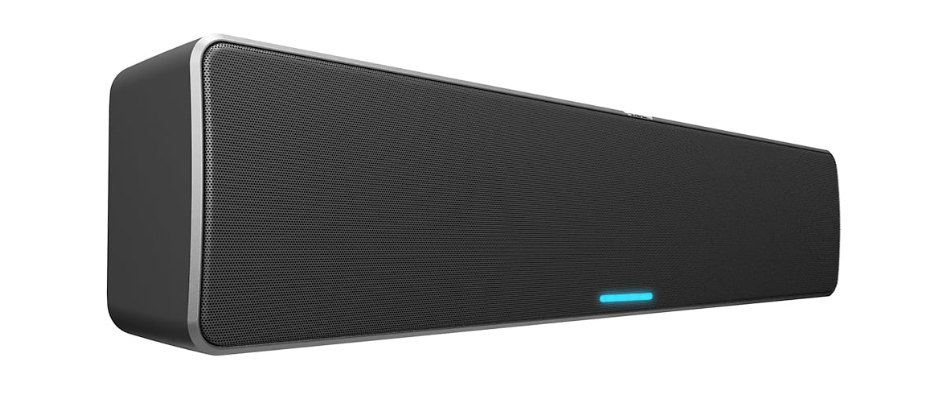

Q-SYS NL-SB42 Network PoE Soundbar

Features of the NL-SB42 Soundbar:

• Two-way design with a 3.5-inch woofer and a 0.75-inch tweeter
• Power over Ethernet (PoE) enables power, audio, and control over a single cable
• Supports both horizontal and vertical mounting orientations
• Programmable RGB light bar for status indication
• Consistent tonal characteristics across the NL Series for flexible deployment
• Seamless integration and management via Q-SYS Designer Software and Q-SYS Reflect Enterprise Manager
• Intrinsic Correction™ voicings applied automatically by Q-SYS to simplify tuning

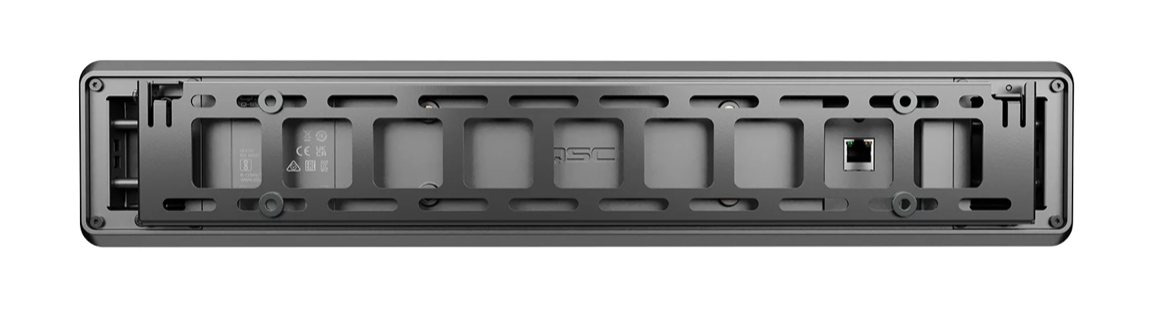

• Includes a quick-install wall bracket with 3 cm of fine adjustment for easy installation
• Optional rubber feet available for shelf, table, or credenza mounting

Specifications:

• Loudspeaker Type: Network PoE soundbar for Q-SYS
• LF Transducer: 3.5-inch (88.9 mm) paper cone woofer
• HF Transducer: 0.75-inch (19.05 mm) silk dome tweeter
• Effective Frequency Range: 110 Hz to 20 kHz
• Rated Noise Power: 12 W (PoE), 24 W (PoE+)
• Rated Coverage (-6 dB): 150° horizontal, 160° vertical (1 kHz – 10 kHz)
• Directivity Factor (Q): 2.7
• Directivity Index (DI): 4.2 dB
• Maximum Continuous SPL: 90 dB (PoE), 93 dB (PoE+)
• Maximum Peak SPL: 106 dB (PoE), 107 dB (PoE+)
• Input Connector Type: RJ45
• Enclosure Material: ABS
• Grille Material: Powder-coated steel
• Dimensions (H x W x D): 3.97 x 20.4 x 2.87 inches (101 x 518 x 73 mm)
• Net Weight: 3.86 lbs (1.75 kg)
• Operating Environment: Designed for indoor use
• Operating Temperature Range: 10° to 40° C
