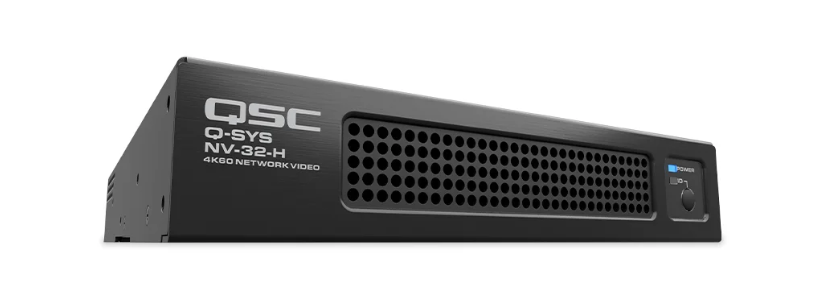

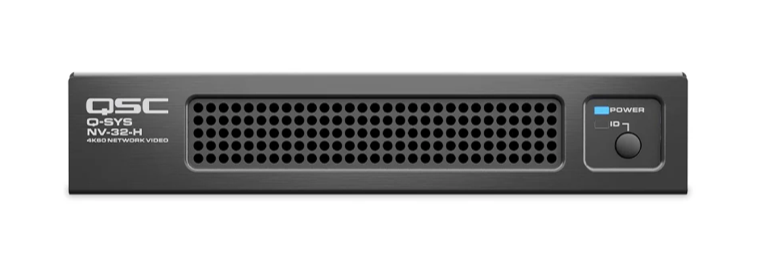

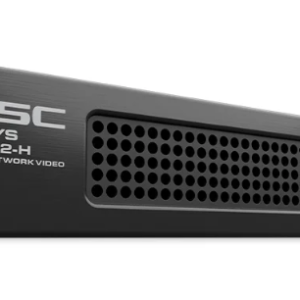

Q-SYS NV-32-H-CC Network Video Endpoint (Core Capable)

Q-SYS NV-32-H (Core Capable) is a versatile, software-configurable video endpoint native to the Q-SYS Ecosystem, offering two distinct operating modes to accommodate various application needs.

$6,565.00
UPC: 684284085764UPC: 684284085764
Tags: Category: SKU: NV-32H-CC
Brand:

Features of the Network Video Endpoint:

  • Two operating modes:
  • Core Mode: Acts as a Q-SYS Core processor with an integrated 3×2 HDMI video switcher, 64×32 network audio channels, 8 AEC channels, support for up to 32×32 software-based Dante channels, and one VoIP softphone instance.
    Peripheral Mode: Functions as a native HDMI video and audio distribution endpoint with software-configurable encoding or decoding, simultaneous streaming capabilities, and Q-SYS Shift™ adaptive video compression codec.

  • Onboard audio I/O via HDMI, USB, and 3.5 mm connections.
  • Supports up to three Q-SYS NM-T1 tabletop microphones in Core Mode.
  • Seamless integration and control within the Q-SYS Ecosystem.
  • Flexible power options, including PoE (802.3bt Type 4) and 48 V DC input.
  • Compact 1RU half-rack design with various mounting configurations

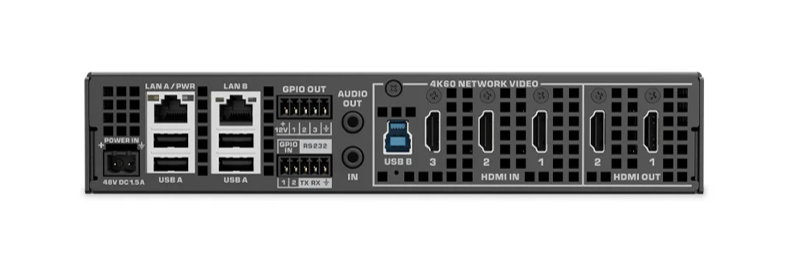

Specifications:

  • Operating Modes: Core Mode, Peripheral Mode
  • HDMI Inputs: 3x HDMI 2.0 (up to 4K60 4:4:4)
  • HDMI Outputs: 2x HDMI 2.0 (up to 4K60 4:4:4)
  • Analog Audio Input: 1x 3.5 mm unbalanced stereo mic/line input
  • Analog Audio Output: 1x 3.5 mm unbalanced stereo line output
  • Network Audio Channels: 64×32
  • Software-based Dante Channels: Up to 32×32 (license required)
  • AEC Channels: 8
  • VoIP Instances: 1
  • USB Audio Channels: 2×2
  • GPIO: 2×3
  • RS-232 Ports: 1
  • Power over Ethernet: IEEE 802.3bt Type 4
  • DC Power Input: 48 V DC nominal, 1.5 A on 2-pin Euro connector
  • Dimensions (H x W x D): 1.72 x 8.7 x 7.5 inches (44 x 221 x 190 mm)
  • Weight: 3.5 lbs (1.6 kg)
  • Operating Temperature Range: 0° to 50° C
