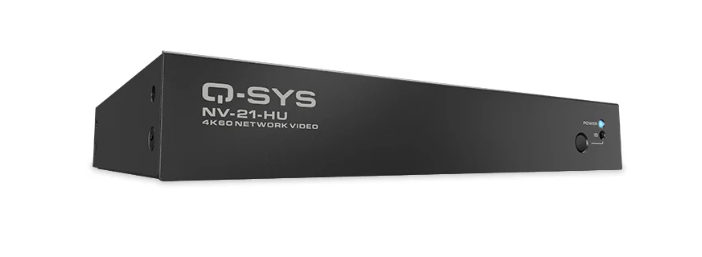

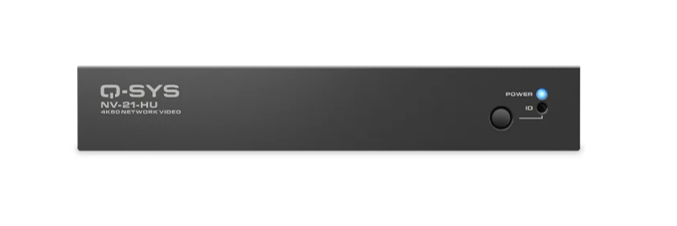

Q-SYS NV Series NV-21-HU Network Video Endpoint

Features of the Network Video Endpoint:

• Single-cable solution for video distribution, AV bridging, and device charging via USB-C
• Supports video formats up to 4K60 4:4:4
• Software-configurable as an encoder or decoder
• Dual streaming capability via HDMI and USB-C inputs
• Q-SYS Shift™ adaptive video compression technology
• Seamless integration and management through Q-SYS Designer Software
• Flexible mounting options with included surface mounting hardware

Specifications:

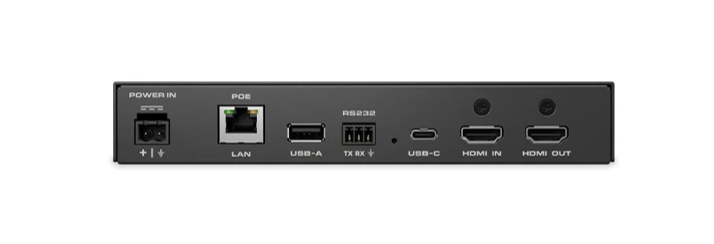

• Video Inputs: 1x HDMI 2.0, 1x USB-C (USB 3.2 Gen 1×1, supporting DisplayPort Alt-Mode)
• Video Output: 1x HDMI 2.0
• Supported Video Resolutions: Up to 3840 x 2160 (4K UHD) at 60 Hz, 4:4:4 chroma sampling
• Audio Inputs: 8-channel PCM audio via HDMI and USB-C
• Audio Output: 8-channel PCM audio via HDMI
• USB-C Port: Supports DisplayPort Alt-Mode, AV bridging, and device charging up to 65W (external power supply required for charging)
• Power Options: PoE Type 3, Class 5 (40W at device) or 12V DC, 9A external power supply (NV-21-PSU sold separately)
• Dimensions (H x W x D): 1.2 x 7.3 x 5.2 inches (30.5 x 185 x 131.5 mm)
• Weight: 1.75 lbs (794 g)
• Mounting Options: Flexible surface mounting hardware included
