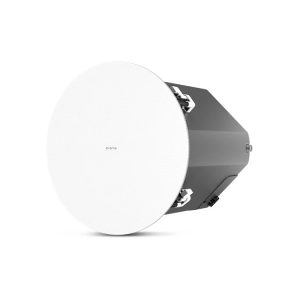

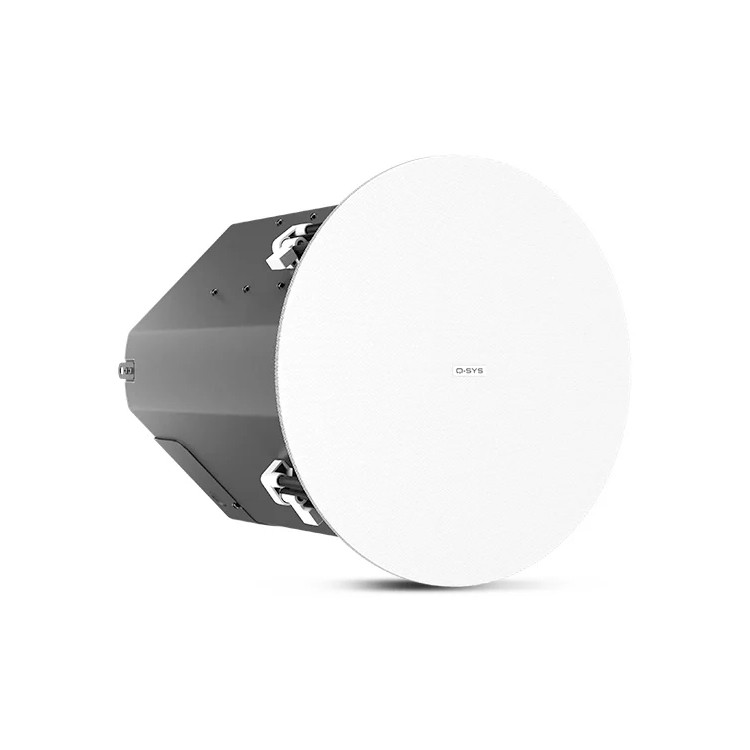

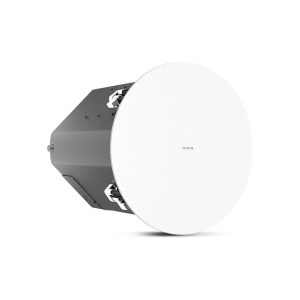

Q-SYS Q-Sys 8-Inch Zero-Bezel Ceiling-Mount Subwoofers (Pair)

Features of the 8-Inch Zero-Bezel Ceiling-Mount Subwoofers:

• Zero bezel design for the needs of modern applications
• Consistent tonal characteristics across the entire AcousticDesign Series for surface, ceiling, and pendant applications
• DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

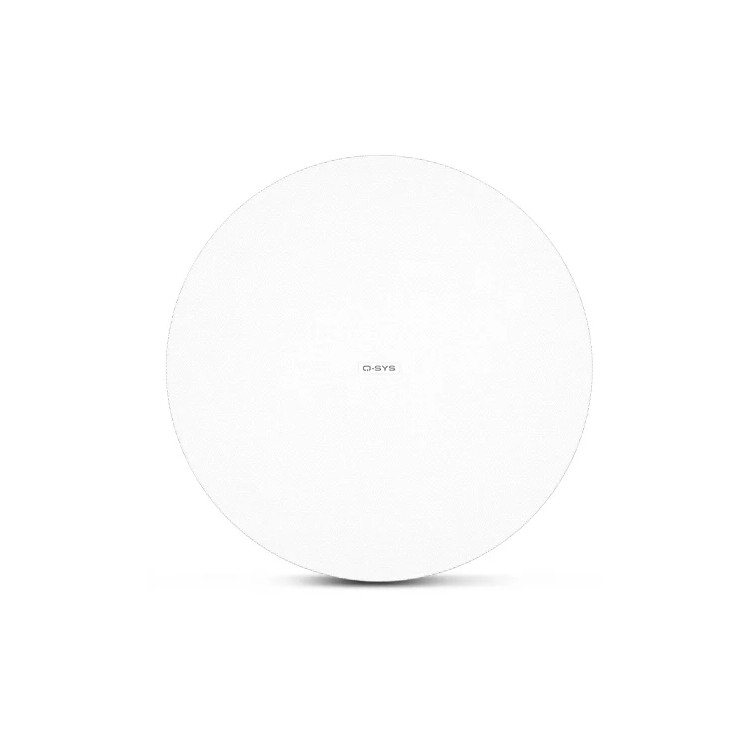

• Snap-fit magnetic grille

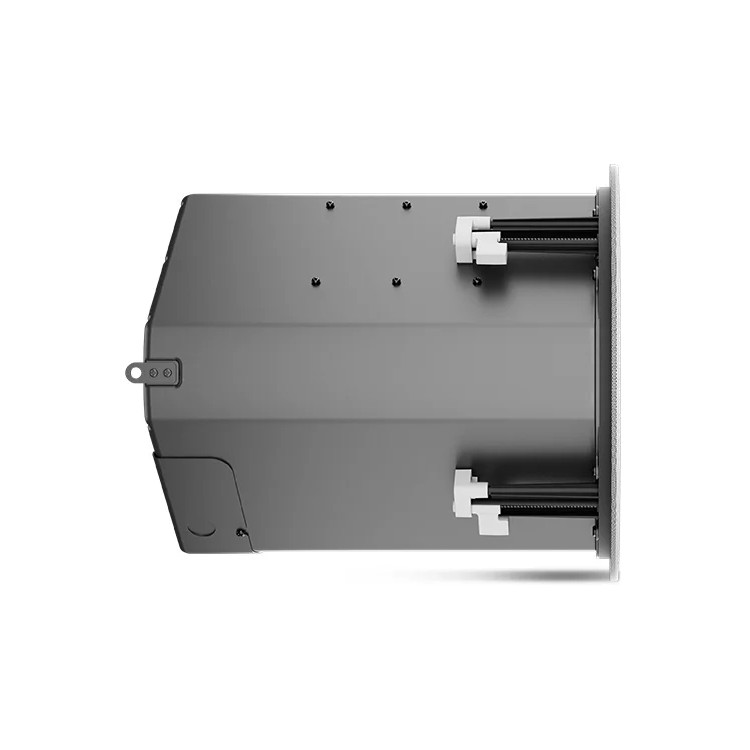

• 3x double stepped, long travel dog-ear blind mount system
• Intrinsic Correction voicings available via the Q-SYS Platform including CX-Q amplifiers
• Blemish-free removable logo
• Removable conduit cover plate, also available as accessory for pre-install wiring
• UL1480 and UL2043 certified
• Available in white (RAL 9003)
• Complete EASE, CF2, CAD, & BIM information available online

Specifications:

• LF transducer: 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite
• Enclosure configuration: Ceiling Subwoofer, Bass Reflex
• Coverage: Omni
• Filter: 125 Hz Low Pass, Passive
• System bandwidth
• -3 dB: 65 Hz – 155 Hz
• -6dB: 59 Hz – 170 Hz
• -10 dB: 53 Hz – 195 Hz
• Sensitivity: 92.3 dB @ 1 W/ 1 m
• Maximum SPL (continuous): 113 dB
• Maximum SPL (peak): 125 dB
• Maximum SPL (calculated): 123 dB
• Power rating: Continuous power 250 W @ 8Ω, rated Power 500 W
• Bypass impedance: 8 Ω
• Minimum impedance: 6.4 Ω @ 118 Hz
• Taps (70v/100v): 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W
• Enclosure material: ABS baffle on powder coated steel backcan
• Enclosure color: Black back-can, white grille (RAL 9010)
• Connectors: 4-pin 0.2 in (5 mm) Euroblock connector with parallel output
• Cutout dimension: Ø12 in (Ø305 mm)
• Dimensions (HxWxD): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm)
• Weight: 22.4 lb (10.1kg)
