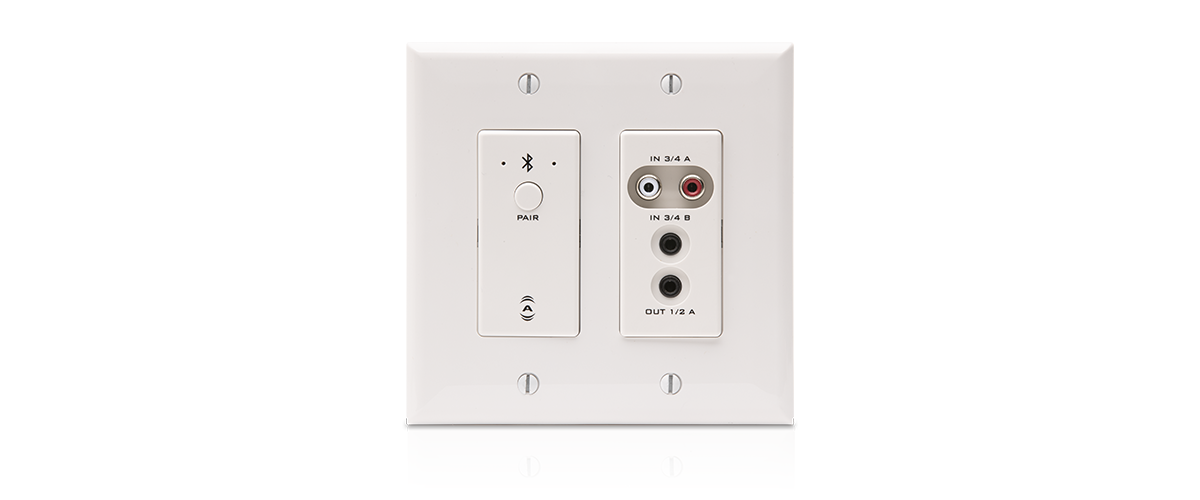

Q-SYS unD6IO-BT Multi-IO Dante Network Audio Wall Plate w/ BT

Features of the Audio Wall Plate:

• Bluetooth media streaming: The unD6IO-BT wall plate is compatible with most smartphones, Apple iPads, and Android tablets, providing Bluetooth media streaming and call bridging for a wide variety of commercial applications. Control plugin allows for control and monitoring of the unD6IO-BT via native Q-SYS touch screen controller.
• Bluetooth call bridging: Provides simple bridging of far-end meeting participants for on-the-fly meeting productivity and backup conference connectivity.
• Q-SYS integration: A Q-SYS Extension is available for the unD6IO-BT in Q-SYS Designer Asset Manager, which enables control and monitoring via native Q-SYS touch screen controllers.
• Out of the box: In addition to Bluetooth media streaming, the unD6IO-BT also features a two RCA line level inputs, one 3.5 mm line level input and one 3.5 mm line level output – providing connectivity flexibility for any application type. The input configuration can be modified within Q-SYS or Attero Tech unIFY Control Panel software.

Specifications:

• Bluetooth® profile: A2DP – Stereo audio is streamed from a Bluetooth® device and onto the Dante network. HFP (Hands Free Profile) – duplex pairing to a cell phone for call bridging
• Bluetooth® range: 10 m (30 ft) minimum. Typical range is 15 – 23 m (50 – 75 ft)
• RCA and 3.5 mm input: RF filtered line level, input source software selectable
• Maximum input levels (3.5 mm / RCA): +12 dBu
• Output volume range: 0 dB to -60 dB in 1 dB steps, “software selectable”
• 3.5 mm output: RF filtered line level
• Maximum output level (3.5 mm): +12 dBu
• Product dimensions (H × W × D): 3.54 x 4.2 x 1.88 inches (89.91 x 106.68 x 47.752 mm)
• Decora wall plate (2-gang): 4.87 x 4.94 x 0.08 in (123.7 x 125.48 x 2.03 mm)
• Shipping dimensions (H × W × D): 6 x 6 x 4 inches (152.4 x 152.4 x 101.6 mm)
• Shipping weight: 1.0 lb (0.45 kg)
