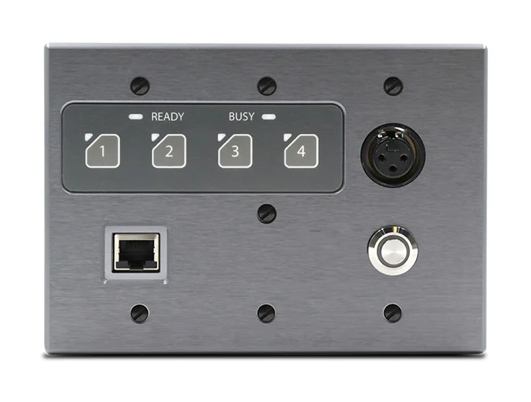

Q-SYS Zip4-3G Four-Zone Dante/AES67 Paging Interface
NEW
Attero Tech by Q-SYS Zip4-3G is a four-zone Dante/AES67 paging interface designed to address the unique communication needs of large venues such as sporting arenas, transit hubs, convention centers, and corporate facilities.
$2,727.00
Features of the Paging Interface:
- Four assignable zone buttons with adjustable white backlighting
- Bi-color (red/green) Ready and Busy status LEDs for clear indication of system status
- Front panel XLR connection and PTT switch for gooseneck microphone integration
- Front panel RJ-45 jack serving as an optional PTT microphone input with strain relief for reliable connections
- Seamless integration with Q-SYS PA Router running on a Q-SYS Core processor via a dedicated Zip4 control plugin for Q-SYS Designer Software
- Rugged brushed aluminum faceplate suitable for desktop or wall-mount applications
- Powered over Ethernet (PoE) compliant with IEEE 802.3af standards
Specifications:
-
- Zone Buttons: Four assignable momentary buttons with adjustable white backlighting
- Status LEDs: Bi-color (red/green) Ready and Busy indicators
- Microphone Inputs: Front panel XLR (3-position XLR-F), front panel RJ-45, and side-mounted 6-pin depluggable connector
- Microphone Gain: +25 dB (with automatic phantom power) and +35 dB
- Power Consumption: < 5 W max, IEEE 802.3af PoE PD compliant
- Certifications: FCC 47CFR Parts 15B and 18 (Class A), EN 55011, ICES-003, CE (EN55022 Class A and EN55024 Class A)
- Dimensions (H x W x D): 4.5 x 6.4 x 2 inches (114.3 x 162.6 x 50.8 mm)
Operating Temperature: 0° C to 40° C
