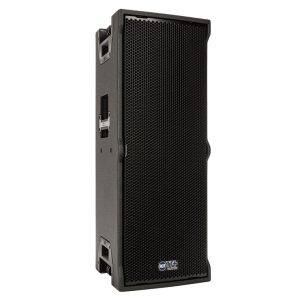

RCF TTL 4-A 2 x 10″ woofer 1.5″ neo c. driver
The RCF TTL 4-A 2 x 10’’ woofer 1.5″ neo c. driver speaker module delivers top-quality sound for highly demanding events indoors or outdoors on small to medium-sized areas. Its design provides the audio engineer with the best tonal balance.
Features of the RCF TTL 4-A 2 x 10’’ woofer 1.5″ neo c. driver:
- 135 dB max SPL
- 100° x 25° coverage
- LF 2 x 10’’ neodymium woofer, 3.0” voice coil
- HF 1.5” Nd comp. driver 4.0” voice coil
- 2 x Class-D amplifiers, 1600 Watt RMS total power
- 45 – 20.000 Hz frequency range
- RDNet on board
- FiRPHASE 0° linear phase
Specifications:
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz
MAX SPL @ 1M:
135 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
25°
Transducers
COMPRESSION DRIVER:
1 x 1.5” neo, 4.0” v.c
WOOFER:
2 x 10” neo, 3.0” v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Fast Limiter
CONTROLS:
Selectable preset, volume, delay
RDNET:
Yes
Power section
TOTAL POWER:
3200 W Peak, 1600 W RMS
HIGH FREQUENCIES:
1200 W Peak, 600 W RMS
LOW FREQUENCIES:
2000 W Peak, 1000 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Array fittings, 2xM10 on the top, 2xM8
HANDLES:
2 side, 2 rear
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
825 mm / 32.48 inches
WIDTH:
316 mm / 12.44 inches
DEPTH:
369 mm / 14.53 inches
WEIGHT:
30.4 kg / 67.02 lbs
| Weight | 73.85 lbs |
|---|---|
| Dimensions | 14.37 × 34.06 × 16.14 in |
Brand
RCF
In 1949, RCF’s three founders conjured a bold vision based on technology that was considered niche at the time. The real breakthrough came in the '60s when concert sound began to transition from small acoustic setups to big spaces, requiring electric amplification for voices and other low-volume musical instruments. In-depth knowledge in transducers and electronics qualified RCF to develop complete audio systems, bringing the company to a leading position in multiple audio markets over the years, from OEM transducers to Hi-Fi, public address, portable speakers, recording studios, and big concert systems. RCF’s passion for perfection drives the design of every product to create enlightening, unique, and delightful experiences for our customers. All speakers and components are designed from the ground up and developed internally to maximize the end result.
GTR Direct is a proud dealer for RCF Canada
