Shure BLX14R-H10 Wireless Instrument System with WA302 Instrument Cable

Name: Shure BLX14R-H10 Wireless Instrument System with WA302 Instrument Cable
SKU: BLX14R-H10
Availability: PreOrder
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

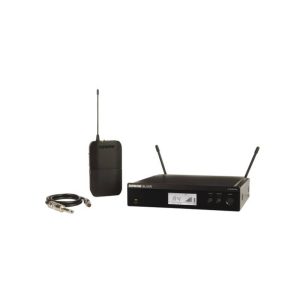

Main view Shure BLX14R-H10 Wireless Instrument

Front view of the Shure BLX14R-H10 Wireless Instrument

Shure BLX14R-H10 Wireless Instrument System includes a WA302 1/4″ to TA4F instrument cable and a bodypack transmitter. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference.

$509.00

Available on backorder

UPC: 42406470506UPC: 42406470506

Tags: Bodypack Transmitter SHURE Wireless Instrument SystemCategory: Wireless Instrument Microphone SystemsSKU: BLX14R-H10

Features of the Shure BLX14R-H10 Wireless Instrument System with WA302 Instrument Cable:

For Guitar & Bass Players
WA302 Instrument Cable
Lightweight Bodypack Transmitter
Single-Channel Rackmount Receiver
123 Auto-Scan Frequencies
Two Removable Antennas with Diversity
Adjustable Output Level
Rugged Metal Construction
14-Hr AA Batteries
Expandable to 12 Mic Channels/300′ Range

Specifications:

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 123
Included Transmitters 1 x Bodypack
Diversity Antenna Diversity
RF Frequency Band H10:
542 to 572 MHz
RF Bandwidth 24 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 300′ / 91.4 m (Line of Sight)
Max Transmitters per Band 12
Dynamic Range 100 dBA

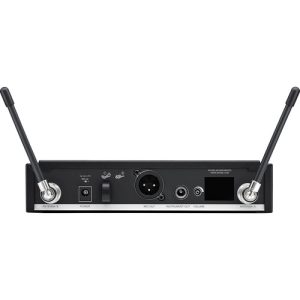

Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/4 Wave External, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4″ TS Female Unbalanced Output
Audio Output Level XLR Output:
-20.5 dBV (Mic Level)
1/4″ Output:
-13 dBV (Instrument Level)
Frequency Response 50 Hz to 15 kHz (Dependent on Mic)
Impedance XLR Output:
200 Ohms
1/4″ Output:
50 Ohms
Approximate RF Sensitivity -105 dBm
Adjacent Channel Isolation >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC at 260 mA, Center-Positive (Included)
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level)
1 x LED (Transmitter Battery Status)
Housing Steel
Operating Temperature 0 to 135°F / -17 to 57°C
Dimensions 7.8 x 2 x 6.4″ / 198 x 50 x 163 mm (without Mounting Hardware, Antennas)
Weight 35.2 oz / 998 g

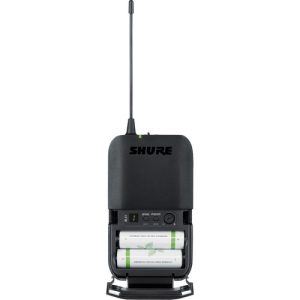

Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW

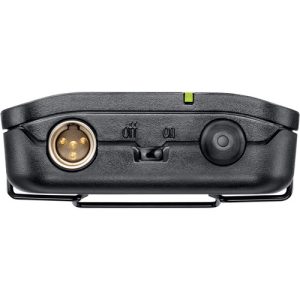

Audio I/O 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
Included Cable Connector 1/4″ TS
Muting Off/On Switch
Auto-Level Control No
Gain Range -16 to +10 dB
Sync Method Manual
Antenna 1 x Flexible Whip, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 x AA (Included)
Approx. Battery Life 14 Hours (Alkaline)
Display & Indicators 1 x Multi-Segment LED (Channel, Group)
1 x LED (Battery Status, Power)
Housing ABS
Dimensions 2.5 x 4.3 x 0.8″ / 64 x 110 x 21 mm
Weight 2.6 oz / 75 g (without Batteries)
