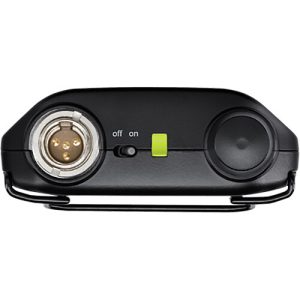

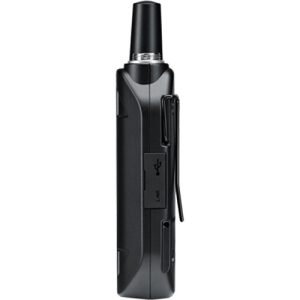

Shure GLXD1-Z2 Wireless Bodypack Transmitter with TA4F
Shure GLXD1-Z2 Wireless Bodypack Transmitter features a TA4M input connector, allowing you to plug in a lavalier or headset mic of your choice for hands-free presentations and performances, or a dedicated WA305 locking instrument cable for use with a guitar/bass (mic and cable available separately).
Features of the Shure GLXD1-Z2 Wireless Bodypack Transmitter with TA4F:
- For GLX-D & GLX-D Advanced Systems
- Use with Lav/Headset Mic or Instrument
- TA4M Connector
- 16 Hours with SB902 Rechargeable Battery
- Remotely Adjustable Gain from Receiver
- On/Off Power Button
- LED for Battery/Sync Status
Specifications:
Wireless Technology Digital 2.4 GHz
Max Operating Range 200′ / 61 m
Latency 4.3 to 7.3 ms
Encryption None
Modulation Proprietary
Transmitter
Transmitter Type Bodypack
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input
Muting Off/On Switch
Audio Input Level +8.4 dBV
Gain Range -18 to +42 dB (1 dB Steps)
Frequency Response 20 Hz to 20 kHz (Dependent on Mic)
Sync Method Proprietary
Antenna Internal
Approximate RF Sensitivity -88 dBm
Power Requirements Battery
Battery Type 1 x Shure SB902 (Included, Replaceable)
Battery Charging Time .25 to 3 Hours
Approx. Battery Life 16 Hours
USB/Lightning Connectivity 1 x Micro-USB
Display & Indicators LED (Battery Status, Sync)
Housing Plastic
Operating Temperature 0 to 135°F / -17 to 57°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 2.6 x 3.5 x 0.9″ / 65 x 90 x 23 mm (without Antennas)
Weight 4.7 oz / 132 g (without Batteries)
