Shure QLXD14-G50 Wireless Instrument System with WA305 Instrument Cable

Name: Shure QLXD14-G50 Wireless Instrument System with WA305 Instrument Cable
SKU: QLXD14-G50
Availability: PreOrder

Main view of the Shure QLXD14-G50 Wireless Instrument

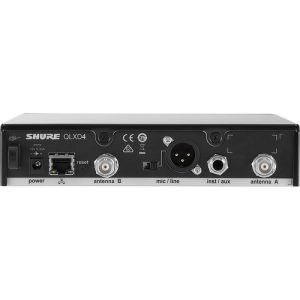

Back view of the Shure QLXD14-G50 Wireless Instrument

Shure QLXD14-G50 Wireless Instrument System provides musicians with professional-quality audio, and reliable RF performance. Rugged and easy-to-use, the system delivers an impressively low latency of 2.9ms, so you don’t experience any lag when playing in medium-sized venues including concert stages, houses-of-worship, theaters, and clubs.

$1,349.00

Available on backorder

Tags: Bodypack Transmitter QLXD Rackmount Receiver SHURE Wireless Instrument SystemCategory: Wireless Instrument Microphone SystemsSKU: QLXD14-G50

Features of the Shure QLXD14-G50 Wireless Instrument System with WA305 Instrument Cable:

For Guitar and Bass Players
WA305 Locking Instrument Cable
Rugged Bodypack Transmitter
Switching-Diversity Rackmount Receiver
2560 Auto-Scan Frequencies
Selectable 1/10mW RF Power
High-Contrast LCD Display
Ethernet Port for WWB Control Software
9-Hr AA Batteries
Expandable to 60 Mic Channels/330′ Range

Specifications:

Wireless Technology Digital UHF
Number of RF Channel Frequencies 2560
Diversity Antenna Diversity
RF Frequency Band G50:
470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 330′ / 100.6 m
Max Transmitters per Band 60
Latency < 2.9 ms Modulation Proprietary Receiver Receiver Type Tabletop Mounting Options Rackmount (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount) Number of Audio Channels 1 Audio I/O 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Balanced Output Gain Range -18 to +42 dB (1 dB Steps) Pad 30 dB Audio Output Level XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4″ Output: +12 dBV (Instrument Level) Phantom Power Protection On 1/4″, XLR Output Network I/O 1 x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP Impedance XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 1/4″ Output: 50 Ohms (Unbalanced) Approximate RF Sensitivity -97 dBm Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1 x LED (Sync)
1 x LED (Peak)
Housing Metal
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.6 x 5.9″ / 197 x 41 x 151 mm (without Antennas)
Weight 1.7 lb / 777 g (without Antenna)
