Shure QLXD24/B87A-X52 Wireless Handheld System with BETA87A Mic

Name: Shure QLXD24/B87A-X52 Wireless Handheld System with BETA87A Mic
SKU: QLXD24/B87A-X52
Availability: PreOrder
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Main view of the Shure QLXD24/B87A-X52 Wireless Handheld

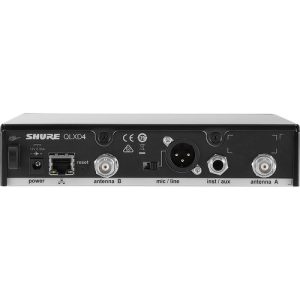

Back view of the Shure QLXD24/B87A-X52 Wireless Handheld

Shure QLXD24/B87A-X52 Wireless Handheld System provides performers, presenters, and broadcasters with professional-quality audio, reliable RF performance, and secure AES 256-bit encryption. Rugged and easy-to-use, it is ideal for sound-reinforcement applications in medium-sized venues.

$1,659.00

Available on backorder

UPC: 42406468831UPC: 42406468831

Tags: BETA87A Diversity Receiver Dynamic Microphone Handheld Transmitter QLXD SHURE Wireless Handheld SystemCategory: Handheld SystemsSKU: QLXD24/B87A-X52

Features of the Shure QLXD24/B87A-X52 Wireless Handheld System with BETA87A Mic:

For Presenters and Performers
Beta 58A Dynamic Supercardioid Mic
Handheld Transmitter
Switching-Diversity Rackmount Receiver
1040 Auto-Scan Frequencies
Selectable 1/10mW RF Power
LCD Display, Ethernet Port
Interchangeable Capsule Design
9-Hr AA Batteries
Expandable to 12 Mic Channels/330′ Range

Specifications:

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 1040
Included Transmitters 1 x Handheld
Diversity Antenna Diversity
RF Frequency Band X52:
902 to 928 MHz
RF Bandwidth 26 MHz
Frequency Step Size 25 kHz
Max Operating Range 330′ / 100.6 m
Max Transmitters per Band 12
Sample Rate/Resolution 48 kHz / 24-Bit
Latency < 2.9 ms Dynamic Range 120 dB Encryption AES 256 Modulation Proprietary Receiver Receiver Type Tabletop Mounting Options Rackmount (with Included Hardware) Rackmount Size 1 RU (1/2 Rack) Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount) Number of Audio Channels 1 Audio I/O 1 x XLR 3-Pin Male Balanced Output 1 x 1/4″ TRS Female Balanced Output Gain Range -18 to +42 dB (1 dB Steps) Pad 30 dB Audio Output Level XLR Output: +18 dBV (Line Level) XLR Output: -12 dBV (Mic Level) 1/4″ Output: +12 dBV (Instrument Level) Phantom Power Protection On 1/4″, XLR Output Network I/O 1 x RJ45 (10/100 Mb/s) Network Protocols DHCP, Manual IP Impedance XLR Output: 100 Ohms (Balanced) 1/4″ Output: 100 Ohms (Balanced) 1/4″ Output: 50 Ohms (Unbalanced) Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.4 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 150 mA
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Group, Menu Navigation, Metering, RF Level, Transmitter Battery Status)
1 x LED (Sync)
1 x LED (Peak)
Housing Metal
Operating Temperature 0 to 122°F / -18 to 50°C
Dimensions 7.8 x 1.6 x 5.9″ / 197 x 41 x 151 mm (without Antennas)
Weight 1.7 lb / 777 g (without Antenna)
Transmitter
Transmitter Type Handheld
RF Output Power 1 / 10 mW
Audio I/O None
Gain Range 0 to 21 dB (3 dB Steps)
Frequency Response 30 Hz to 20 kHz
Sync Method IR
Antenna 1 x 1/4 Wave
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Shure SB900A (Not Included, Replaceable)
Approx. Battery Life 9 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Channel, Group, RF Output Power)
Housing Aluminum
Dimensions 2 x 10.1″ / 51 x 256 mm
Weight 12.2 oz / 347 g (without Batteries)
Microphone
Microphone Type Handheld Capsule
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Frequency Range 50 Hz to 16 kHz
Sensitivity -51.5 dBV/Pa
