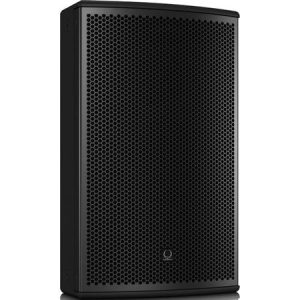

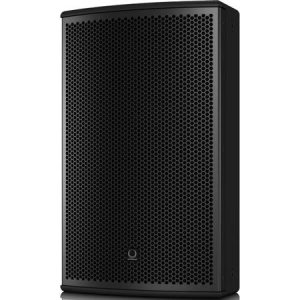

Turbosound NuQ102 Full Range Loudspeaker

Features of the Turbosound NuQ102 Full Range Loudspeaker :

• 2 way full range loudspeaker for portable PA and installation applications
• 300 Watts continuous, 1,200 Watts peak power
• Ideal for FOH, side fill and monitor applications
• 10″ low frequency driver with low mass voice coil for improved transient response
• Aluminum dome 1″ neodymium motor compression driver
• Switchable passive/bi-amp operation for flexibility of use
• Rotatable converging elliptical waveguide provides 100 deg. H x 60 deg. V dispersion
• 12 mm (1/2 “) birch plywood enclosure with hard wearing semi matt black paint finish
• Rugged powder coated perforated steel mesh grille # Integral 35 mm pole mount and handles
• Multiple internal rigging points allow bracket mount and suspension in any orientation
• Neutrik speakON NL4 connectors for reliable long life operation
• 3-Year Warranty Program
• Designed and engineered in England

Specifications:

Frequency Response 55Hz – 18kHz +/-3dB 50Hz – 20kHz -10dB
Nominal Dispersion 100 H x 60 deg. V at -6dB points, rotatable
Directivity Factor (Q)8
Directivity Index (DI)9
Power Handling (IEC)Passive: 300W continuous, 1,200W peak
Bi-amp:
LF: 300W continuous, 1,200W peak; HF: 30W continuous, 120W peak
Sensitivity 93dB (1W at 1m)
Maximum SPL Passive: 118dB continuous, 124dB peak
Bi-Amp:
LF: 118dB continuous, 124dB peak; HF: 119dB continuous, 125dB peak
Impedance Passive: 😯 hms
Bi-Amp:
LF: 😯 hms; HF: 6O hms
Crossover Type Passive / bi-amp, switchable
Components 1x 10″ (261 mm) LF driver
1x 1″ (25 mm) HF compression driver

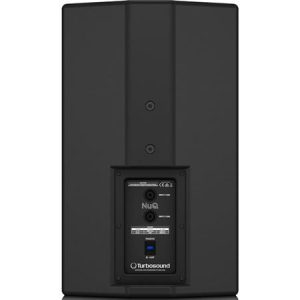

Connectors 2x Neutrik speakON NL4
Wiring Passive: Pins 1+ / 1- input, pins 2+ / 2- link
Bi-Amp: Pins 1+ / 1- LF, pins 2+ / 2- HF
Construction 12mm (1/2″) birch plywood
Finish Semi matt black paint
Grille Powder-coated perforated steel
Flying Hardware M10 x 8, M8 x 3 and M6 x 4 points
Dimensions (H x W x D)525 x 318 x 258mm / 20.67 x 12.52 x 10.16″
Weight12.7kg / 28lbs
