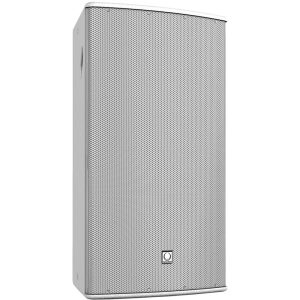

Turbosound TCS-152-64 Full Range Loudspeaker
December 9, 2021
Turbosound TCS152/64-AN-WH Loudspeaker
December 10, 2021Features of the Turbosound TCS-152-64-WH Full Range Loudspeaker:
- 15F0226BLK
- 10-Year Warranty Program*
- Designed and engineered in the U.K.
Specifications
Enclosure
Connectors | 1 x Neutrik speakON* NL4 1 x barrier strip terminals |
Wiring | |
Dimensions (H x W x D) | 834 x 473 x 451 mm (32.8 x 18.6 x 17.8″) |
Net Weight | 28.9 kg (63.7 lbs) |
Construction | 15 mm (5/8″) birch plywood |
Finish | Semi matt white paint |
Grille | Powder coated perforated steel |
Flying Hardware | M10 x 9, M8 X 8 Points |
Accessories
TCS152-FP (WH) fly plate kit for TCS152 TCS-FK1 (WH) inter-cabinet coupler kit for TCS122 or TCS152 TCS-FK2 (WH) inter-cabinet coupler kit for TCS115B with TCS122 or TCS152 |
System
Frequency Response | 41 Hz – 18 kHz ±3 dB 35 Hz – 20 kHz -10 dB |
Nominal Dispersion | 60° H x 40° V @ -6 dB points, rotatable |
Directivity Factor (Q) | 18.3 |
Directivity Index (DI) | 12.6 |
Power Handling (IEC) | |
Sensitivity | 97 dB (1 W @ 1 m) |
Maximum SPL | |
Impedance | |
Crossover Type | Passive / Bi-amp, switchable |
Components | 1 x 15″ (394 mm) LF driver 1 x 1.4″ (36 mm) HF compression driver |
