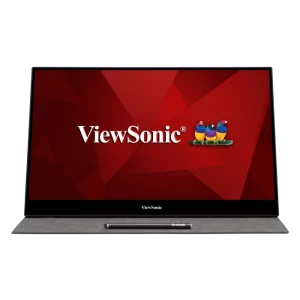

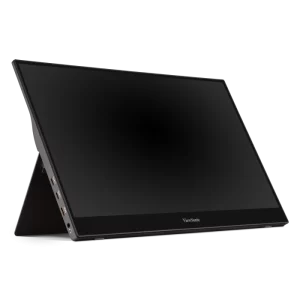

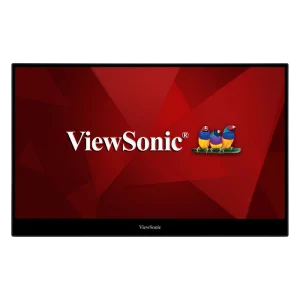

ViewSonic ID2455 – ViewBoard Touch Display

Features of the ViewBoard Touch Display:

• COLOR ACCURATE: A color-accurate, 5080 LPI Full HD LCD display lets you achieve pinpoint precision.
• DIGITAL STYLUS: A stylus with 8192 levels of pressure sensitivity meticulously creates thick and thin strokes with ease.
• LIGHTWEIGHT: At 815G and a thickness of 7mm, this ultra-lightweight display comes with a case for easy transportation.
• PLUG & PLAY: Simply connect this device to your computer to use synchronized screen mode. Download a handwriting driver for even more customization.
• USB-C CONNECTIVITY: Connect to your monitor via HDMI or USB-C, which delivers touch recognition and power over a single cable.

Specifications:

• Screen Size: 24
• Viewable Area (in.): 23.8
• Panel Type: IPS
• Display Resolution: 1920 x 1080
• Static Contrast Ratio: 1,000:1
• Dynamic Contrast Ratio: 50,000,000:1
• Light Source: LED
• Brightness: 250 cd/m2
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 14ms
• Response Time (GTG w/OD): 6ms
• Viewing Angles: 178º horizontal, 178º vertical
• Backlight Life (Hours): 30,000
• Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25%
• Refresh Rate: 60Hz
• PC Resolution (max): 1920×1080
• Mac® Resolution (max): 1920 x 1080
• USB 3.2 Gen 1 Type A: 2
• USB 3.2 Gen 1 Type B: 1
• USB 3.2 Gen 1 Type C: 1
• 3.5mm Audio Out: 1
• HDMI 1.4 In: 1
• DisplayPort: 1
• DisplayPort Out: 1
• Touch Technology: Projective Capacitive
• Touch Points: 10-Point Touch
• Touch Compatibility: Touch Compatibility with Windows 7, 8, 10, Linux (Ubuntu 15.1 to 19.04, Fedora 23 to 31), Raspbian(Jessie, Stretch, Buster), Android 7, 8
• Internal Speakers: 2W (x2)
• Eco Mode (Conserve): 11.3
• Eco Mode (optimized): 14.5
• Consumption (typical): 19.6
• Consumption (max): 23.6
• Voltage: AC 100-240V (universal), 50-60Hz
• Stand-by: 0.3W
• Power Supply: Internal
• Cable Organization: No
• Kensington Lock Slot: 1
• Physical Controls: 1,2,3,4,5,6 [Power]
• On Screen Display: Auto image adjust, Contrast/Brightness, Input Select, Audio adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
• Temperature: 32-104º F (0 – 40º C)
• Humidity (non-condensing): 20-90%
• VESA Compatible: 100 x 100 mm
• Frequency Horizontal: 15 ~ 82KHz
• Frequency Vertical: 50 ~ 75Hz
• Digital Sync: TMDS for HDMI (v1.4), Micro-Packet for DisplayPort (v1.2), Micro-Packet for USB Type C
• Tilt (Forward/Back): 5º / 60º
• Net (lbs): 14.2
• Net Without Stand (lbs): 8.2
• Gross (lbs): 18.6
• Net (kg): 6.4
• Net Without Stand (kg): 3.7
• Gross (kg): 8.4
• Packaging (in.): 24.3 x 16.3 x 11.2
• Physical (in.): 21.2 x 16.8 x 11.3
• Physical Without Stand (in.): 21.2 x 12.6 x 2.0
• Packaging (mm): 617.0 x 415.0 x 285.0
• Physical (mm): 539.0 x 426.0 x 286.0
• Physical Without Stand (mm): 539.0 x 320.0 x 52.0
• Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy
• Package Contents: LCD PCT Touch Display, Power Cable, DP Cable, USB 3.2 Cable, Passive Touch Pen, Passive Touch Pen Head, Quick Start Guide
• Recycle/Disposal: Please dispose of in accordance with local, state or federal laws
• Warranty: Three-year limited warranty on parts, labor and backlight
