1.6 FT F32 Roof Element with Single Side Clamp 0.5 Meter | 2mm Wall

UPC: 19372410492UPC: 19372410492
$195.99
ProX Live Performance Gear Canada

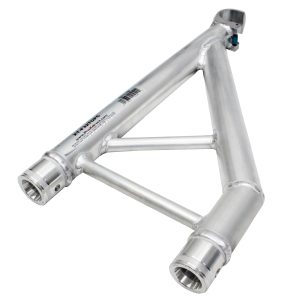

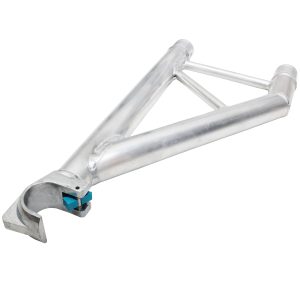

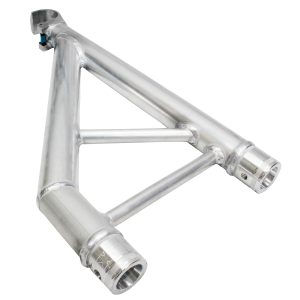

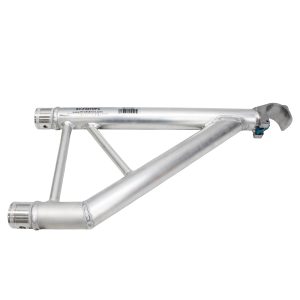

ProX XT-F32TOPC 1.6 FT F32 Roof Element with Single Side Clamp 0.5 Meter | 2mm Wall

ProX XT-F32TOPC 1.6 FT F32 Roof Element with Single Side Clamp 0.5 Meter | 2mm Wall. The ProX XT-F32TOPC is a specialty item to transition from F32 to a single clamp on the upper chord for attachment to truss structures for roof support.  The ProX F32 traverse can be mounted both horizontally and vertically. The areas of application are mainly for event technology, exhibition, and shop construction or at low room height in horizontal mounting.

F32 Truss Segment to transition from F32 to a single clamp on the upper chord for attachment to truss structures for roof support.

The use of this element will devalue load capacities by 50% or more for the F32 Loading Chart.






A Special Truss Part for Stage Roofing

  • Download the ProX Truss/Rigging Safety Guide
  • 2-Point to 1-Point Truss With Clamp
  • Ideal for Roof Structures
  • Overall Length: 23.622 in (60 cm)
  • Extension Length: 19.685 (.5 m)
  • Manufactured in our Own Factory!
  • Material: EN-AWT6 6082 Aluminum
  • 2mm Tube Walls
  • TUV Certified Aluminium Welding
  • Includes 1 Set Connecting Hardware

   TUV is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL).  TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.


F32 Truss Segments to transition from F32 to a single clamp on the upper chord for attachment to truss structures for roof support


Weight 6 lbs
Dimensions 24 × 13 × 3 in

Brand

ProX Live Performance Gear

ProX Live Performance Gear makes products that are designed for professionals, by professionals. Our motto is simple; "Quality, without compromise". We believe the highest quality of components met with cutting edge design allows us to achieve our goals at a competitive price point. In 1984 ProX Started by manufacturing flight cases for broadcasting production and touring companies. Now specializing in manufacturing specific DJ controller cases for brands like Pioneer, Yamaha and DiGiCo as well as products like lighting cases, stands, cables, and bags.

All cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for. ProX Listens to customer feedback and consistently create outstanding solutions for all your needs. The Flip-Ready cases are manufactured in Poland and are handcrafted for quality control and individually tesfad for smooth operation. The Flip-Ready design allows for easy, one person, instead of four, movement from the transport position to operational position with virtually no effort.

GTR Direct is a proud dealer for ProX Canada
ProX Live Performance Gear Canada
