3.28 Ft1 Meter Circle Truss Design Wheel Round Base or Top Mount

UPC: 19372407867UPC: 19372407867
ProX Live Performance Gear Canada

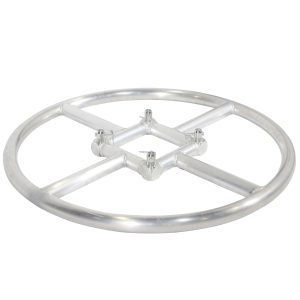

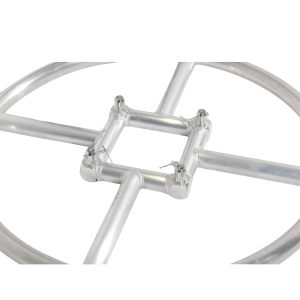

ProX XT-BPC328 MK2 3.28 Ft. – 1 Meter Circle Truss Wheel – Round Base or Top Mount

The ProX XT-BPC328 MK2 3.28ft Circle Truss is excellent for a variety of lighting and accessory needs of a mobile DJ, stage set, sound arrangements and more!  This second-generation circle component is based on the design of our XT-F32JBOX Junction as a center section.  The circle component can be used as a base or truss topper.  Create unique lighting designs by mounting this circle on the top of a truss segment or totem and hanging lights or other gear in a 360-degree dispersion.   This, used as a base, makes a great bottom for truss totems!

  • Tolerance Free Standard Conical connector
  • Main tube wall thickness of .08in


  • Height: 11.42in / 290mm
  • Width: 11.42in / 290mm
  • Weight: 21lb per 3.28 ft / 9,5kg per meter
  • Main Tube: 2in / 50mm
  • Wall Thickness:  .08in / 2mm
  • Braces: .75in / 20mm

Actual Diameter:  3.28 ft. (1.00 Meter) Square Truss Segment
Tubing: 2″
Includes connecting hardware set.

ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.

  • Manufactured in our Own Factory!
  • Material: EN-AWT6 6082 Aluminum
  • TUV Certified Aluminium Welding
  • Note: Shipping weight of 38lbs is a Dimension Weight (Oversized) by UPS/FedEx

TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.

Weight 38 lbs
Dimensions 41 × 40 × 3 in


ProX Live Performance Gear

ProX Live Performance Gear makes products that are designed for professionals, by professionals. Our motto is simple; "Quality, without compromise". We believe the highest quality of components met with cutting edge design allows us to achieve our goals at a competitive price point. In 1984 ProX Started by manufacturing flight cases for broadcasting production and touring companies. Now specializing in manufacturing specific DJ controller cases for brands like Pioneer, Yamaha and DiGiCo as well as products like lighting cases, stands, cables, and bags.

All cases use CNC technology, during the manufacturing process, to assure that cases are consistently built with strict specifications and tolerances that are required for the high-quality standards that ProX cases have been known for. ProX Listens to customer feedback and consistently create outstanding solutions for all your needs. The Flip-Ready cases are manufactured in Poland and are handcrafted for quality control and individually tesfad for smooth operation. The Flip-Ready design allows for easy, one person, instead of four, movement from the transport position to operational position with virtually no effort.

GTR Direct is a proud dealer for ProX Canada
ProX Live Performance Gear Canada
