ADJ Encore FR Pro Color Grade 7″ LED Fresnel Fixture

Name: ADJ Encore FR Pro Color Grade 7" LED Fresnel Fixture
SKU: ENCORE-FR-PRO-COLOR
Availability: PreOrder
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

ADJ Encore FR Pro Color Grade 7″ LED Fresnel Fixture is a professional grade Fresnel fixture with a 7-inch lens powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, lime and cyan LEDs.

$2,039.00

Available on backorder

UPC: 810087370091UPC: 810087370091

Tags: ADJ stage lighting theatrical lightCategories: Fresnels, TheatricalSKU: ENCORE-FR-PRO-COLOR

Features of the ADJ Encore FR Pro Color Grade 7″ LED Fresnel Fixture:

400W 6-in-1 LED Engine (Red, Green, Blue, Amber, Lime, Cyan.)
Virtual CMY color mixing DMX control modes.
Tunable white color temperature from 2400k to 8500k.
Adjustable refresh rate (68 presets from 900 – 25,000 Hz.)
6 preset dim modes.
60 preset colors on virtual color wheel.
64 preset RGBA color macros.
Motorized Zoom (Beam angle 7° – 44°.)

Specifications:

SOURCE

400W 6-IN-1 LED (Red, Green, Blue, Amber, Lime and Cyan)

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

11,384 Total Lumen Output (Full ON, Zoomed Out to Full)

28,670 LUX 2,664 FC @6.6’ (2m) (Zoomed In / Full ON)

3,638 LUX 338 FC @6.6’ (2m) (Zoom Out / Full ON)

Beam Angle: 8° to 56°

Max Field Angle: 70°

Color Temperature: Tunable, 2400K to 8500K

CRI: 94+

EFFECTS

Motorized Zoom

Electronic Dimmer and Strobe (1-20Hz)

Variable 16-bit Dimming Modes and Curves

Virtual CMY Color Mixing DMX Control Modes

Tunable White Color Temperature from 2400K to 8500K

62 Preset White Color Temp Macros (2400K to 8500K)

60 Preset Colors on Virtual Color Wheel

64 Preset RGBA Color Macros

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer and Shutter

Dimmer and Zoom Rotary Dials

(5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)

Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)

6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)

Dim Speed Options (0.1s to 10s)

4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)

4 Button Control Panel LCD Menu Display

RDM (Remote Device Management)

3/5pin DMX Input and Output

Locking Power Input and Output

USB Service Port

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.32” (414.5mm)

Width: 14.18” (360.1mm)

Vertical Height: 19.29” (490mm)

Weight: 20.9 lbs. (9.45kg)

ELECTRICAL / THERMAL

AC 100-240V – 50/60Hz

450W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

Power Linking: 2Pcs @ 110V / 5Pcs @ 240V

INCLUDED ITEMS

Gel Frame

Locking Power Cable

OPTIONAL ACCESSORIES

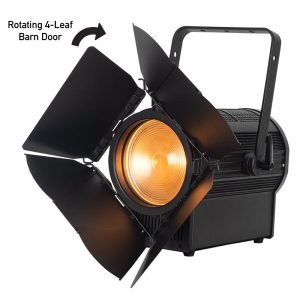

Barn Doors

APPROVALS / RATINGS

CE | cETLus | IP20
