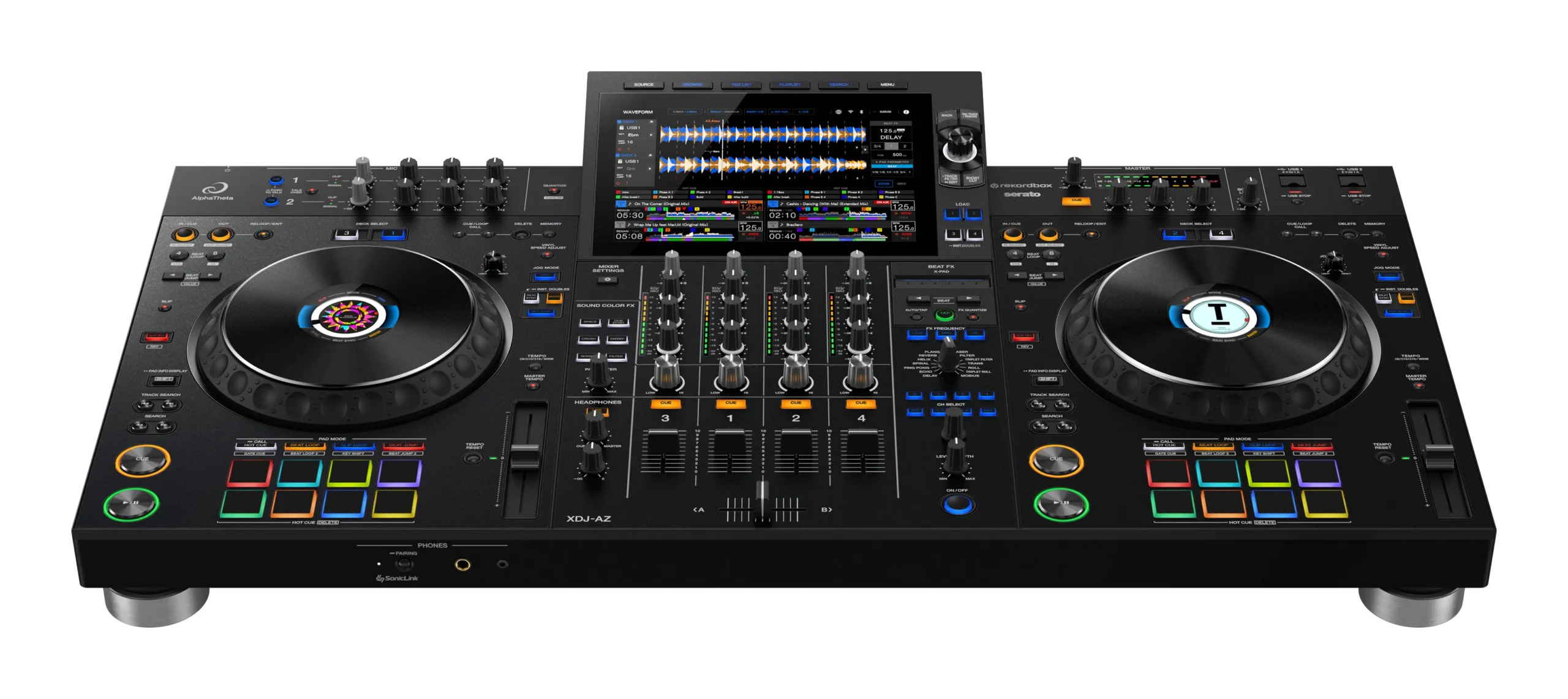

AlphaTheta XDJ-AZ 4-Channel All-in-One DJ System

Features of the AlphaTheta XDJ-AZ 4-Channel All-in-One DJ System:

Professional club-ready quality:

• Clear and dynamic audio – If you`re familiar with the preceding XDJ-XZ, you`ll notice various upgrades have been made in the design of the XDJ-AZ. By incorporating a 32-bit D/A converter from ESS Technology, the sound quality has been significantly enhanced to create clear and dynamic audio that can rock large venues and clubs.
• 3-Band Master EQ – You can also use the 3-Band Master EQ to tweak the output sound according to the acoustic characteristics of the venue.
• Mixer Settings – And the unit features a dedicated button for the mixer settings, so you can quickly check and adjust the mixer`s status on-screen.

Other Features:

• Hardware Unlock – The XDJ-AZ is a Hardware Unlock device. Simply plug the XDJ-AZ into a PC / Mac running the rekordbox application and you can use the software.
• Serato DJ Pro – Simply plug the XDJ-AZ into a PC / Mac running the Serato DJ Pro application and you can use the software. (Coming December 2024).
• 3 USB ports – Perform back-to-back with another DJ and hand over smoothly thanks to the 3 USB inputs (2 top-loading for USB devices and 1 laptop connection).
• rekordbox Link Export – Play tracks directly from your PC/Mac or mobile device by connecting via a USB cable, LAN cable, or wireless connection.
• Performance Pads – Hit the 8 back-lit rubber Performance Pads to trigger Hot Cues, Beat Loop, Slip Loop and the Beat Jump.
• Gate Cue – Experiment with your pad play using Gate Cue, which plays the music from the cue point only when you press the pad. Take your finger off the pad and the music stops instantly, and silently returns to the cue point.
• Easy to carry – Be ready to play at a moment`s notice. The single-unit design with grab handles makes carrying and setup easy.
• High-quality audio – The mic input circuit produces crystal-clear sound, even with a high input level.
• Firmware Update Manager – You`ll be automatically notified when firmware updates become available.
• AlphaTheta Care – Our extended product warranty service ensures longer and more reliable use of your products.

Specifications

• Terminals

Inputs:

• LINE / PHONO x2 (RCA)

• MIC x2 (XLR & 1/4″ TRS jack)

Outputs:

• MASTER x2 (XLR x 1, RCA x 1)

• BOOTH x1 (1/4″ TRS jack)

• PHONES x 2 (1/4″ stereo jack x 1, 3.5 mm stereo mini jack x 1)

USB:

• USB Type-A x 2

• USB Type-C x 1

Others:

LAN port (100BASE-TX) x 1

• Wireless LAN:

• Supported standards: IEEE 802.11 a / b / g / n / ac

Frequency band used: 2.4 GHz / 5 GHz

• Bluetooth:

• Wireless system: Bluetooth ver. 5.3

Compatible codecs: SBC, AAC

• SonicLink:

• Frequency band used: 2.4 GHz

• Performance Control

• Channels: 4

• Deck Control:

• 4 (USB Storage Device)

• 4 (DJ Software Control)

• Jog Wheel: 206 mm

• Jog Feeling:✓

• Sound Color FX:

• DUB ECHO

• NOISE

• SWEEP

• FILTER

• SPACE

CRUSH

• Beat FX:

• DELAY

• ECHO

• PING PONG

• SPIRAL

• REVERB

• TRANS

• FILTER

• TRIPLET FILTER

• FLANGER

• PHASER

• ROLL

• TRIPLET ROLL

• HELIX

MOBIUS

• General:

• Maximum Dimensions (WxDxH): 895 x 504.1 x 133.4 mm / 35.24″ x 19.85″ x 5.25″

• Main unit weight: 13.5 kg / 29.8 lbs.

• Frequency response: 20 Hz – 20 kHz (USB)

• S/N ratio: 115 dB (USB)

• Total harmonic distortion: 0.0018 % (USB)

Compatible software:
• rekordbox for Mac/Windows
• rekordbox for iOS/Android
• Serato DJ Pro

• Accessories:

• Power cord

• Quick Start Guide

• Precautions for use

Warranty (for some regions)
