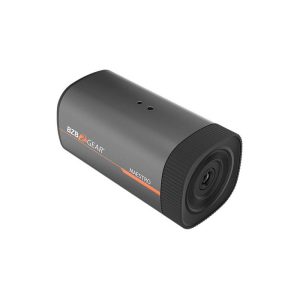

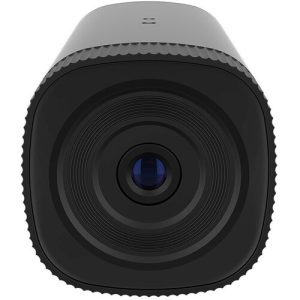

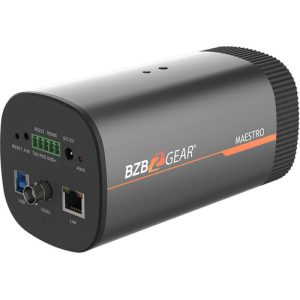

BZB Gear 8MP IP POE USB3.0 SDI Wide Angle Educational Auto Tracking Camera features a 1/2.8″ CMOS sensor and outputs up to 1080p video over SDI, USB 3.1 Gen 1, or RJ45 LAN, which uses RSMP/RTSP protocols to stream video and audio to Internet services.
Features of the BZB Gear 8MP IP POE USB3.0 SDI Wide Angle Educational Auto Tracking Camera:
- 1/2.8″ 8.28MP HD CMOS Sensor
- 3G-SDI, USB 3.0 & IP Streaming Output
- Capture up to 1080p30 Video
- 3x Digital Zoom, PoE Support
- 3.5mm Analog Stereo Audio Input
- RS-232 VISCA/Pelco-P/D, IP Control
Specifications:
Sensor 1/2.8″, 8.28 MP CMOS
Video Format SDI:
1920 x 1080p: 30/25
1280 x 720p: 60/50/30/25
USB:
1920 x 1080p: 30/25
1280 x 720p: 60/50/30/25
960 x 540p: 30
800 x 600p: 30
640 x 480p: 30
640 x 360p: 30
352 x 288p: 30
Video Compression Format H.264, H.265, MJPEG, YUY2, NV12
Audio Compression Format AAC, MP3, G.711A
Streaming Protocols RTSP, RTMP, ONVIF
Focal Length 7.23mm
Digital Zoom 3x
Minimum Illumination 0.5 Lux
Viewing Angle Diagonal: 57.2°
Vertical: 36°
Horizontal: 47°
DNR 50 dB
White Balance Auto/Manual
2400 to 7100K

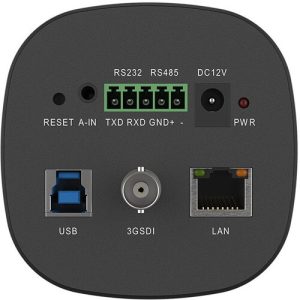

Video Connectors 1 x BNC 3G/HD-SDI
1 x USB 3.1 Gen 1 Type-B
1 x RJ45 LAN
Audio Input 1 x 3.5 mm Stereo Analog
Control Interfaces 5-Pin Terminal Block: RS-232, RS-485
RJ45: LAN
Serial Protocol VISCA, Pelco-D, Pelco-P
PoE Support Yes
Power Input 1 x DC Barrel: 12 VDC, 0.42 A
PoE: 48 V, 0.104 A
Power Consumption 5 W
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 95%
Dimensions 5.9 x 3 x 3″ / 148.8 x 76 x 76 mm
Weight 1.2 lb / 530 g
