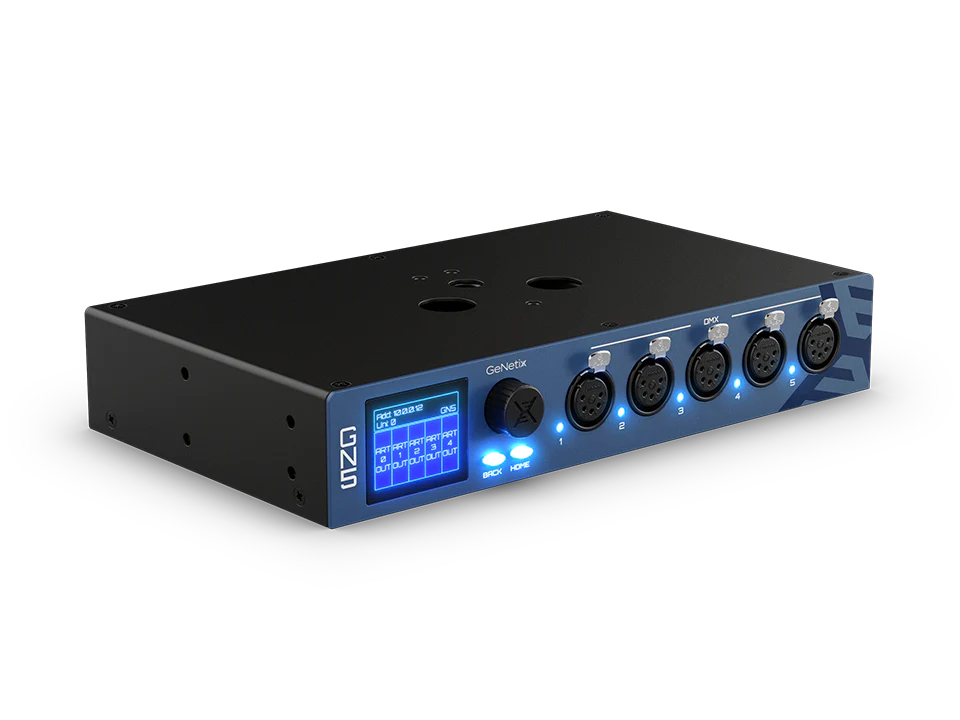

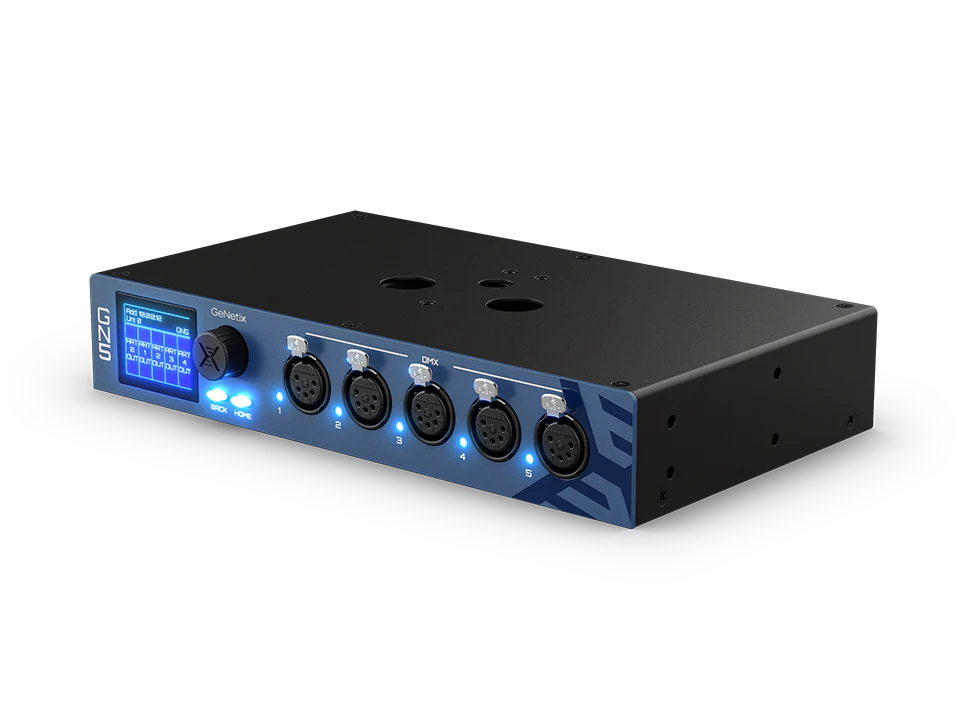

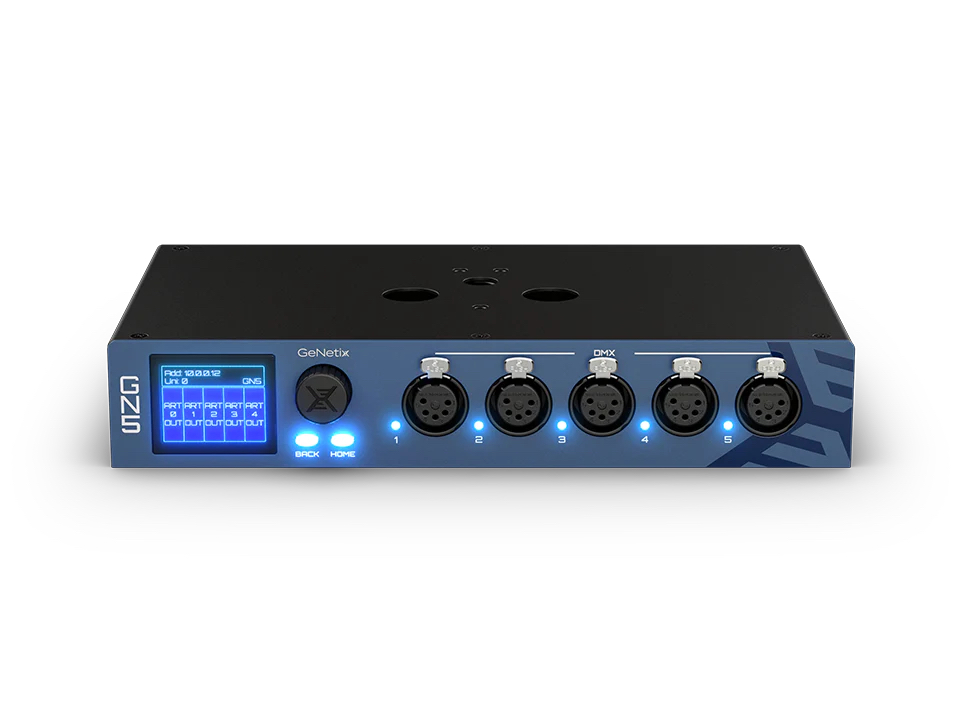

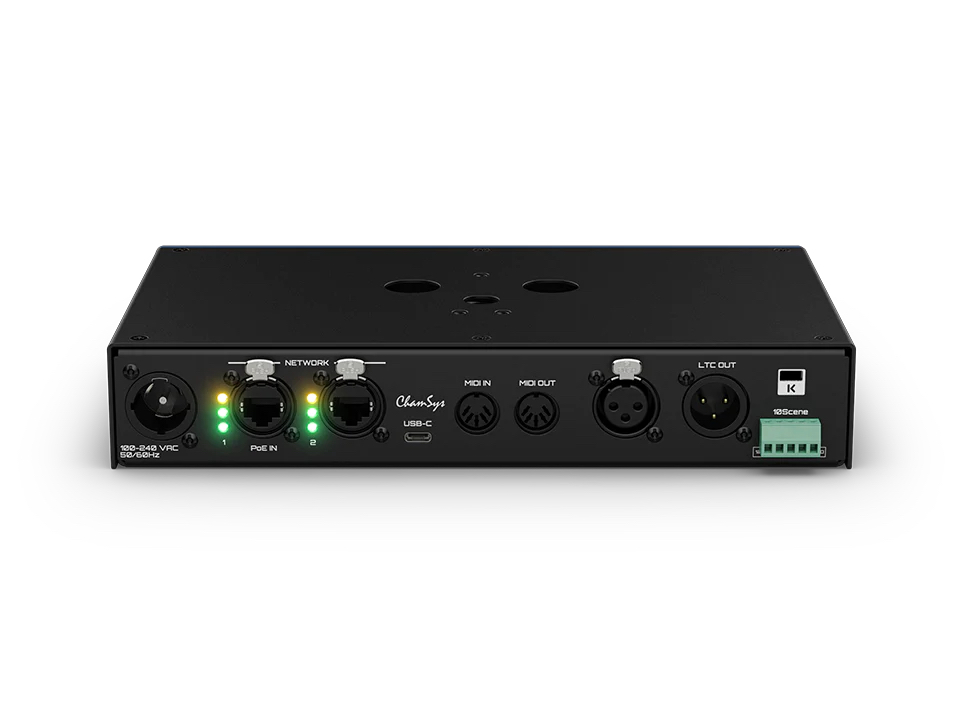

ChamSys GeNetix GN5 5-Port Multipurpose Node

Features of the ChamSys GeNetix GN5 Multipurpose Node:

• 2 RDM DMX Ports supporting Input and Output
• 5 RDM DMX Ports supporting Input and Output
• Supports Art-Net & sACN
• LTC & MIDI Timecode over Ethernet
• MIDI Notes over Ethernet
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Unlocks MagicQ PC Systems via either USB or Network

Specifications:

Hardware

• RDM Direct DMX Ports: 5
• Network Ports: 2
• MIDI Ports: 2 (1 in, 1 out)
• LTC Timecode Ports: 2 (1 in, 1 out)
• 10Scene Ports: 1
• PoE Input: Yes (Port 1)
• USB Ports: 1 USB-C
• Kensington Security Lock Fixing: Yes
• Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• LTC & MIDI Timecode over ChamNet: Yes
• MIDI Notes over ChamNet: Yes
• 10Scene Gateway Functionality: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• User Scene Store: Yes

Weights and Dimensions

• • (WxDxH): 1.75 x 9.84 x 6.77 inch (44.4 x 250 x 172 mm)
  • Weight: 3.08 lb (1.4 kg)

Included Accessories

• 1x Neutrik powerCON TRUE1 Power Cable
• 1x DIN Rail Mount Clip
• 1x Rack Mount Ears (set)
