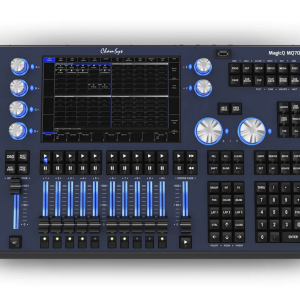

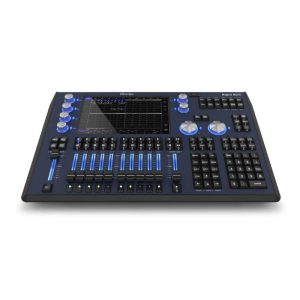

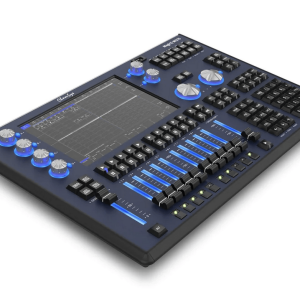

ChamSys MAGICQ MQ70 Compact Console

Features of the ChamSys MAGICQ MQ70 Compact Console:

• 24 Universes direct from the console, expandable to 48
• Fits as carry on luggage for all major budget airlines
• High Resolution 10.1″ multi touch display
• In built WiFi for quick connection to MagicQ Remote App
• UPS inbuilt to the console
• RDM Support via direct DMX Ports and Network
• Silent Operation, ideal for theaters

Specifications:

• Universes supported: 24 *expandable to 48
• Channels: 12288 *expandable to 24576
• Number of fixtures: Up to 12288 *expandable to 24576
• Cues: 5000
• Groups: 5000
• Display: 10.1”
• Console Display: 10″ Multi touch display
• External Monitor: HDMI – supports touch screens
• DMX 5-Pin XLR: 4
• RDM Support: Yes
• Faders: 12
• Attribute encoders: 8
• Network ports: 3
• Inbuilt WIFI: Yes
• USB ports: 5
• Audio in: Yes
• Audio out: Yes
• MIDI: Notes, TC, Show Control
• LTC in: Yes
• Remote input port: Yes
• Illuminated faders: Yes
• Illuminated encoders: Yes
• Wing Support: Yes
• Multi console: Yes
• 1 Dual Color Dimmable LED
• Console Lamp
• UPS: Yes
• Width: 525mm (20.6”)
• Depth: 350mm (13.7”)
• Height: 60mm (2.3”)
• Weight: 7kg (15.4lb)
