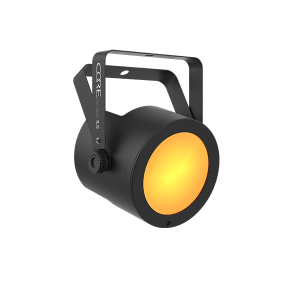

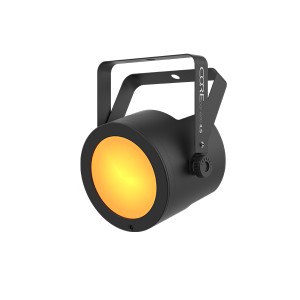

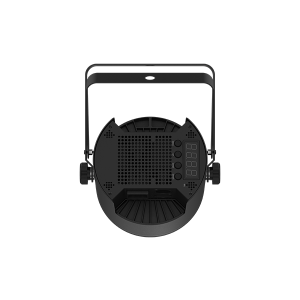

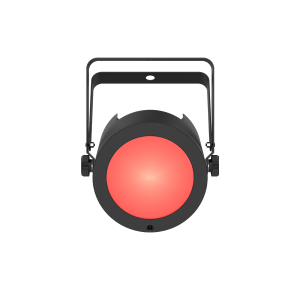

Chauvet DJ COREpar Q60 ILS

UPC: 781462222314UPC: 781462222314
$371.99

COREpar Q60 ILS is a 60-watt quad-color (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unsurpassed color mixing. Its robust housing withstands the harshness of traveling from gig to gig and its sit-flat housing design hugs

Features of the Chauvet DJ COREpar Q60 ILS:

COB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless Master/Slave or DMX control
Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing
Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
Create customized colors using the built-in LED display
Achieve smooth LED fading with built-in dimming curves
Easily transports in the optional CHS-40 VIP Gear Bag

Specifications:

DMX Channels: 4 or 9
DMX Connectors: 3-pin XLR
Light Source: 1 COB LED (quad-color RGBW) 60 W, (2.8 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 29 hz
Beam Angle:
(without lens): 74°
(with lens): 20°
Field Angle:
(without lens): 100°
(with Lenes): 30°
Illuminance:
(without lens) : 320 lux @ 2 m
(with lens) : 2,796 lux @ 2 m
Power Linking: 9 units @ 120 V; 17 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
59 W, 0.8 A @ 120 V, 60 Hz
57 W, 0.5 A @ 230 V, 50 Hz
Weight: 3.4 lbs. (1.5 kg)
Size: 7.5 x 7.5 x 8.2 in (192 x 192 x 210 mm)
Approvals: CE, RoHS, UKCA
Cable Length: 5ft (1.5 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: IRC6, D-Fi USB

What’s Included

Fixture
Power cord
Magnetic lens
Quick Reference Guide
