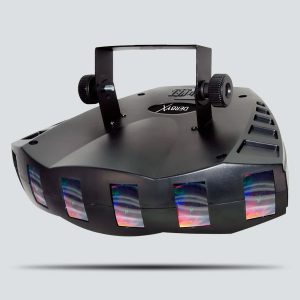

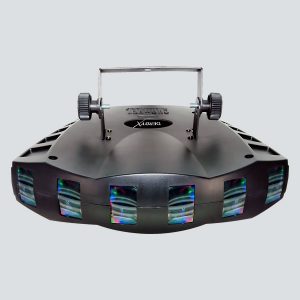

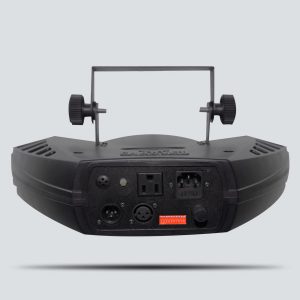

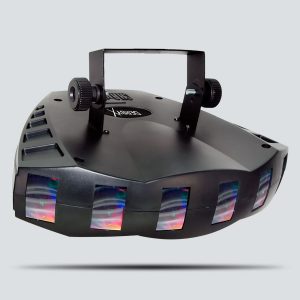

Chauvet DJ DERBY-X LED effect light

The Derby X is a DMX-512 LED derby effect light, featuring individual control of all 6 LED clusters. Additional features include blackout/static/strobe, built-in automated and sound activated programs, and linkable power for up to 27 units.

chauvet dj logo
UPC: 781462202910UPC: 781462202910

Features of the Chauvet DJ DERBY-X LED effect light:

LED derby effect light spreads multicolored, chasing beams throughout the room
Digital display allows quick setup of fixture capabilities
Wireless control when using the optional IRC-6 remote control
Enhance light shows with blackout, static and strobe effects
Increase flexibility with individual control of red, green and blue LEDs within each of the 6 clusters
Easily access built-in automated/sound programs using the onboard display
Combine multiple units together using X bracket


DMX Channels: 8
DMX Connectors: 3-pin XLR
Light Source: 90 LEDs (30 red, 30 green, 30 blue) 1 W, (96 mA), 50,000 hours life expectancy.
Strobe Rate: 0 to 26 Hz
Coverage Angle: 96°
Power Linking: 62 units @ 120 V; 94 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
10 W, 0.2 A @ 120 V, 60 Hz
10 W, 0.1 A @ 230 V, 50 Hz
Weight: 4 lb (2 kg)
Size: 11.9 x 15 x 7.4 in (302 x 382 x 187 mm)
Approvals: CE, UKCA, RoHS
Cable Length: 5 ft (1.5 m)
Optional Controllers: IRC-6


Chauvet DJ

CHAUVET DJ is a premier line of entertainment lighting, controllers and accessories for the mobile performer, DJs, clubs, corporate events and more. Offering the most value in the industry. Chauvet is a leading developer of luminaires, trussing, controllers, atmospherics and related equipment marketed globally under four main brands: CHAUVET DJ, CHAUVET Professional, Iluminarc, and ChamSys. Each Chauvet brand is well thought out to serve different customer needs but they all share the company’s focus on positively impacting every market segment with a competitive advantage in terms of value, innovation or performance.

Founded in 1990 by Albert and Berenice Chauvet, the company is widely recognized for its leadership in bringing successful concepts to market, including pioneering the development of affordable LED color mixing fixtures. The Chauvet mission is to elevate the world of lighting with customer-driven products at unparalleled value. We achieve this by following our VIP standards (value, innovation, performance) which motivate us to capture every technological and competitive edge to benefit our customers who are always our first priority.
