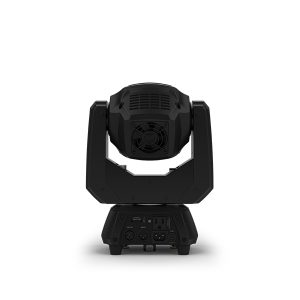

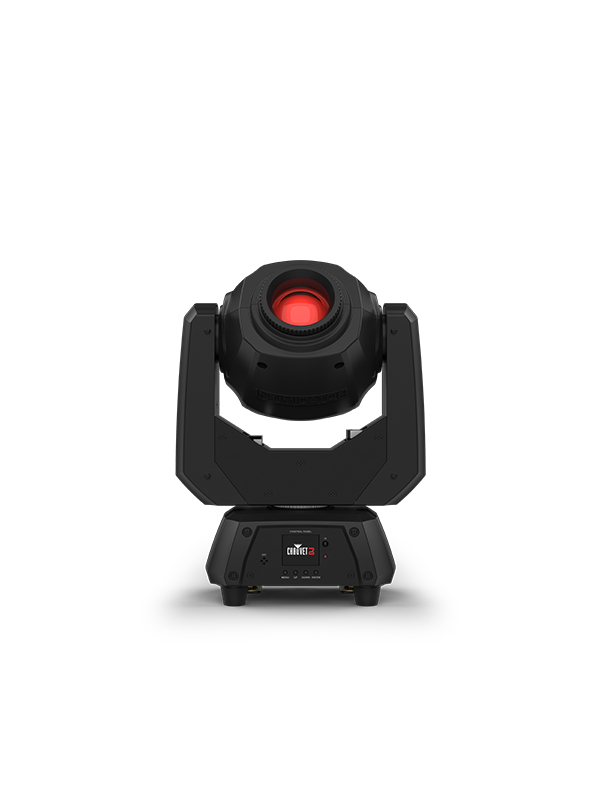

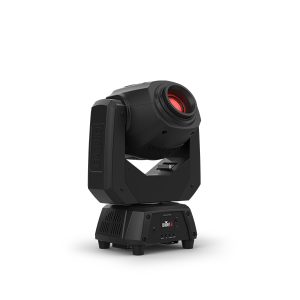

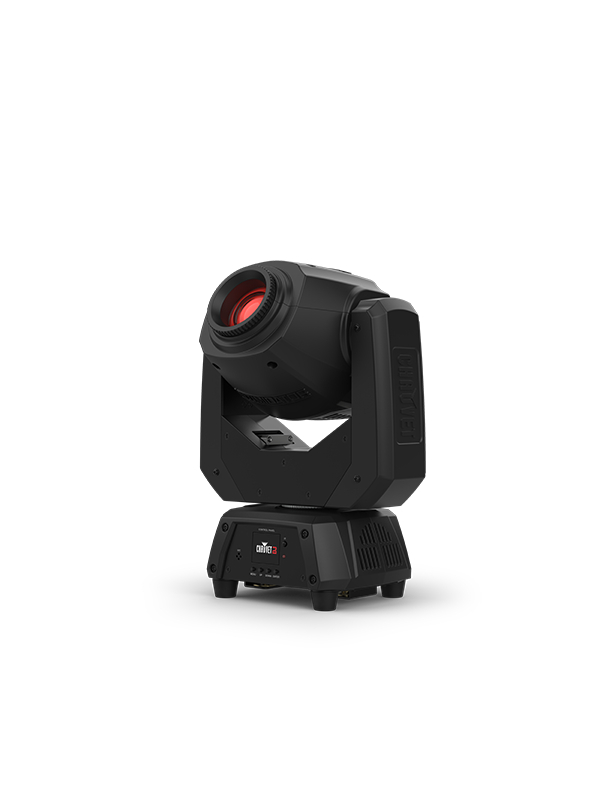

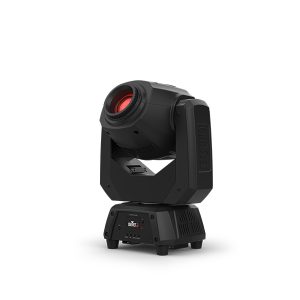

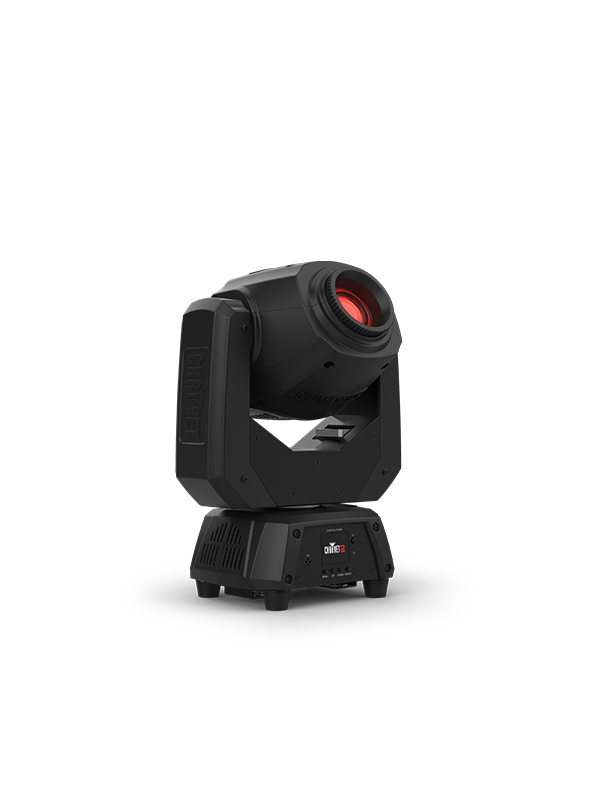

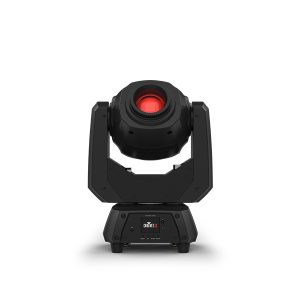

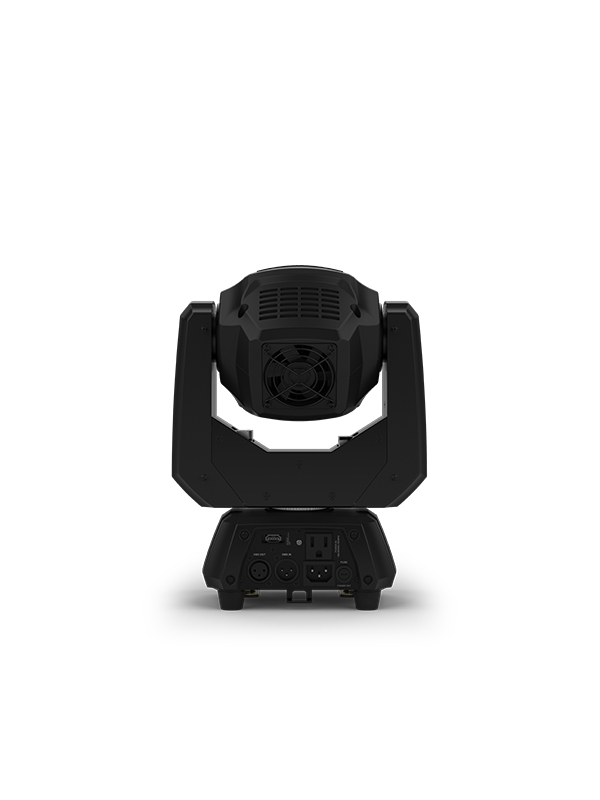

Chauvet DJ INTIMSPOT60ILS 8-Color LED Moving Head Light

Features of the INTIMSPOT60ILS 8-Color LED Moving Head Light:

• Feature-packed moving head designed for mobile performances
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• New home position allows for smoother programming
• ¼-turn hanging bracket allows for quick removal when needed
• Project crisp gobos from nearly any distance with the motorized focus
• Manual zoom for short or long throw applications
• 3-facet prism splits the beam and covers a larger area
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-color LCD display
• Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

Specifications

• DMX Channels: 8, 10 or 14
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/240°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 240° tilt
• Colors: 8 + open, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (cool white) 70 W, (3.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Zoom Angle: (manual) 15° to 17°
• Illuminance
• (15°) : 10,012 lux @ 2 m
• (17°) : 7,792 lux @ 2 m
• Power Linking: 5 units @ 120 V; 9 units @ 230 V
• Input Voltage
• 100 to 240 VAC
• 50/60 Hz (auto-ranging)
• Power and Current
• 107 W, 1.5 A @ 120 V, 60 Hz
• 105 W, 1 A @ 230 V, 50 Hz
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Weight: 11.2 lb (5.1 kg)
• Size: 9.9 x 7.8 x 13.8 in (251 x 199 x 351mm)
• Approvals: CE, RoHS, UKCA
• Prism: 3-facet round static
• Optional Controllers: IRC-6
• Color Temperature: 15,000 K
• Bracket Mounting Hole: 13 mm

What’s Included

• Intimidator Free Spot 60 ILS
• Power cord
• Omega bracket
• Quick Reference Guide
