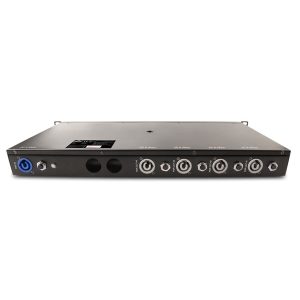

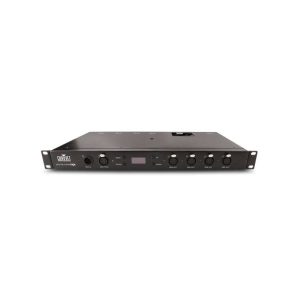

Chauvet Pro Synapse 4 PowerCon Relay Pack

Features of the Chauvet Pro Synapse 4 PowerCon Relay Pack:

• Controllable powerCON relay pack and DMX optically isolated splitter/amplifier
• Compounds the savings of LED fixtures by completely removing power when not in use
• Individually control all 4 relays via DMX, DMX sensing or internal scheduler for specific on/off times every day
• Optically isolated 5-pin DMX splitter provides an easy hub for running DMX to multiple locations
• Convenient mounting options; rack mount, wall mount or clamped to truss

Specifications

Construction / Physical

• Dimensions: 19 x 7.87 x 1.75 in (483 x 200 x 44.5 mm)
• Weight: 6 lb (2.8 kg)
• Exterior Color: Black
• Rackmount: 1U

Connections

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX
• DMX Channels: 1 or 4

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Main breaker size: 20 A, 250 V
• Breaker size per output: 20A, 250 V

Certifications / Qualifications

• CE
• IP Rating: IP20, dry location

What’s Included

• Synapse 4
• Neutrik powerCON power cord
