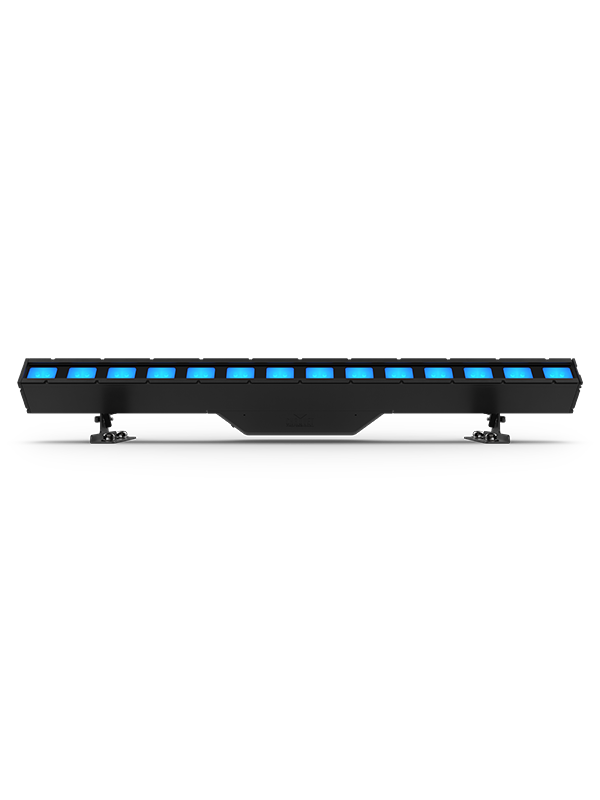

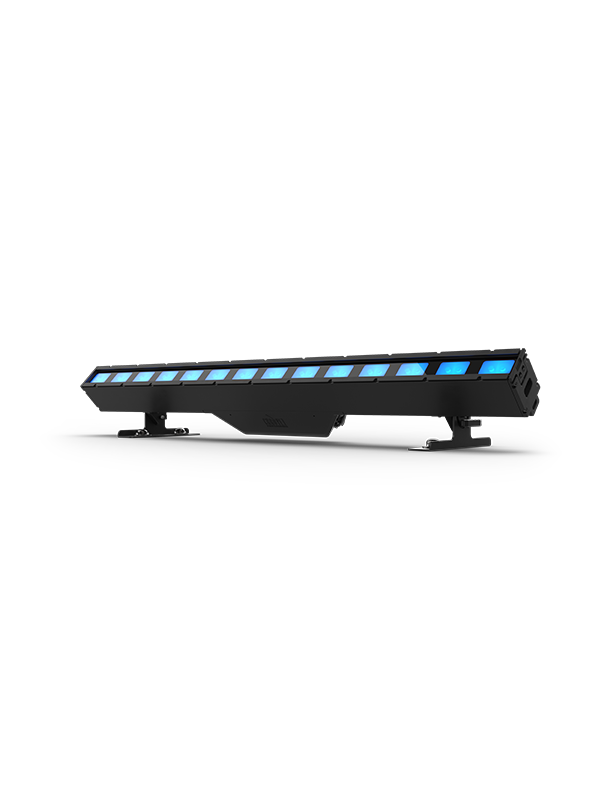

Chauvet Pro WELL BATTEN 14

Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability

Features of theChauvet Pro WELL BATTEN 14

• A fully realized kit of (4) battery-operated black IP65-rated batten style fixtures, with (28) RGB warm white LEDs in (14) sections of control and a beam angle of 16 degrees.

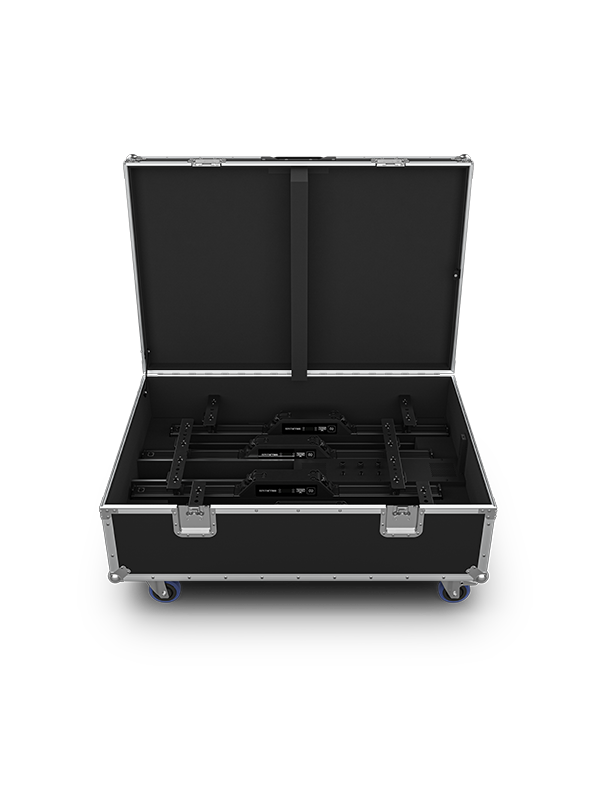

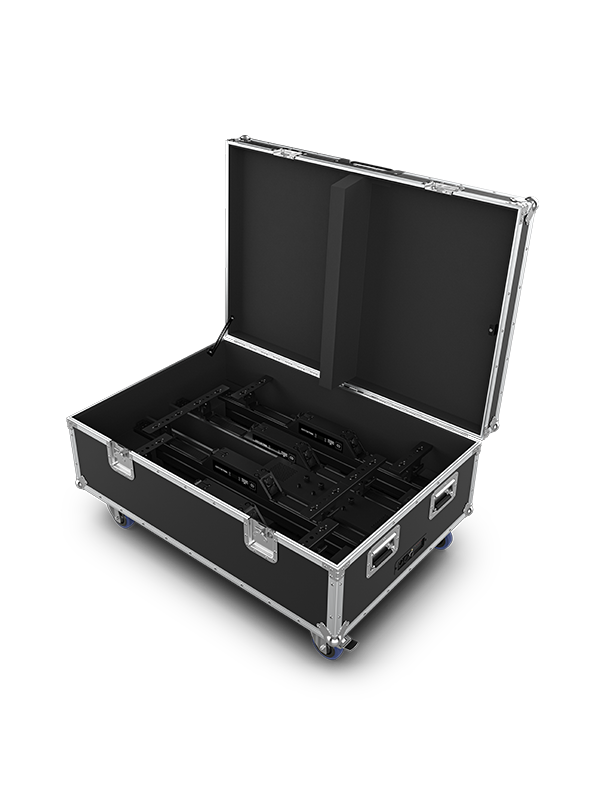

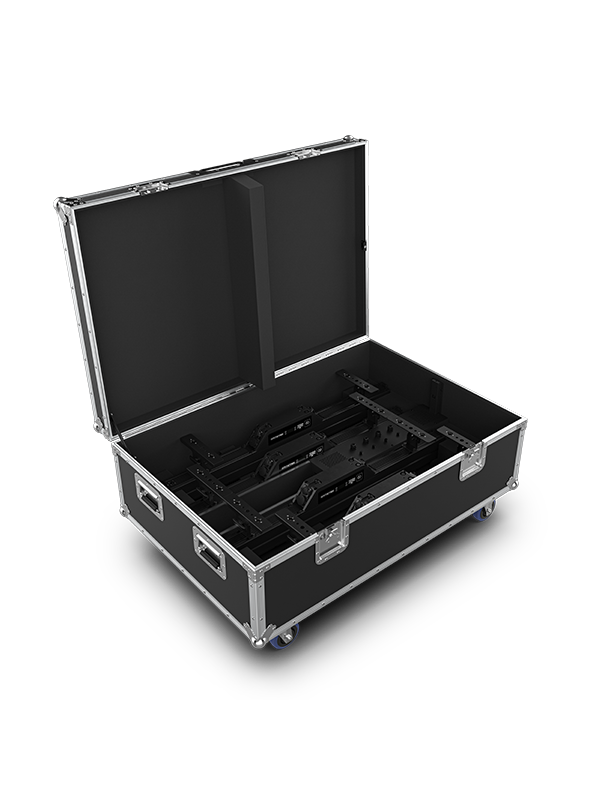

• Charging case designed to charge with the lid closed to save warehouse space
• 14 individual zones of control for pixel mapping effects
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Built-in IP65 5-pin DMX in/out allows for wired data
• Built-in Seetronic IP65 PowerKon input/output
• Control over RDM, DMX, CRMX, or RF
• Easy connection to WELL CONNECT box for ConnectFX app control
• USB-C port for convenient software updates
• Pressure equalizing M6 Gore valve
• Built-in safety cable attachment point
• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM Adjustment
• Included RF remote
• Included 4 pack charging case
• Included (2) glare shields

Specifications

Optical

• Light Source: 28 LEDs (RGBW) 13.2W, (516mA), 50,000 hours life expectancy.
• Color Temperature (range): 2600 to 10,000K
• Beam Angle: 16°
• Field Angle: 33.8°
• Cutoff Angle: 64.1°
• Lumens: 3854 lm (AC power)
• Illuminance: 1050 lux @ 5 m (AC power) Lumens:
• Lumens: 2210 lm (OFF battery setting)
• Illuminance: 601 lux @ 5 m (OFF battery setting)
• Lumens: 2319 lm (5-hour battery setting)
• Illuminance: 631 lux @ 5 m (5-hour battery setting)
• Lumens: 1437 lm (8-hour battery setting)
• Illuminance: 392 lux @ 5 m (8-hour battery setting)
• Lumens: 890 lm (12-hour battery setting)
• Illuminance: 243 lux @ 5 m (12-hour battery setting)
• Lumens: 548 lm (18-hour battery setting)
• Illuminance: 148 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 1000 Hz, 2000 Hz, 3000Hz, 4000Hz, 6000Hz, 25kHz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 39.4 x 7.9 x 6.4 in (1001 x 200 x 163 mm)
• Weight: 16.4 lb (7.4 kg)
• Weight (shipping weight): 186.3 lb (84.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast

Connections

• Power Connection: Edison (local) plug to Seetronic PowerKon IP65
• Power Input (fixture and charging case): Seetronic PowerKon IP65
• Power Output (fixture and charging case): Seetronic PowerKon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB-C

Control

• Control Protocol: DMX, RDM, CRMX, NFC, RF
• DMX Channels: 5,8,15,66,85
• Modes/Personalities: 6 personalities (5ch,8ch,15ch,66ch,85ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Single unit

• Power Linking: 17 units @ 120 V; 30 units @ 208 V; 32 units @ 230 V
• Power and Current: 84 W, 0.70 A @ 120 V, 60 Hz
• Power and Current: 82 W, 0.40 A @ 208 V, 60 Hz
• Power and Current: 83 W, 0.37 A @ 230 V, 50 Hz

4 Pack case

• Power Linking: 4 units @ 120 V; 7 units @ 208 V; 7 units @ 230 V
• Power and Current: 348 W, 2.90 A @ 120 V, 60 Hz
• Power and Current: 343 W, 1.68 A @ 208 V, 60 Hz
• Power and Current: 344 W, 1.53 A @ 230 V, 50 Hz

Battery

• Battery type: Lithium Nickel Cobalt AL (Li) (NiCoAL)
• Rechargeable: Yes
• Battery Charge Time: 7 hours
• Battery Life: selectable: off, 5, 8, 12, 18 hrs

Certifications / Qualifications

• CE, UKCA, FCC, ROHS
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included

• (4) WELL BATTEN 14
• (1) 4 slot charging case
• (1) basic RF controller
• (4) Seetronic PowerKon IP65 power cords
• (8) Omega Brackets
• (8) glare shields
• (1) QRG
