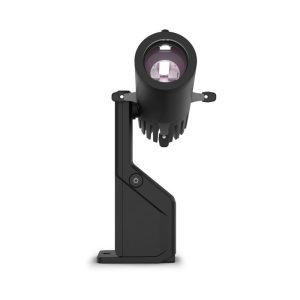

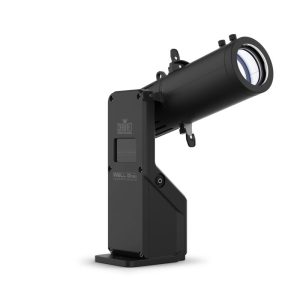

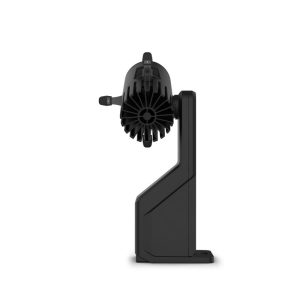

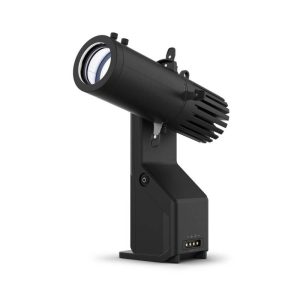

Chauvet Pro WELL Gobo

Features of the Chauvet Pro WELL Gobo:

• A completely wireless, IP 65 rated, battery powered Gobo Projector with a cool white LED and manual framing shutters that is controlled by W-DMX, IR remote (not included), or manually from the OLED display
• Zoom range of 20° to 41° making sizing patterns on surfaces easy
• Hard and soft focuses are easily achieved
• Works with both glass and metal E size gobos (1 mm max thickness)
• User selectable PWM settings to ensure flawless on camera operation
• M12 hole for easy clamp installation
• Up to 8 hours of operational time on full charge
• Recharging case can be power linked to save on power outlets
• Recharging case can be charged with the lid closed saving warehouse space

Specifications:

• OPTICAL
  • Light Source: 1 LED (CW) 25.2 W, (1.3 A), 6542 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 6542 K
  • Lumens: 2892
  • CRI: 79.1
  • Beam Angle:17.3° to 36.6°
  • Field Angle: 20° to 41°
  • Zoom Angle: 20° to 41°
  • Illuminance (17.3°): 1,487 lux @ 5 m
  • Illuminance (8 hr mode 17.3°): 1,487 lux @ 5 m
  • Illuminance (36°): 347 lux @ 5 m
  • Illuminance (P/S mode 36°): 165 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• DYNAMIC EFFECTS
  • Manual Tilt: 180°
  • Tilt Ranges: 0° to 180° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Manual
  • Focus: Manual
  • Strobe Rate: 0 to 25 Hz
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
• CONSTRUCTION / PHYSICAL
  • Dimensions (Single Unit): 10.11 x 6.81 x 12 in (257 x 173 x 305 mm)
  • Dimension (Charging Case): 27.64 x 17.24 x23.36 in (702mm x 438 x 593.4 mm)
  • Weight (Single Unit): 6.6 lb (3 kg)
  • Weight (Charging Case): 71 lb (32.21 kg)
  • Exterior Color: Black
  • Housing Material (Single Unit): Aluminum diecast
  • Housing Material (Charging Case): Aluminum alloy, wood
  • Gobo Size (Optional): €œE€: 37.5 mm (outside), 24 mm (image), 1 mm (max. thickness)
• CONNECTIONS
  • Power Connection: Edison (Local) plug to Seetronic Powerkon
  • Power Input: Seetronic Powerkon
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: W-DMX, IRC
  • DMX Channels: 1, 2, 3 or 6
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 9 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V
  • Power and Current (single unit charging): 42 W, .345 A @ 120 V, 60 Hz
  • Power and Current (charging case): 168 W, 1.38 A @ 120 V, 60 Hz
  • Power and Current (single unit charging): 48 W, 0.220 A @ 208 V, 60 Hz
  • Power and Current (charging case): 192 W, 0.880 A @ 208 V, 60 Hz
  • Power and Current (single unit charging): 49 W, 0.211 A @ 230 V, 50 Hz
  • Power and Current (charging case): 196 W, 0.844 A @ 230 V, 50 Hz
• BATTERY
  • Battery type: Lithium Ion
  • Rechargeable: Yes
  • Battery Charge Time: 8 hours
  • Battery Life: 5 hrs (high output), 8 (power saving mode)
  • Battery Power: 29.6, 4400 mAh
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use

WHAT’S INCLUDED

• (4) WELL Gobo
• Charging Case
• powerCON power cable with Edison plug
• (4) Gobo holder
