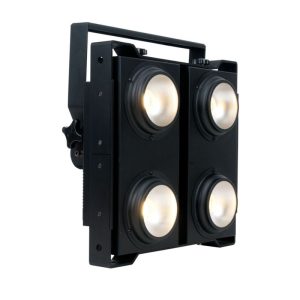

Elation CUEPIX Blinder WW4

Features of the Elation CUEPIX Blinder WW4:

High Power Long Life Warm White COB LEDs
62° Beam Angle / 100° Field Angle
Individual Control of Each COB Module
5 Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker FREE Operation for TV and FILM

Specifications:

SOURCE

(4) 100W Warm White 3,200K COB LEDs

100,000 Hour Average Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

12,300 LUX 1,143 FC @3.3’ (1M) / 3,200K

EFFECTS

Strobe

Dimming : 0% – 100% of Each COB Module

Variable Dimming Curves

CONTROL / CONNECTIONS

6 DMX Channel Modes (1 / 2 / 4 / 5 / 7 / 9)

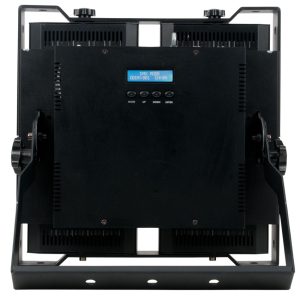

4 Button Control Panel and LCD Menu Display

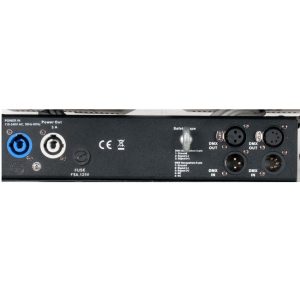

3pin and 5pin DMX In/Out

RDM* (Remote Device Management)  *Software Version 1.13 or Higher

Locking Power Cable In/Out

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 15.7″ (400mm)

Width: 6.9″ (174mm)

Horizontal Height: 17.4″ (441mm)

Weight: 21.0 lbs. (9.5kg)

ELECTRICAL / THERMAL

AC 100-240V – 50/60Hz

427W Max Power Consumption

14°F to 113°F (-10C to 45°C)

APPROVALS / RATINGS

CE | cETLus | IP20
