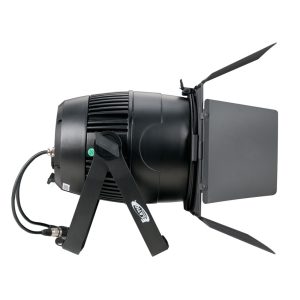

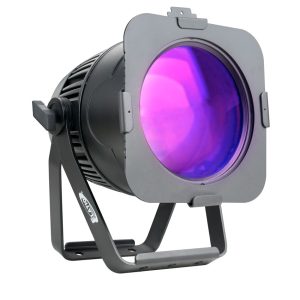

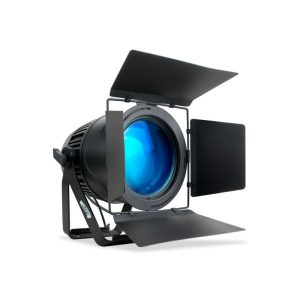

Elation FUZE PAR Z120 IP 120W RGBW COB Par
The IP65 rated FUZE PAR Z120 IP™ is a single source silent operating par luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM
Features of the Elation FUZE PAR Z120 IP 120W RGBW COB Par
- IP65 Rated
- 120W RGBW COB LED Par Luminaire
- 7° to 39° Motorized Zoom Range
- Silent Operation
- RGBW Color Mixing
- Dual Adjustable Yokes
- Multiple Unit Power Linking
- Flicker Free Operation for Broadcast TV and FILM
Specifications:
SOURCE
- 120W RGBW COB LED
- 100,000 Hour Average Lamp Life*
- *LED Life may vary depending on several factors including but not limited to Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 9,112 LUX 847 FC @9.8’ (3m) (7° Full ON)
- 428 LUX 40 FC @9.8’ (3m) (55° Full ON)
COLOR
- RGBW
EFFECTS
- RGBW Color Mixing
- 7° – 55° Beam Zoom Range
- Electronic Strobe, Dimming and Variable Dimming Curves
- 64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
- 12 DMX Channel Modes (13 Total Channels)
- 4 Button Touch Control Panel and LCD Menu Display
- RDM (Remote Device Management)

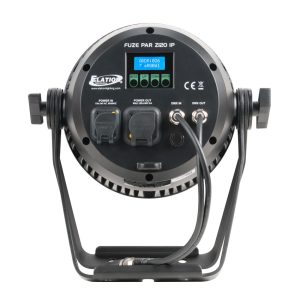

- IP Rated 5pin DMX and powerCON TRUE1 In/Out
SIZE / WEIGHT
- Length: 11.69″ (283.7mm)
- Width: 14.05″ (356.8mm)
- Vertical Height: 14.14″ (359.2mm)
- Weight: 19 lbs. (8.6 kg)
ELECTRICAL / THERMAL
- AC 110-240V – 50/60Hz
- 158W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
- CE | RoHs | IP65
INCLUDED ITEMS
- powerCON TRUE1 Power Cable
- Gel Frame

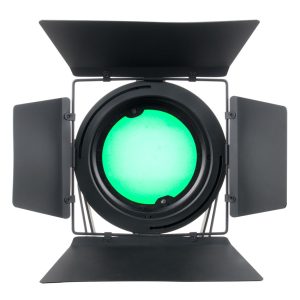

- Barn Door
