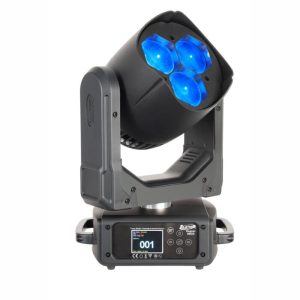

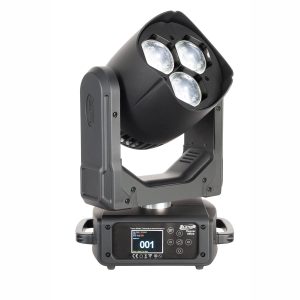

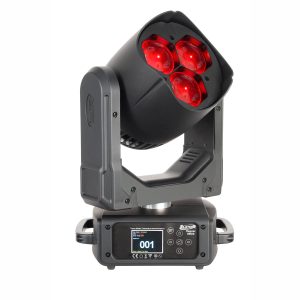

November 22, 2021Elation RAYZOR 360Z LED Wash Moving Head
The Elation RAYZOR 360Z LED is a brilliant compact beam moving effect luminaire with (3) 60W Osram™ RGBW LEDs. Features include 8° to 77° motorized zoom, fast and precise 16-bit continuous full 360° pan and tilt rotation, pixel control, adjustable color temperature (2,700K – 8,000K), electronic strobe, dimmer, and selectable dimming curve effects, DMX, RDM (Remote Device Management), and Art-NET support, 5pin XLR, RJ45 ethernet, and IP65 Locking Power Cable in/out connections, (7) button control full color 180° reversible menu display, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
Features
Compact Beam Moving Effect Luminaire with Zoom
(3) 60W Osram™ RGBW LEDs
8° to 77° Motorized Zoom and Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Linear Color Temperature Presets (2,700 – 8,000K)
Adjustable Refresh Rate Frequency and GAMMA
DMX, RDM, Art-NET, sACN Support
SOURCE
(3) 60W Osram™ RGBW LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
28,020 LUX 2,603 FC @6.6’ (2m) (8° Min Zoom) Full ON
545 LUX 51 FC @6.6’ (2m) (77° Max Zoom) Full ON
Motorized Zoom
Linear Color Temperature Presets (2,700 – 8,000K)
RGBW Color Mixing and Pixel Control
8 Color Presets and 8 Chase Macros
Electronic Strobe and Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (20 / 26 / 32)
360° Continuous Pan and Tilt Movement
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
(6) Button Touch Control Panel
8 / 16 Bit Resolution Adjustable Movement
Full Color 180° Reversible LCD Menu Display
5pin XLR DMX In/Out
RDM (Remote Device Management)
RJ45 ethernet In/Out (Art-NET, sACN)
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.0” (280.6mm)
Width: 7.9” (199.5mm)
Vertical Height: 16.6″ (422.1mm)
Weight: 17 lbs. (7.7 kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
300W Max Power Consumption
BTU/hr (+/- 10%) 930.93
APPROVALS / RATINGS
CE | IP20
Brand
Elation professional
Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
