Elation SIXPAR 100 7 x 12W RGBAW+UV LED Par

(1 customer review)

$599.00

UPC: 837874017762 SKU: SIXPAR-100 Category: Tags:
Elation

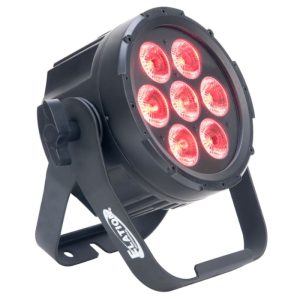

Elation SIXPAR 100 7 x 12W RGBAW+UV LED Par

The Elation SIXPAR 100 7 x 12W new indoor version features (7) 12W 6-IN-1 RGBAW+UV LEDs, 100,000 average hour LED life, 15° beam and 25° field angles, electronic strobe and dimming (0-100%), 5 variable dimming curve modes, dual yoke / floor stand, multiple unit power linking, RDM (remote device management), rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 89W max power consumption, and a multi-voltage universal auto switching power supply (110-250v).

FEATURES

  • 15° Beam 25° Field Angles
  • 5 Variable Dimming Curve Modes
  • Dual Yoke / Floor Stand
  • Multiple Unit Power Linking
  • RDM – Remote Device Management
  • Rugged Die-Cast Aluminum Exterior
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE
(7) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
12,850 LUX 1,194 FC @3.3’ (1m) (15° Full ON)
2,880 LUX 268 FC @6.6’ (2m) (15° Full ON)
1,401 LUX 130 FC @9.8’ (3m) (15° Full ON)
848 LUX 79 FC @13.1’ (4m) (15° Full ON)
571 LUX 54 FC @16.5’ (5m) (15° Full ON)

EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes

CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel / LCD Menu Display

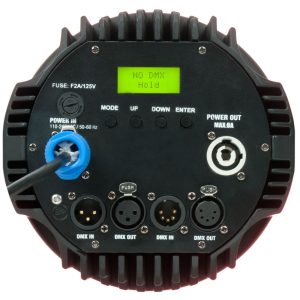

3pin & 5pin DMX and powerCON In/Out

SIZE / WEIGHT
Length: 10.1” (257mm)
Width: 4.9” (125mm)
Vertical Height: 9.6” (243mm)
Weight: 7.4 lbs. (3.3 kg)

ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
89W Max Power Consumption
Power Linking: 12pcs @110V / 25pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm

APPROVALS / RATINGS
CE | cETLus | IP20

INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)

INCLUDED ITEMS
powerCON Power Cable

Brand

Elation professional

Elation professional offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.

GTR Direct is a proud dealer for Elation professional Canada
Elation
