Elation SIXPAR 200 12 x 12W RGBAW+UV LED Par
Features of the Elation SIXPAR 200 12 x 12W RGBAW+UV LED Par 15° Beam 25° Field Angles 5 Variable Dimming Curve Modes Dual Yoke / Floor […]
Features of the Elation SIXPAR 200 12 x 12W RGBAW+UV LED Par
- 15° Beam 25° Field Angles
- 5 Variable Dimming Curve Modes
- Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- RDM – Remote Device Management
- Rugged Die-Cast Aluminum Exterior
- Flicker Free Operation for TV and FILM
Specifications:
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
22,250 LUX 2.067 FC @3.3’ (1m) (15° Full ON)
5,600 LUX 520 FC @6.6’ (2m) (15° Full ON)
2,500 LUX 232 FC @9.8’ (3m) (15° Full ON)
1,360 LUX 126 FC @13.1’ (4m) (15° Full ON)
930 LUX 86 FC @16.5’ (5m) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% – 100%
5 Variable Dimming Curve Modes
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel
LCD Menu Display

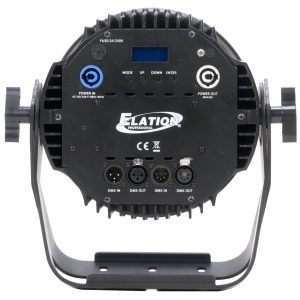

3pin & 5pin DMX and powerCON In/Out
SIZE / WEIGHT
Length:12.3” (313mm)
Width: 4.9” (125mm)
Vertical Height: 11.8” (300mm)
Weight: 18.0 lbs. (8.1 kg)
ELECTRICAL / THERMAL
AC 110-250V – 50/60Hz
150W Max Power Consumption
Power Linking: 8pcs @110V / 18pcs @240V
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION

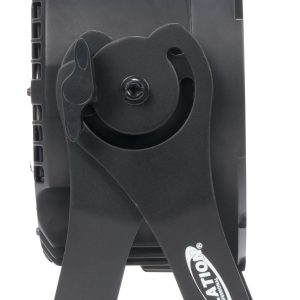

Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)
INCLUDED ITEMS
powerCON Power Cable
Brand
Elation professional
Elation professional Canada offers the stage lighting industry the most complete toolbox of conventional and intelligent LED lighting, video, and atmospheric effect products specifically designed for the Theatrical and Concert Stage, Rental, Production, Studio, Broadcast, House of Worship, Corporate AV, Exhibition, Night Club, Leisure, Theme Park, and Cruise Ship markets.
GTR Direct is a proud dealer for Elation professional Canada
