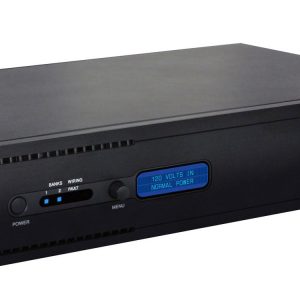

Furman F1000-UPS 1000VA 2RU Power Supply

Features of the Furman F1000-UPS 1000VA 2RU Power Supply:

• Surge Protection
• Furman’s exclusive SMP technology provides the highest level of surge & spike protection available.
• Noise Filtration
• LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.
• Voltage Protection
• Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.
• Diagnostic Lights
• LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.
• Standard Voltage Regulation
• Standard Voltage Regulation delivers a stable 120 volts of AC power to protect equipment from problems caused by AC line voltage irregularities.
• Battery Backup
• 1000VA Simulated Sine Wave battery backup protects your data in a power failure allowing the opportunity to save your applications, programs, and shut-down the system gracefully.
• Infrared Control
• Learning IR control allows you to program connected equipment for shut-down sequencing.
• RS-232 Protocol
• RS-232 Open Source Code Protocol provides custom programming for connected equipment.
• 12 AMP Rating
• 12 Amp rating featuring a circuit breaker for added protection.

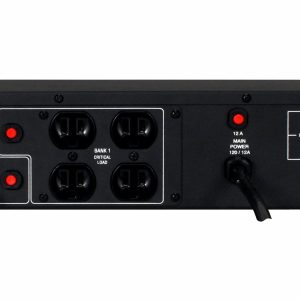

• Eight Total Outlets
• 8 rear panel outlets.
• Critical Load Management
• Critical Load Management prioritizes the allocation of temporary power to connected equipment.
• Power Control Software
• Easy to use power control software assists you in maximizing the performance of your UPS.

Specifications:

General

• Family F-Battery
• Line Voltage 120 (Volts)
• Number of Outlets 8
• Number of Isolated Banks 0
• Outlet Descriptions All 8 outlets surge protected, linearly filtered, and backup
• Rack Mountable Yes
• Rack Ears Included Yes

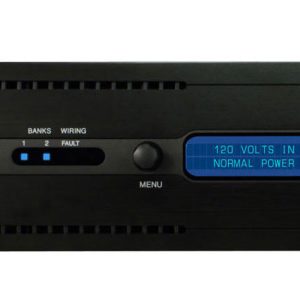

• Front Panel Meter(s) LCD Displays status and menu navigation items
• Front Media Light(s) No
• Control Remote control through RS-232 serial port
• AC Power Cord 10 ft, captive
• Dimensions 17″ W (19″ w/ rack ears) x 13″ D x 3.5″ H (4″ tall with feet installed)
• Weight 36 lbs.
• Battery Backup
• Input Frequency 57 – 63 Hz
• Regulation Capture Range 99 – 135V (Sensitive Mode)
  94 – 142V (Standard Mode)
• Output Frequency 60 Hz ± 1%
• UPS Output Capacity 1000VA, 600W @ 0.6pf
• Regulation Output Range 120V ± 5% (Sensitive Mode)
  120V ± 10% (Standard Mode)
• UPS Backup Time (Full Load) 3 minutes
• Transfer Time < 10ms

AC Protection

• AC Protection Technology Non-sacrificial SMP (Series Multi-Stage Protection)
• Under-Voltage Shut off 90V ± 5V
• Over-Voltage Shut off 150V ± 5V (fast rise)
  132 ± 5V (slow rise)
• Maximum Current Rating 12 (Amps)

Filtration

• Filtration Technology Linear Filtering Technology (LiFT)
• Filtration Rating 10 dB @ 10 kHz
  40 dB @ 100 kHz
  50 dB @ 500kHz
