Lab Gruppen CA1202 Commercial Amplifier

Features of the Lab Gruppen 2 x 120 Watt Commercial Amplifier

• 2 x 120 Watt amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation per output with switchable high-pass filter
• Energy Star* certified design conserves energy and drastically reduces operational cost
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Individual front panel master volume and bass/treble controls for each output
• Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
• Front panel power control button for direct access

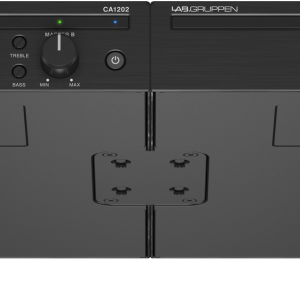

• Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
• Euroblock type amplifier input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise
• 10-Year Warranty Program*
• Designed and engineered in Sweden

Specifications:

Automatic Power On/Off

The CA1202 has a flexible power scheme with seamless and automatic power on/off based on the input signal, which reduces consumption when a signal is not present. With virtually zero configuration required, an energy smart and hassle-free amplifier system can easily be set up for hands-off operation. If the CA1202 is powered on but does not receive an input signal for 20 minutes, the system automatically enters sleep mode to reduce power consumption. As soon as the Auto Ramp circuit detects a signal, the system powers on and normal operation resumes. The amplifier can also be instantly forced into standby mode or awakened via the front panel power button.

Sublimely Simple Controls

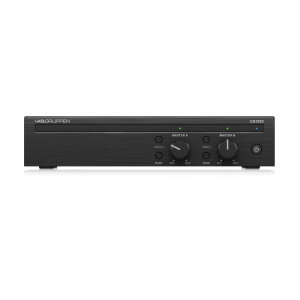

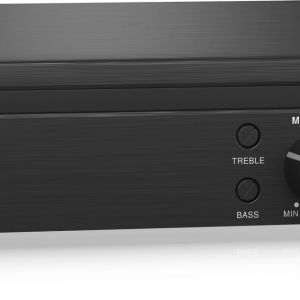

CA1202’s controls are sublimely intuitive, allowing the operator to quickly make adjustments. The front panel power button and Master volume knob are easily accessible, enabling virtually anyone to operate the system. Bass and Treble controls are also available for fine tuning – but require a tool when making changes.

Output Configuration

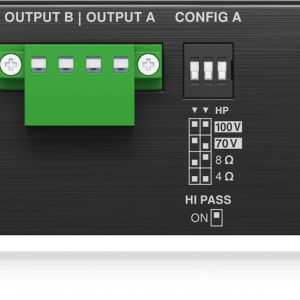

Intuitive configuration of the flexible output channels is provided directly adjacent to the rear panel Euroblock output connector with dipswitches, which allow selection of 100 V, 70 V, 8 Ω, or 4 Ω operation. This configures both the maximum voltage of the output and the gain through the device. An individual control engages the built-in high-pass filter, which should be used on all constant voltage systems to avoid saturation on transformer-enabled loudspeakers and to help maintain sound integrity.

Expandable Remote Control

The RJ45 receptacle on the rear panel opens up a broad range of remote control options, including the CRC-V Series of wall controllers and a stylish tabletop controller, the LAB.LEVEL. All can be interconnected via inexpensive and readily-available Ethernet cabling.

System Scalability

Commercial installs vary widely in scope and often grow and change over time. The CA1202 is part of a family of products that provides both single and dual zone products that are perfect for building out a system to any size. With its individual zone volume and remote control capabilities, the CA1202 is an ideal building block for a dynamic and scalable system solution.
