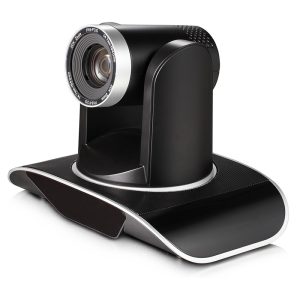

Minrray UV950AS-20-ST-WR camera 20x optical zoom, HDMI output

Minrray UV950AS-20-ST-WR camera 20x optical zoom offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition.


SKU: MINRRAY - UV950AS-20-ST-WR Category: Tags:
Minrray logo Canada

Features of the Minrray UV950AS-20-ST-WR camera 20x optical zoom, HDMI output:

• Superb high-definition image
  UV950A employs 1/2.8 inch high quality CMOS sensor.
Resolution is up to 1920×1080 with frame rate up to 60 fps.

• Leading auto focus technology
Leading autofocus algorithm makes lens a fast, accurate and stable auto-focusing.

• Low noise and high SNR
Low noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is

also used to further reduce the noise, while ensuring image sharpness.

• Wide-range,quiet and quick Pan/Tilt mechanism
  By adopting step driving motor mechanism, UV950A camera works extremely quiet and moves smoothly.
• Audio input interface
  Support 16000,32000,44100,48000 sampling frequency and support AAC, MP3,  PCM audio coding.

• Multiple audio/video compression
  Support H.264/ H.264+ video compression; Support AAC, MP3 and PCM audio compression;

Support compression of resolution up to 1920×1080 with frame up to 60  fps and 2 channels 1920×1080

with 30 fps compression.
• Multiple network protocol
  Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server

(Wowza, FMS)

• Multiple IR remote control
  There is IR remoter and 2.4G wireless remoter for options. The 2.4G wireless remoter will not be

affected by angle, distance or IR interference. Support transparent transmission function.

• Wide application
Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine,

Interrogation and Emergency Command Systems.

• Low-power sleep function
Support low-power sleep/wake up, the consumption is lower than 400 mW under sleep mode.


Camera Parameter

Optical Zoom

12X f=3.9~46.1mm

20X f=4.7~94mm


1/2.8 inch high quality HD CMOS sensor

Effective Pixels

16: 9 2.07 megapixel

Video Format

ST interface video format

1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97

U3 interface video format

1) U3:1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30

2) U3 compatible with U2: 960X540P30; 640X360P30; 1280X720P10/15; 720X576P50; 720X480P60; 640X480P30; 352X288P30;

View Angle




F1.8 ~ F2.4

F1.6 ~ F3.5

Digital Zoom


Minimum Illumination

0.5Lux (F1.8, AGC ON)


2D & 3D DNR

White Balance

Auto/Manual/ One Push/ 3000K/ 4000K/5000K/6500K





Electronic Shutter





OFF/ Dynamic level adjustment

Video Adjustment

brightness, color, saturation, contrast, sharpness, B/W mode and gamma curve



Input/ Output Interface

Video Interfaces

UV950AS/M-12/20-ST-IR/WR Model: 3G-SDI, DVI(HDMI), LAN, 5G WiFi (optional)

UV950AS/M-12/20-U3-IR/WR Model: USB3.0, DVI(HDMI), LAN

Image Code Stream

Dual streams output

Video Compression Format

H.264, H.264+

Control Signal Interface

RS-232, Ring through RS232 output

Control Protocol

VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps

Audio Input Interface

Dual track 3.5mm linear input;

Audio Compression Format

AAC/MP3/PCM Audio compression

HD IP Interface

100M IP port(10 / 100BASE-TX); 5G WiFi (optional)

Support VISCA protocol control through IP port

Network Protocol


Power Interface

HEC3800 outlet (DC12V)

PTZ Parameter

Pan Rotation


Tilt Rotation

-30° ~ +90°

Pan Control Speed

0.1 ~100°/sec

Tilt Control Speed

0.1~ 45°/sec

Preset Speed

Pan: 100°/sec, Tilt: 45°/sec

Preset Number

255 presets (10 presets by remote controller)

Other Parameter

Supply Adapter

AC110V-AC220V to DC12V/1.5A

Input Voltage


Input Current



12W (max)

Store Temperature

-10℃ to +60℃

Store Humidity

20% –95%

Working Temperature

-10℃ to +50℃

Working Humidity








Remote Operation (IP port)

remote upgrade, remote reboot and remote reset


power supply,RS232 control cable, USB cable, remoter, user manual, warranty card

Optional Accessory

Installation bracket



SHENZHEN MINRRAY INDUSTRY CO.,LTD. was founded in 2002, a leading unified communication camera manufacturer that integrates Research, Development, Manufacturing and Sales.  Minrray is dedicated to providing customized and professional video communication solution to enterprise and business, government and public utility, distance education, telemedicine and broadcasting to improve organizational efficiency and convenience from its establishment.

Focusing on research and development, Minrray also insists on innovation and creation. Minrray solutions leverage the power of video communications to help people connect with one another seamless to achieve great cooperation. Minrray provides complete product portfolios from HD PTZ camera, 4K PTZ camera to educational auto tracking camera, integrated video conferencing endpoint, Android-based open platform endpoint, video conferencing room solution kit and etc.

Minrray always adheres to the development concept of quality first and green manufacturing. The production process strictly implements ISO9001 quality system and ISO14001 environmental management system standards. With independent dust-free factory, mechanical production equipment, professional and experienced talent and integrating human resources with a whole collection of management, operation and service, Minrray has realized production automation, IT management and professional personnel.

Minrray Canada products are widely used into various Video conferencing system, Collaboration system, Education System, Tele-medicine, Webcasting, Government Projects, Interrogation and Emergency command systems, Office system and so on. With Excellent Quality, High Cost Performance, and 1st Class services, we got trusted and good supported from customers worldwide.
