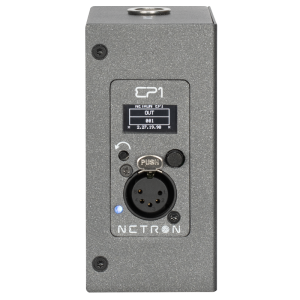

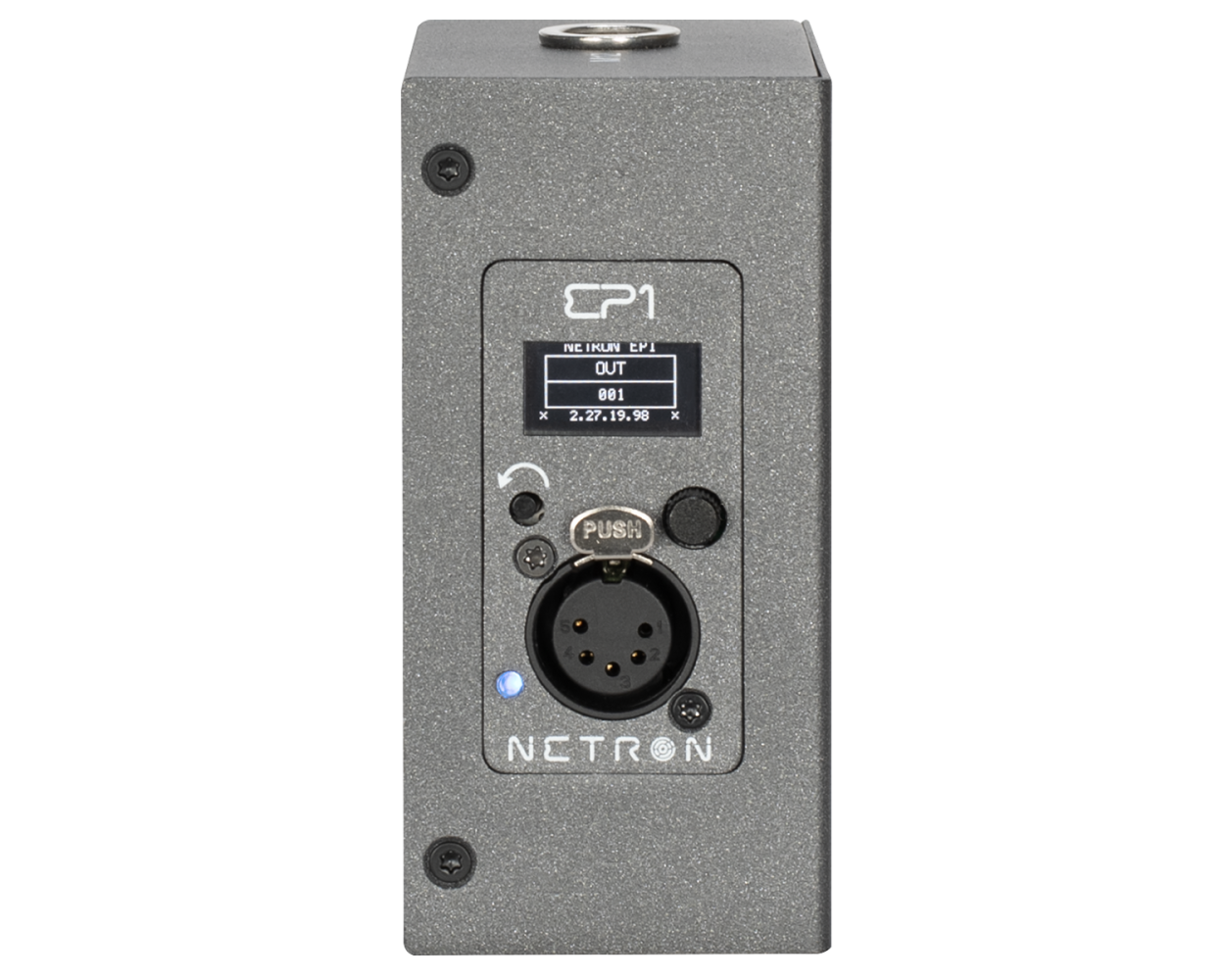

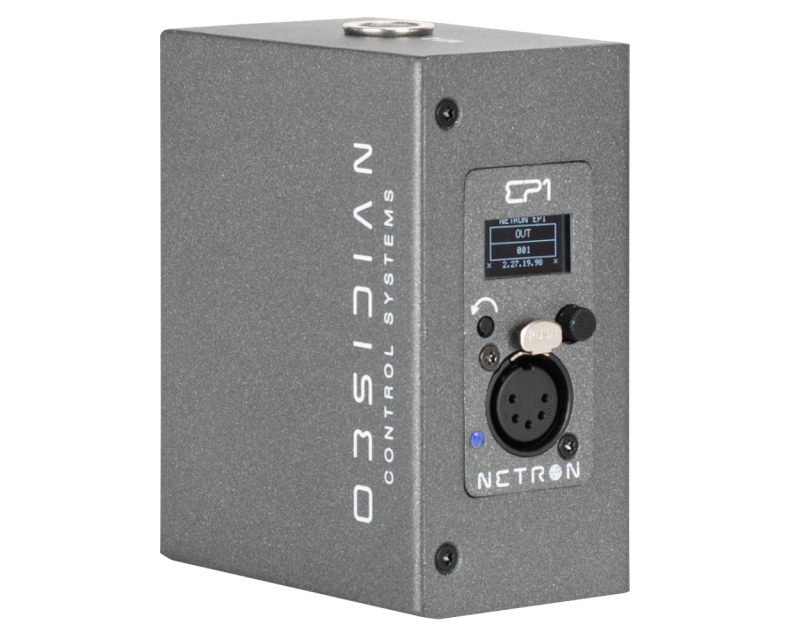

Obsidian Control NETRON EP1 Ethernet to DMX Gateway
NEW

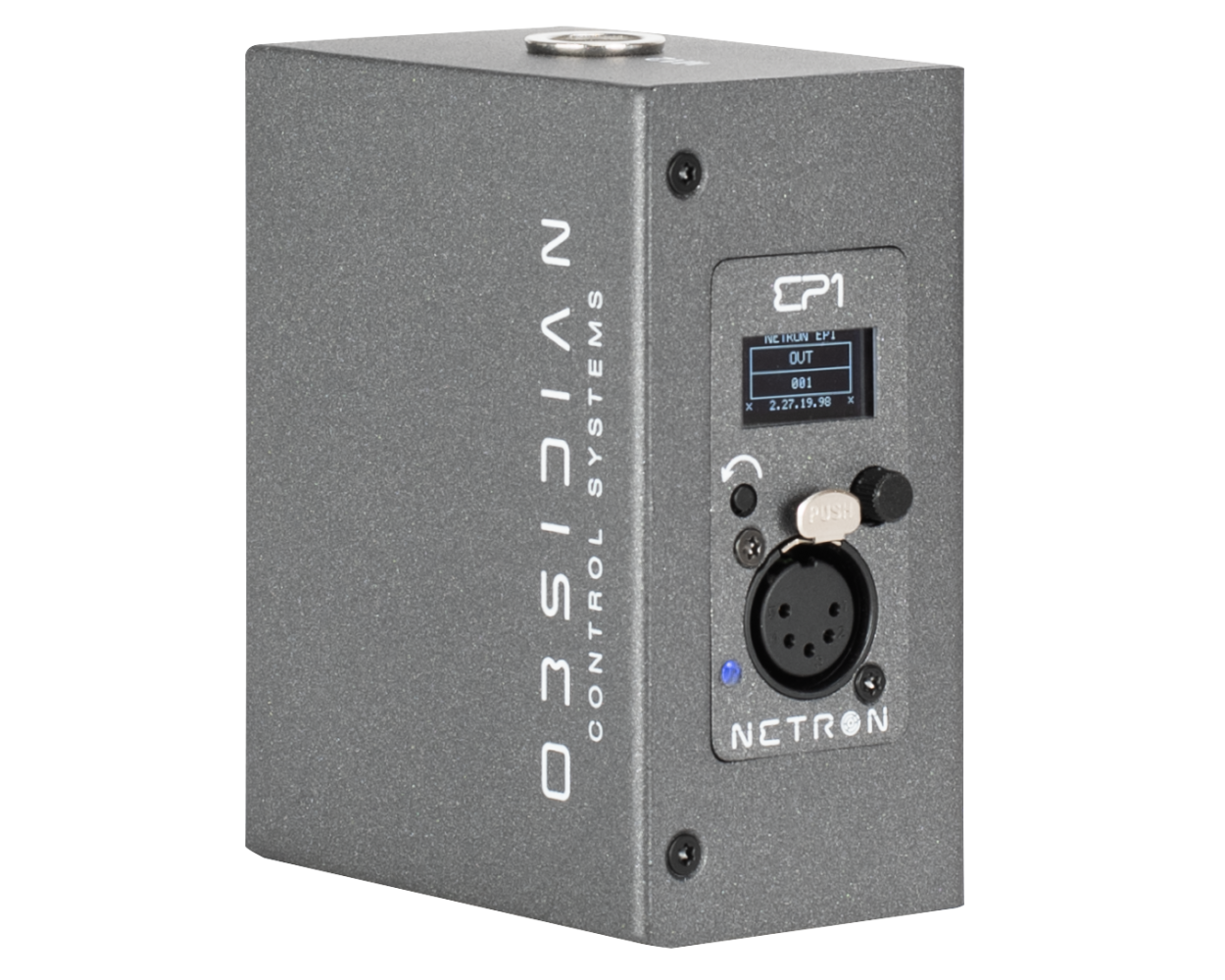

The NETRON EP1 is a compact Ethernet to DMX gateway with a single RDM compatible port designed for single gang wall mount, truss mount and standalone installations.
$609.00
Features of the NETRON EP1 Ethernet to DMX Gateway:
- RDM, ArtNet and sACN support
- Factory and user presets for plug and play setup
- POE or USB-C powered
- 1.3” OLED Display with rotary knob
- Remote configuration via internal webpage
- Powder-coated compact metal housing
- In-wall, Truss and Standalone mounting
- Unlocks ONYX NOVA 4-Universe License
Specifications:
- Mounting
- Standalone (backbox included)

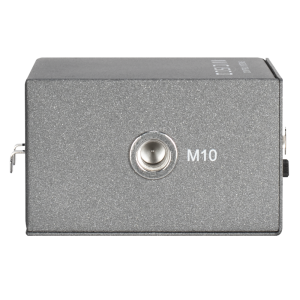

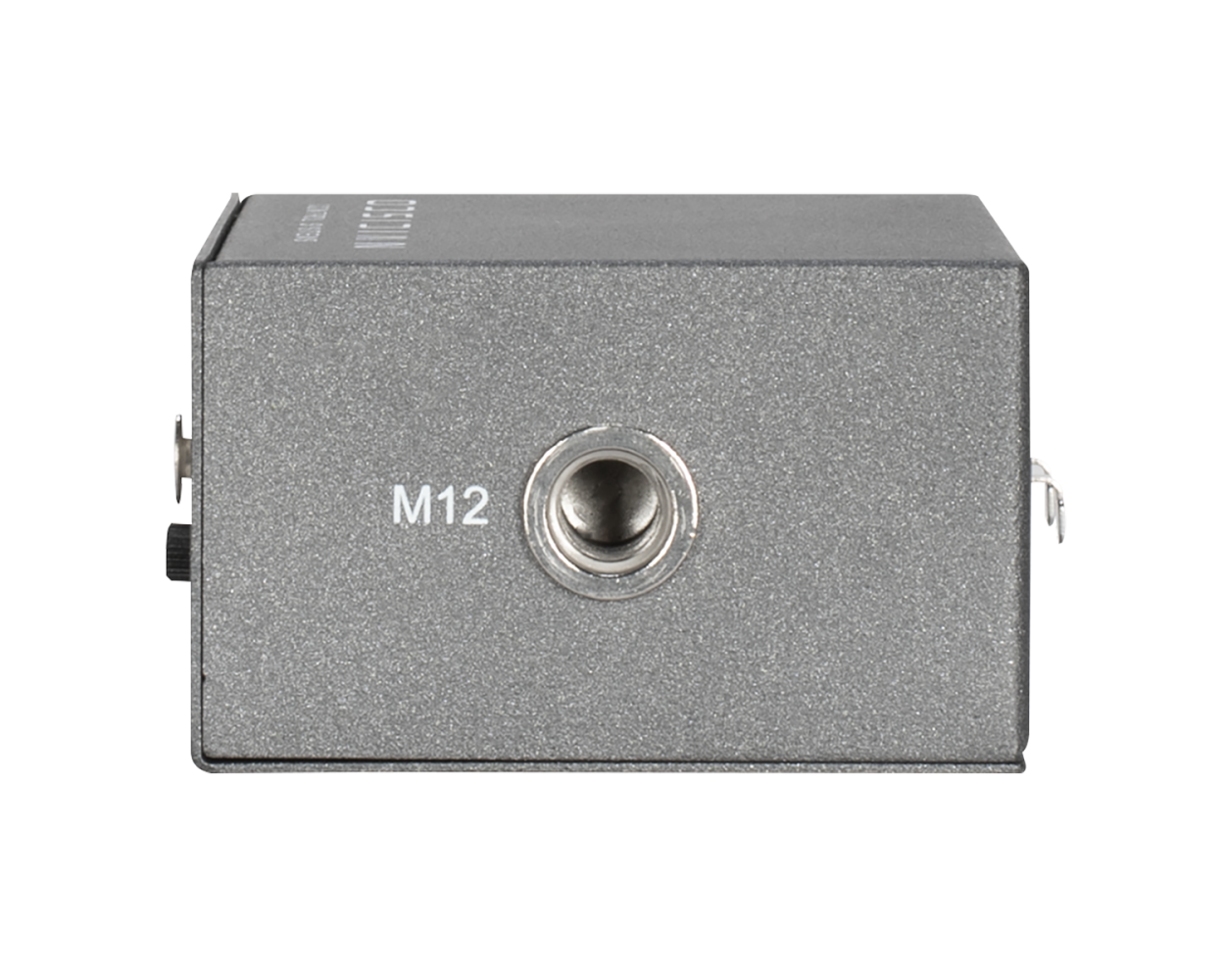

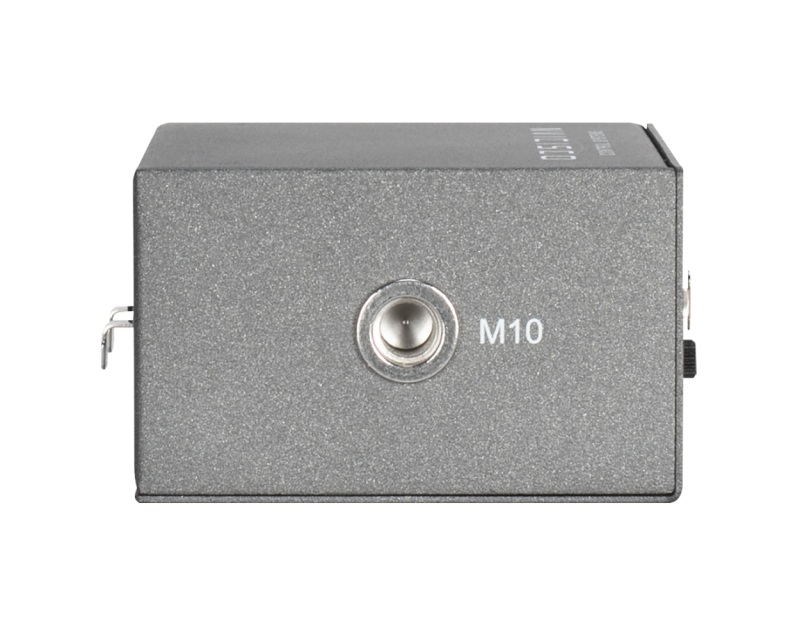

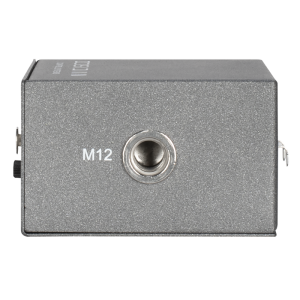

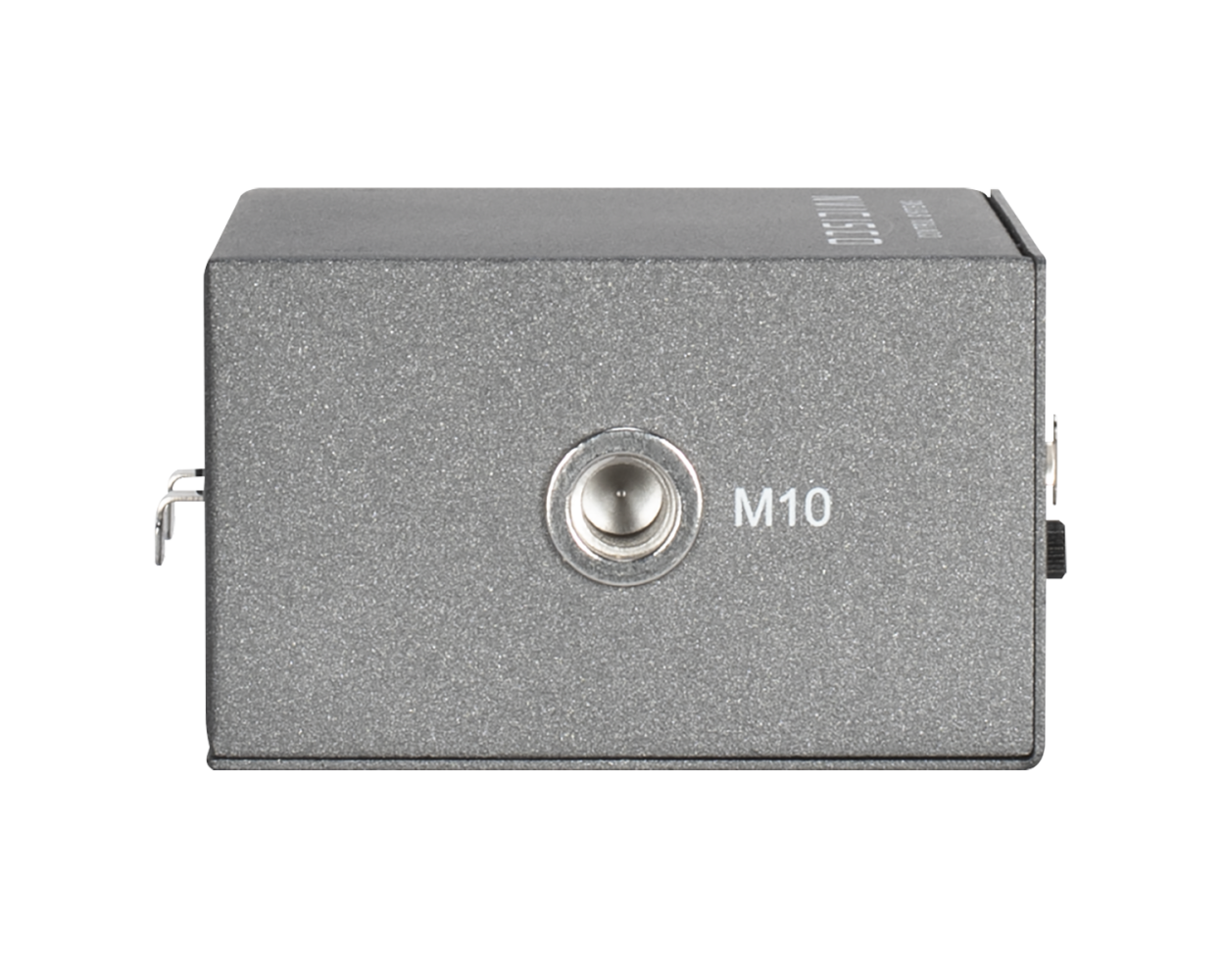

- Truss-mount (M10 + M12 mounting hole)
- In-Wall 1-Gang (US)
- Connections

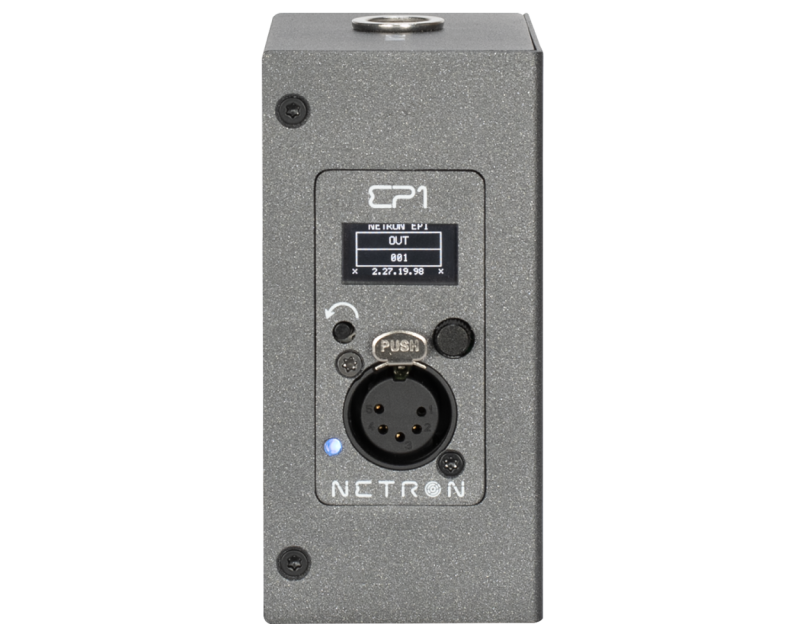

- Front:
- (1) 5pin DMX/RDM optically isolated port
- Bidirectional for DMX In and Output

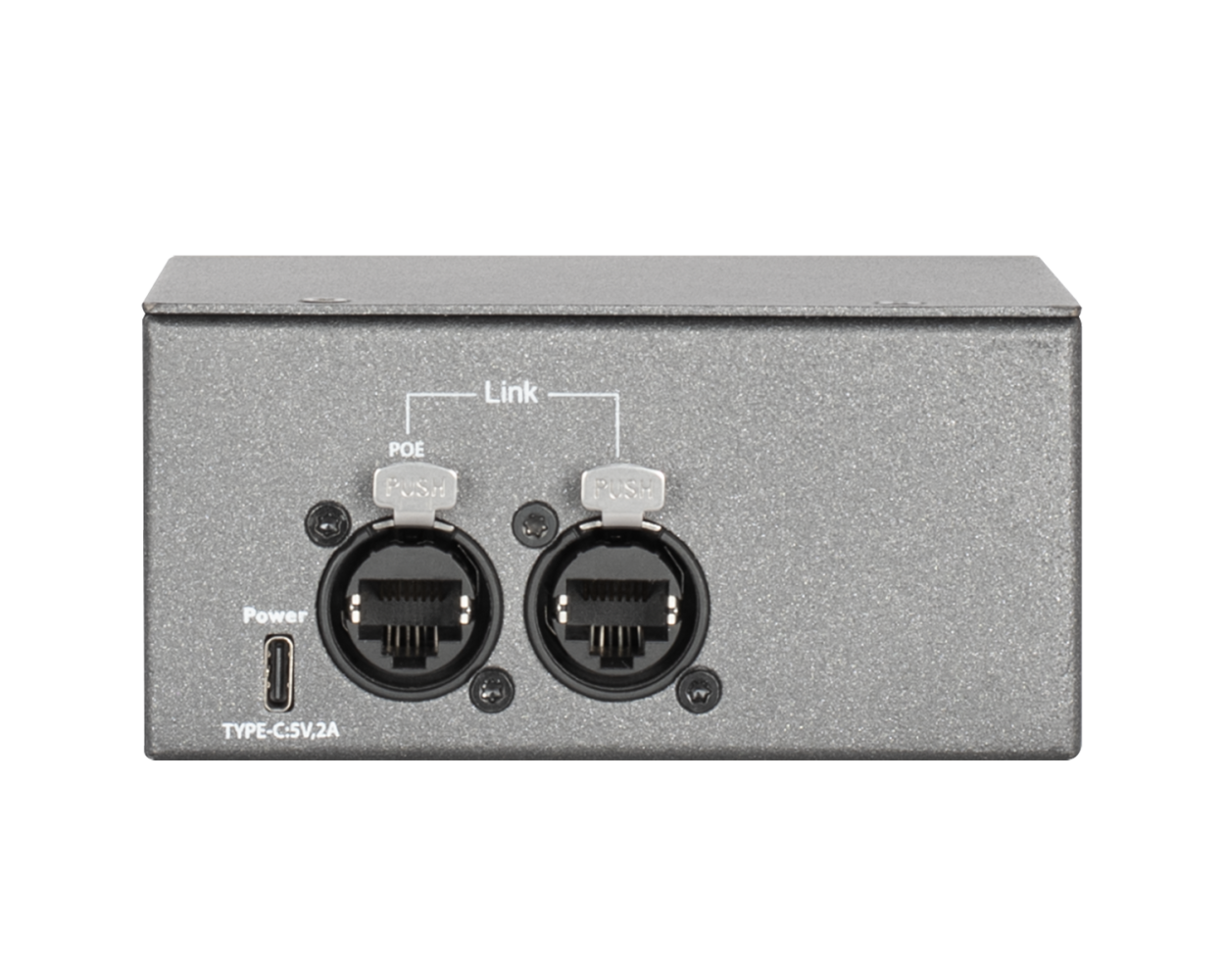

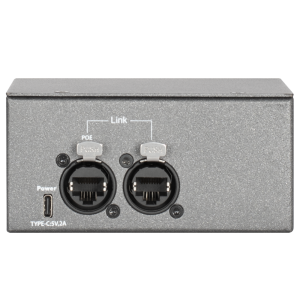

- Side:
- (2) Locking RJ45 Gigabit Ethernet (1xPOE)
- USB-C power option (5V, 2A)
- Physical
- Length: 3.5 in. (90mm)
- Width: 2.2 in. (55mm)
- Height: 4.5 in. (114mm)
- Weight: 1.54 lbs. (0.7kg)
- Electrical
- USB-C 5V
- POE 802.3af
- Power Consumption: 2.8W
- Approvals / Ratings
- CE / CETLUS / UKCA / IP20
