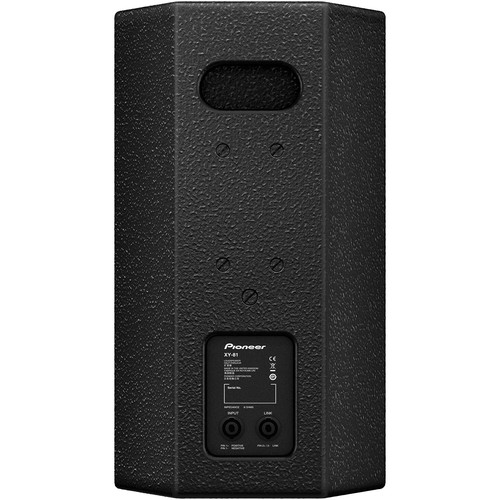

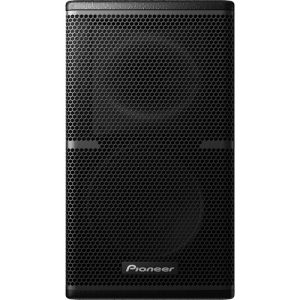

Pioneer DJ 8″ 2-Way Loudspeaker (Black)

Features:

• Two-way full range speaker with 8-inch LF driver and a 1-inch compression driver.
• Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments.
• Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation.
• Designed for fixed and mobile applications, with a wide array of flying options.
• Features top hats for quick set-up.
• NL4 INPUT and LINK OUT connections as standard.
• Robust enclosure made from premium multi-laminate birch plywood.
• Impact resistant textured paint finish.

Specifications:

• • Enclosure Type: Two-way passive, reflex-loaded
  • Frequency Response: 75 Hz to 20 kHz
  • Sensitivity (1 W/1 m): 91 dB
  • Nominal Impedance: 8 Ω
  • Power Handling: 350 W RMS, 700 W Program
  • Maximum SPL: 116 dB cont., 122 dB peak
  • Dispersion: 90 °H × 60 °V, rotatable

• • Driver Configuration:

• • 8 inch (200 mm) LF cone driver
  • 1-inch (25 mm) exit neodymium HF compression driver
  • Crossover: Asymmetric internal passive crossover
  • Connectors: 2 × Neutrik SpeakON™ NL4
  • Dimensions (W×H×D): 262 × 462 × 255 mm, (10.3 × 18.2 × 10-inch)
  • Weight: 12 kg (26.5 lbs)

• • Rigging and Hardware:

• • 8 × M8 threaded mounting points (4 top/4 bottom)
  • 1 × M8 threaded mounting points on rear
  • 4 × M6 threaded points on rear (for wall mount bracket)
  • 1 × flush handle on rear
  • 1 × 35 mm polemount socket
  • Grille: Hex punched steel
  • Enclosure: 15 mm (0.6-inch) birch plywood
  • Finish: Impact-resistant, Black semi-matt textured

• • Suggested Power Amplifier

• • Recommended : K2DSP
  • Minimum : M20DHDSP

• • Accessories:

• polemount socket cover
• (-W model only)
