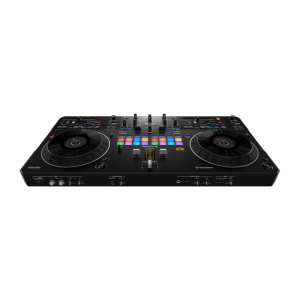

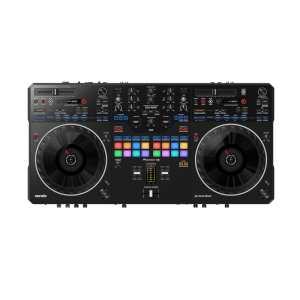

Pioneer DJ DDJ-REV5 2-Channel DJ Controller

Features of the DJ Controller:

• Compatible DJ Software
• Serato DJ Pro
• rekordbox
• Software System Requirements
• Visit serato.com for its specifications.
• Visit rekordbox.com for its specifications.
• Accessories
• DDJ-REV5
• AC adaptor
• Power cord
• USB cable
• Warranty (for some regions)
• Quick Start Guide
• Precautions for use
• Serato DJ Pro Pitch ’n Time DJ voucher

Specifications:

• Frequency Range: 20 – 20000 Hz
• Width: 736 mm
• Height: 73.4 mm
• Depth: 377.2 mm
• Weight: 6.2 kg
• Soundcard: 24 bit/48 kHz
• Signal-to-Noise Ratio: 110 dB
• Distortion: < 0.003 % (USB)
• Power Consumption: DC 5 V, 3 000 mA

Performance Control:

• Channels: 2
• Deck Control: 4 / Dual
• Trim knob: Yes
• Jog Wheel (Maximum Dimensions): 206 mm
• Feeling Adjust: Yes
• Filter fade: Yes
• Beat FX (Software): Yes
• Sampler: 8slot x 4bank
• Hot Cues: 8
• Pad Modes rekordbox
• Hot Cue
• Pad FX 1
• Beat Jump
• Sampler
• Keyboard
• Piano Play
• Beat Loop
• Sample Scratch (rekordbox)
• Pad modes Serato
• Hot Cue
• Roll
• Saved Loop
• Sampler
• Pitch Play
• Piano Play
• Stems
• Scratch Bank
• Saved Flip
• Slicer Loop
• Manual Loop: Yes
• Auto Loop/Auto Beat Loop: Yes
• Beat Jump: Yes
• Slip Mode: Yes
• Talkover Function: Yes
• Key Sync: Yes

Fader:

• Fader Start: Yes
• Channel Fader Start: Yes
• Crossfader Start: Yes
• Crossfader Curve Adjust: Yes

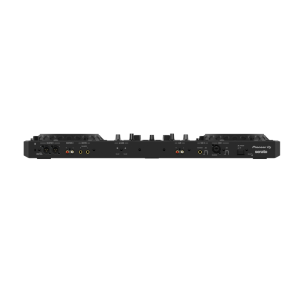

Terminals

• Inputs
• 2 MIC (XLR & 1/4 inch TRS Jack, 1/4 inch TRS Jack)
• 1 AUX (RCA)
• Outputs
• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 2 PHONES (1/4-inch stereo jack, 3.5-mm stereo mini-jack)
• USB
• 3 USB Type-C ports　(PC/Mac connection x 2, power supply x 1)
