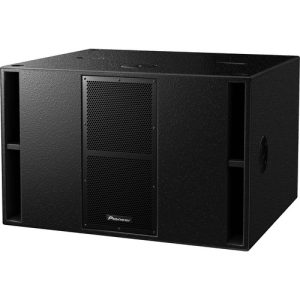

Pioneer Pro Audio XY-215S Quasi-Bandpass Subwoofer – Dual 15″

Features:

• A quasi-bandpass subwoofer with two 15-inch LF drivers.
• High-response deep bass as low as 42 Hz is delivered to reproduce a tight and punchy kick.
• Two drivers efficiently generate air vibration to boost radiation efficiency.
• Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81)
• NL4 INPUT and LINK OUT connections as standard
• Robust enclosure made from premium multi-laminate birch plywood

Specifications:

• • Enclosure Type: Single driver, reflex-loaded subwoofer
  • Frequency Response: 35 Hz to 150 Hz
  • Sensitivity (1 W/1 m): 97 dB (half space)
  • Nominal Impedance: 8 Ω
  • Power Handling: 1000 W RMS, 2000 W Program
  • Power Handling AES: 127 dB cont., 133 dB peak (half space)
  • Maximum SPL: 116 dB cont., 122 dB peak

• • Transformer taps:

• • 18 inch (460 mm) LF cone driver
  • Connectors: 2 × Neutrik SpeakON™ NL4
  • Dimensions (W×H×D): 590 × 643 × 650 mm (23.2 × 25.3 × 25.6-inch)
  • Weight: 52 kg (114.7 lbs)

• • Rigging and Hardware:

• • 4 × flush handles (2 left/2 right)
  • 1 × M20 polemount socket for mid/high enclosures
  • 4 × rubber feet (bottom) and 4 ×mating recesses (top)
  • 16 × M8 threaded points for 4 ×castors on rear
  • Grille: Hex punched steel
  • Enclosure: 18 mm (0.7-inch) birch plywood
  • Finish: Impact-resistant, Black semi-matt textured

• • Suggested Power Amplifier

• • Recommended : K10DSP
  • Minimum : K3DSP

• • Accessories:

• polemount socket cover
• (-W model only)
