ProX T-LS35C Stage Complete Portable Crank Up System Lighting Triangle Truss System with 3x 57″ Truss for 5ft 10ft 15ft Wide 10ft Height

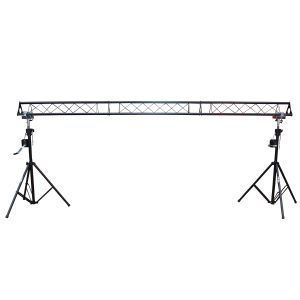

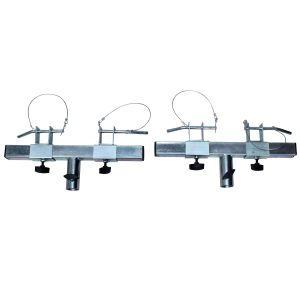

The ProX T-LS35C is a triangle crank truss system. This medium-duty truss lighting stand package includes two high-quality crank up stands & three 5FT triangle truss sections that create a near 5ft, 10ft or 15ft span. The stand can safely reach 9-10Ft. A pair of T-Adapters are included so you may easily mount your truss to the stands. You can mount up to 360 lbs evenly. Truss tubes are 35mm – 1 3/8″ in diameter. Truss sections are 6 inches in overall width and 57″ long.
Sold Separately: When purchasing a T-LS35C truss crank system. You will probably want the carry bags to haul your system around. These are high-quality bags, stitched with high-quality materials and will help you safely and securely transport your truss system around with ease. The carry bag T-LS35C-BAG is optional and is sold separately.

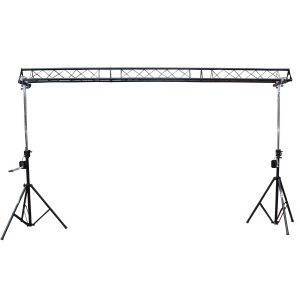

- You can create a 57″ / 5FT span all the way up to a 171″ ~ 14.25 ft span depending on your specific needs.

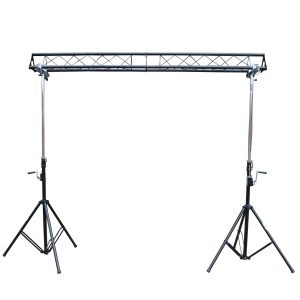

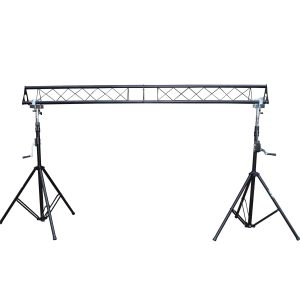

- Features crank-up system allowing 5FT, 10FT, or 15FT wide configurations
- Complete Portable Multi-Size Lighting Truss System

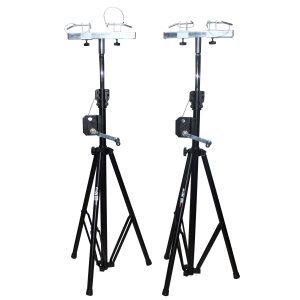

- Incl two high-quality 10ft crank-up stands and Truss T-Bars

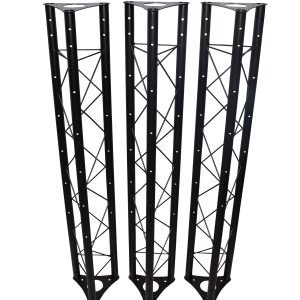

- Set of (3x) 57″ medium-duty triangle Bolted Truss.
- Truss pipes are 1.5″ in diameter. Truss sections are 6 inches in overall width.
- Holds up to 360 lbs evenly distributed.
Shipping Dimensions (sent in 2 separate boxes):
BOX#1: 3 Truss Pieces: 57.5″ x 24″ x 11″ – 43lbs
BOX#2: 2 Crank stands: 59″x 16″ x 10″ – 55lbs
Product Actual Weight: 92LBS
Exercise caution when loading this or any ProX truss system. Be sure to evenly distribute your fixtures or equipment for safety.
Always use a safety cable or chain on all mounted fixtures.
SAFETY INSTRUCTIONS
To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Â Observe all warnings and usage instructions in the full manual.
Basic Usage:
- Ensure that the stand is positioned on hard stable surface, in suitable location, on firm ground and clear of overhead obstacles.
- Stabilize legs before lifting the tower or any load.
- When outdoors, secure the tower with braces or cables, in case of wind.
- Check the cable, it should not show damaged or flattened areas nor broken strands.
Using the Winch:
- For Lifting the tower, turn the winch handle clockwise.
- For lowering the tower, turn the winch handle counter-clockwise.
Safety Notes:
- Loading on truss and stands should comply with rated weights.
- Lock all the safety mechanisms (safety pins, knobs)
- Loads must be centered & balanced on each lifting unit.
- Safety chains must be installed on each item attached to unit.
- Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
- During transport, close all the sections and lock the lifting carriage.
- Do not attempt to move the stand when loaded or in extended position.
Service Notes:
- Servicing and repairs must be made by qualified persons.
- Cable, pulleys and telescopic masts must be inspected before each use. Any damaged cable must be replaced immediately.
- Annual inspection by an authorized technician is suggested.

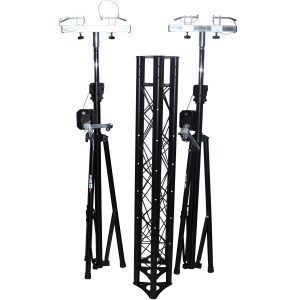

Package Contents
- T-LS35C-STAND (1) Â Â Pair of Two 9.5 Ft 3.5 M Triangle Truss DJ Lighting Crank Up Stands
- T-LS35C-TRUSS (1) Â Â Set of Three 57 inch 5ft Universal Lighting Stand Triangle Truss Sections 5FT 10FT 15FT
