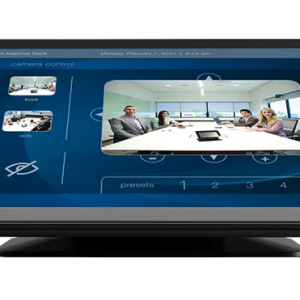

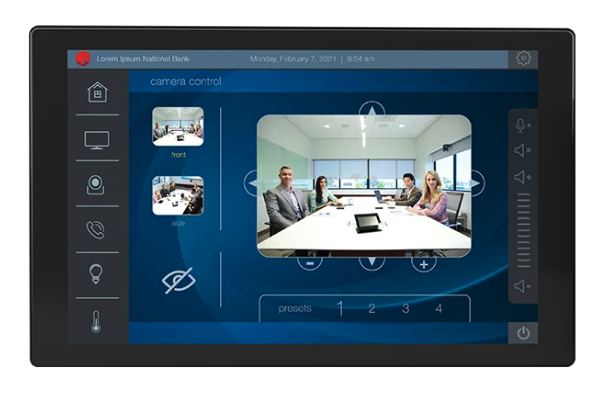

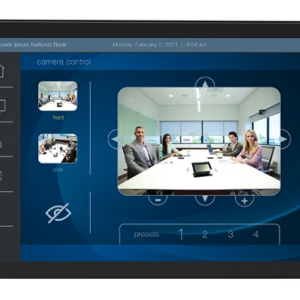

Q-SYS TSC-101-G3 High Definition Touchscreen Controller – In-Wall Mount
NEW
Q-SYS TSC-101-G3 is a high-performance, 10.1-inch network touch screen controller designed for seamless integration within the Q-SYS Ecosystem. It features a projective capacitive (PCAP) multi-touch surface with a 24-bit color display, offering a resolution of 1920 x 1200 pixels and a brightness of 380 nits.
$0.00
Features of the Touchscreen Controller:
- Projective capacitive (PCAP) multi-touch surface with 24-bit color display
- High-resolution display: 1920 x 1200 pixels with 380 nits brightness
- Power over Ethernet Plus (PoE+) for simplified single-cable installation
- Universal mounting options for US and European wall and junction boxes
- Operates in portrait or landscape orientation
- Enhanced onboard processor for improved screen transitions and future-ready for upcoming Q-SYS video features
- Customizable RGB LED status indicators on the sides of the touchscreen
- Integrated proximity sensor wakes the screen on approach; ambient light sensor adjusts screen brightness
- Fully customizable user control interface (UCI) creation with Q-SYS UCI Editor
Specifications:
- Display Type: Projective capacitive (PCAP) multi-touch, 24-bit color
- Resolution: 1920 x 1200 pixels
- Brightness: 380 nits
- Panel Dimensions (H x W x D): 6.2 x 9.97 x 1.54 inches (158.5 x 253.2 x 39.1 mm)
- Viewable Screen Size: 10.07 inches (255.8 mm) diagonal
- Power: Power over Ethernet Plus (PoE+), Class 4

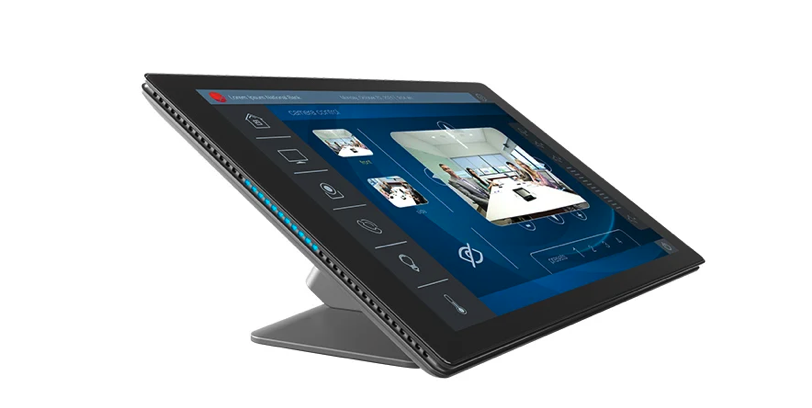

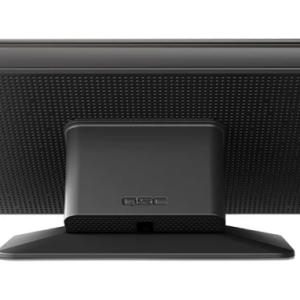

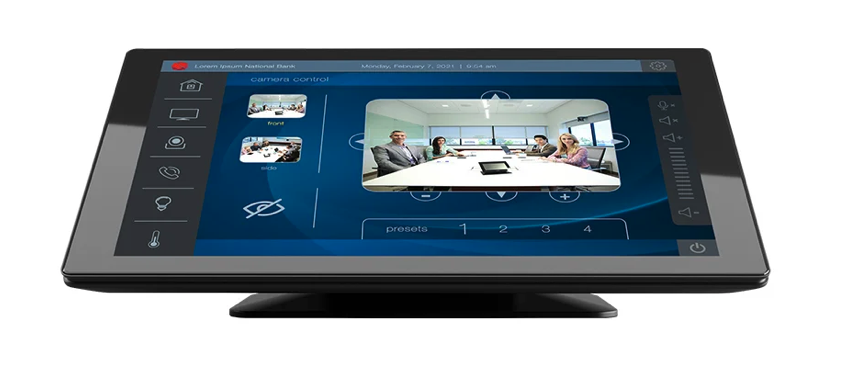

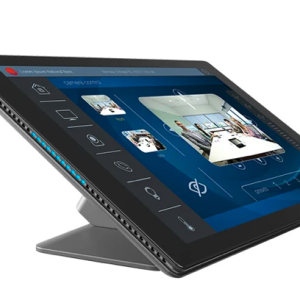

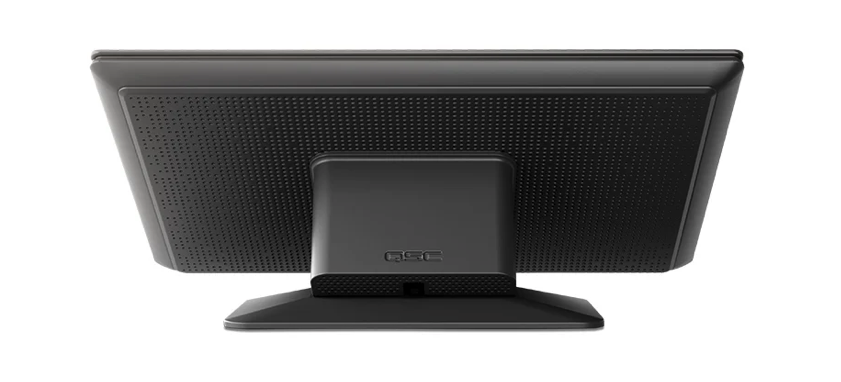

- Mounting Options: Wall mount with included accessories; table top with optional TSC-710t-G3 accessory
- Orientation: Vertical or horizontal on wall; horizontal only on stand
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- 1.9 lbs (0.87 kg)
