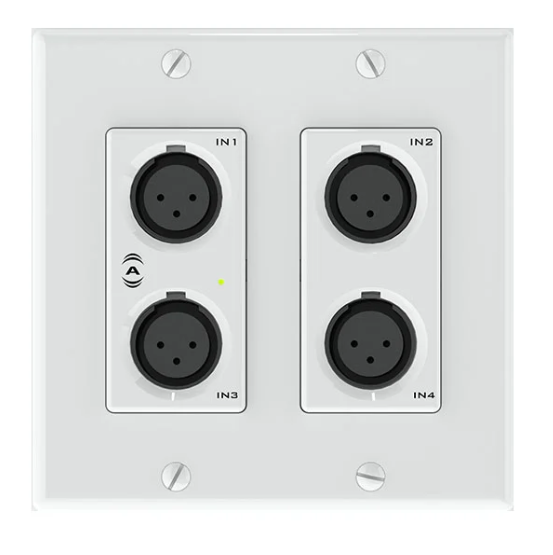

Q-SYS unDX4I 4×2 mic/line I/O Dante Wall Plate

Features of the Wall Plate:

• Dante Domain Manager ready
• Four balanced XLR mic/line inputs with software-selectable gain settings (-18 dB, -3 dB, +25 dB, +40 dB)
• Two balanced line outputs on Phoenix depluggable connectors
• 802.3af compliant PoE powered
• +48 V phantom power per channel, software selectable
• Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design

Specifications:

• Audio Inputs: 4x XLR (balanced and RF filtered)
• Input Gain: -18 dB, -3 dB, +25 dB, +40 dB (software selectable)
• Maximum Input Level: +20 dBu @ -18 dB gain; +6 dBu @ -3 dB gain; -23 dBu @ +25 dB gain; -38 dBu @ +40 dB gain
• Phantom Power: +48 V, software selectable
• Audio Outputs: 2x balanced line level on 3-pin depluggable Phoenix connector
• Output Attenuation Range: 0 to -60 dB, 1 dB increments (software controlled)
• Maximum Output Level: +20 dBu at 0 dB attenuation
• Dante Network: Standard Ethernet, single RJ-45 connector, 100 Mbps, supports 44.1 kHz and 48 kHz sample rates
• Power: 802.3af PoE powered
• Dimensions (H x W x D): 4.5 x 3.5 x 1.5 inches (114 x 89 x 38 mm)
